GD32VF103 User Manual

384

Mode

Description

Data pin usage

BDEN = 1

BDOEN = 1

SRB

Slave reception with

bidirectional connection

MSTMOD = 0

RO = 0

BDEN = 1

BDOEN = 0

MOSI: Not used

MISO: Reception

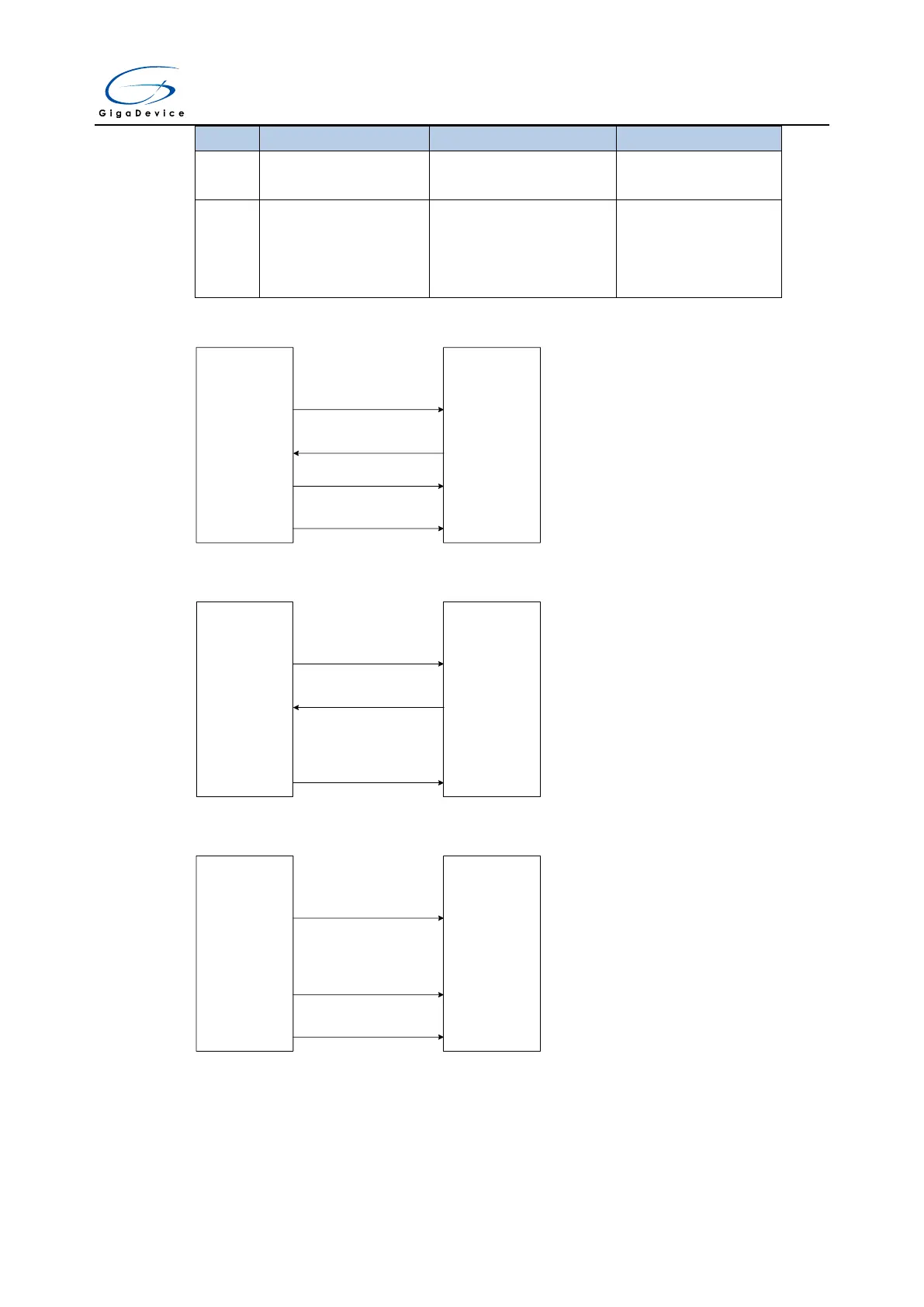

Figure 18-3. A typical full-duplex connection

Master

MFD

MISO

MOSI

SCK

NSS

Slave

SFD

MISO

MOSI

SCK

NSS

Figure 18-4. A typical simplex connection (Master: Receive, Slave: Transmit)

Master

MRU

MISO

MOSI

SCK

NSS

Slave

STU

MISO

MOSI

SCK

NSS

Figure 18-5. A typical simplex connection (Master: Transmit only, Slave: Receive)

Master

MTU

MISO

MOSI

SCK

NSS

Slave

SRU

MISO

MOSI

SCK

NSS
