GD32VF103 User Manual

322

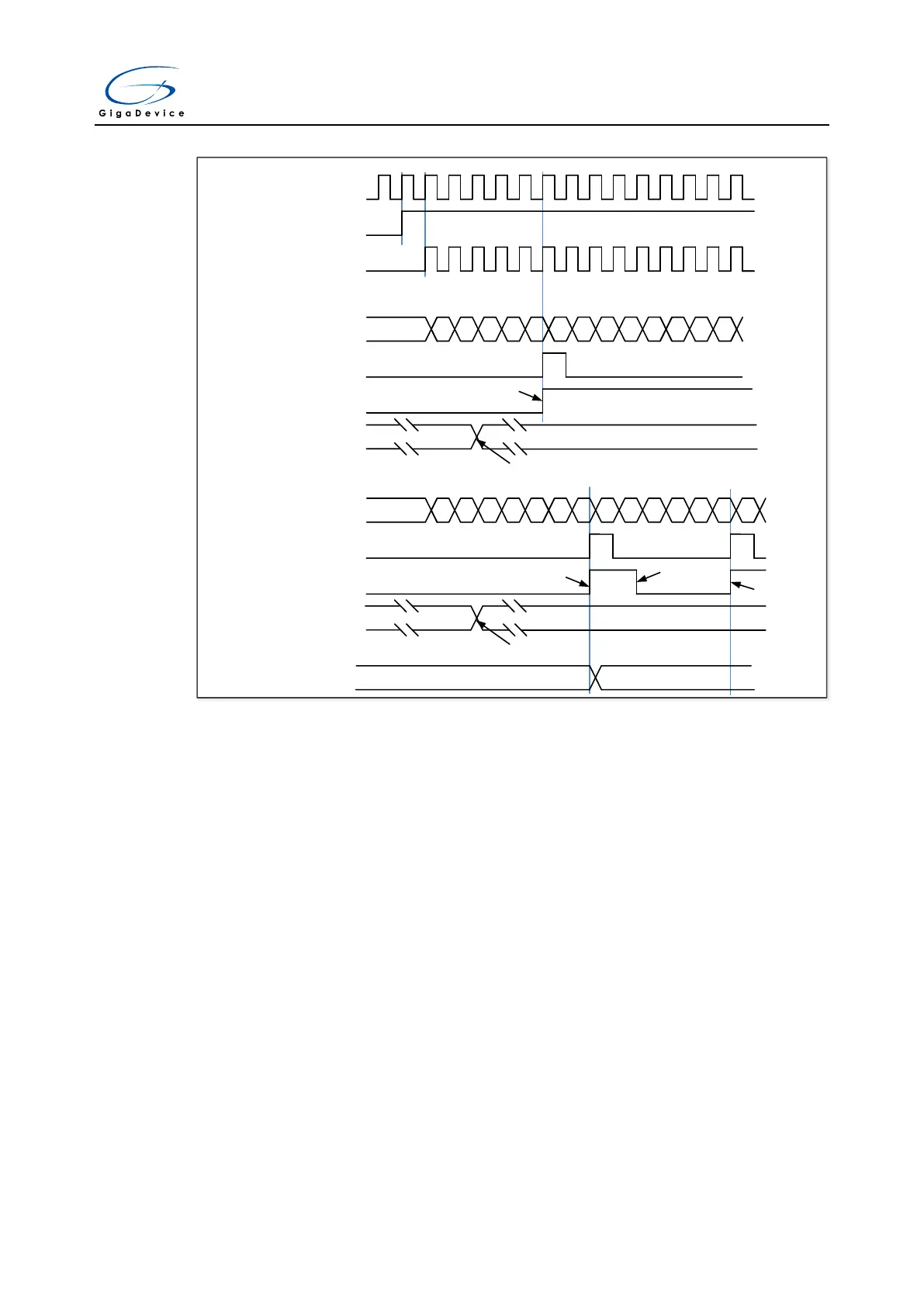

Figure 15-56. Timing chart of up counting mode, change TIMERx_CAR ongoing

TIMER_CK

CEN

CNT_CLK(PSC_CLK)

CNT_REG

5E 5F 60 61 62 63

00 01 02 03 04

05 06 07

Update event (UPE)

Update interrupt flag (UPIF)

Auto-reload register

change CAR Vaule

CNT_REG

5E 5F 60 61 62 63

64 65 00 01 02

62 63 00

Update event (UPE)

Update interrupt flag (UPIF)

Auto-reload register

change CAR Vaule

65 63

Auto-reload shadow

...

Hardware set

Software clear

Hardware set

ARSE = 0

ARSE = 1

Timer debug mode

When the RISC-V core halted, and the TIMERx_HOLD configuration bit in DBG_CTL register

set to 1, the TIMERx counter stops.
