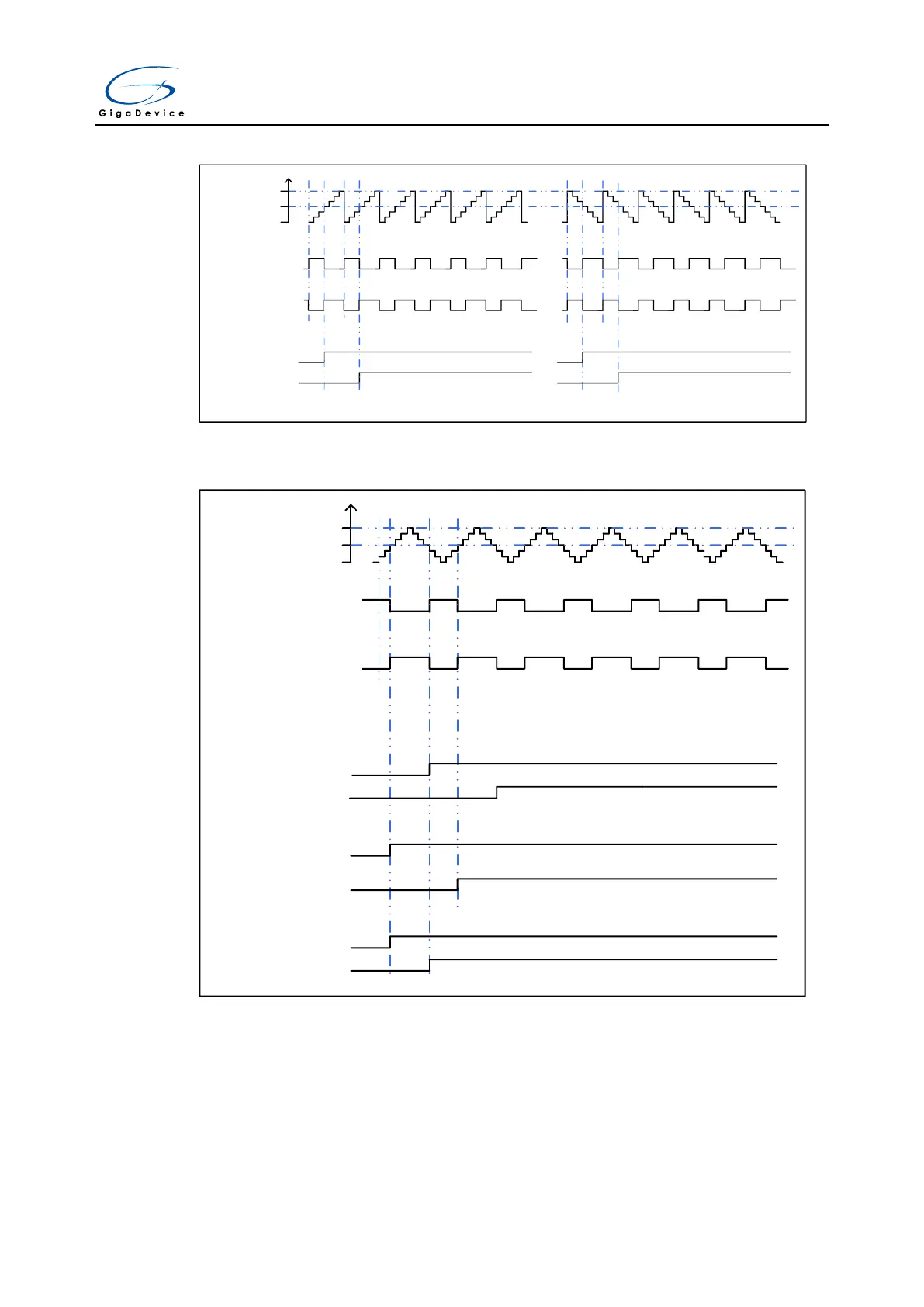

Figure 15-44. EAPWM timechart

CHxVAL

CAR

PWM MODE0

PWM MODE1

Cx OUT

Interrupt signal

CHxIF

CHxOF

Figure 15-45. CAPWM timechart

CHxVAL

CAR

PWM MODE0

Cx OUT

PWM MODE1

Cx OUT

Interrupt signal

CHxIF

CHxOF

CAM=2'b01 down only

CAM=2'b10 up only

CHxIF

CHxOF

CAM=2'b11 up/down

CHxIF

CHxOF

Channel output prepare signal

When the TIMERx is used in the compare match output mode, the OxCPRE signal (Channel

x Output prepare signal) is defined by setting the CHxCOMCTL filed. The OxCPRE signal has

several types of output function. These include, keeping the original level by setting the

CHxCOMCTL field to 0x00, set to 1 by setting the CHxCOMCTL field to 0x01, set to 0 by

setting the CHxCOMCTL field to 0x02 or signal toggle by setting the CHxCOMCTL field to
