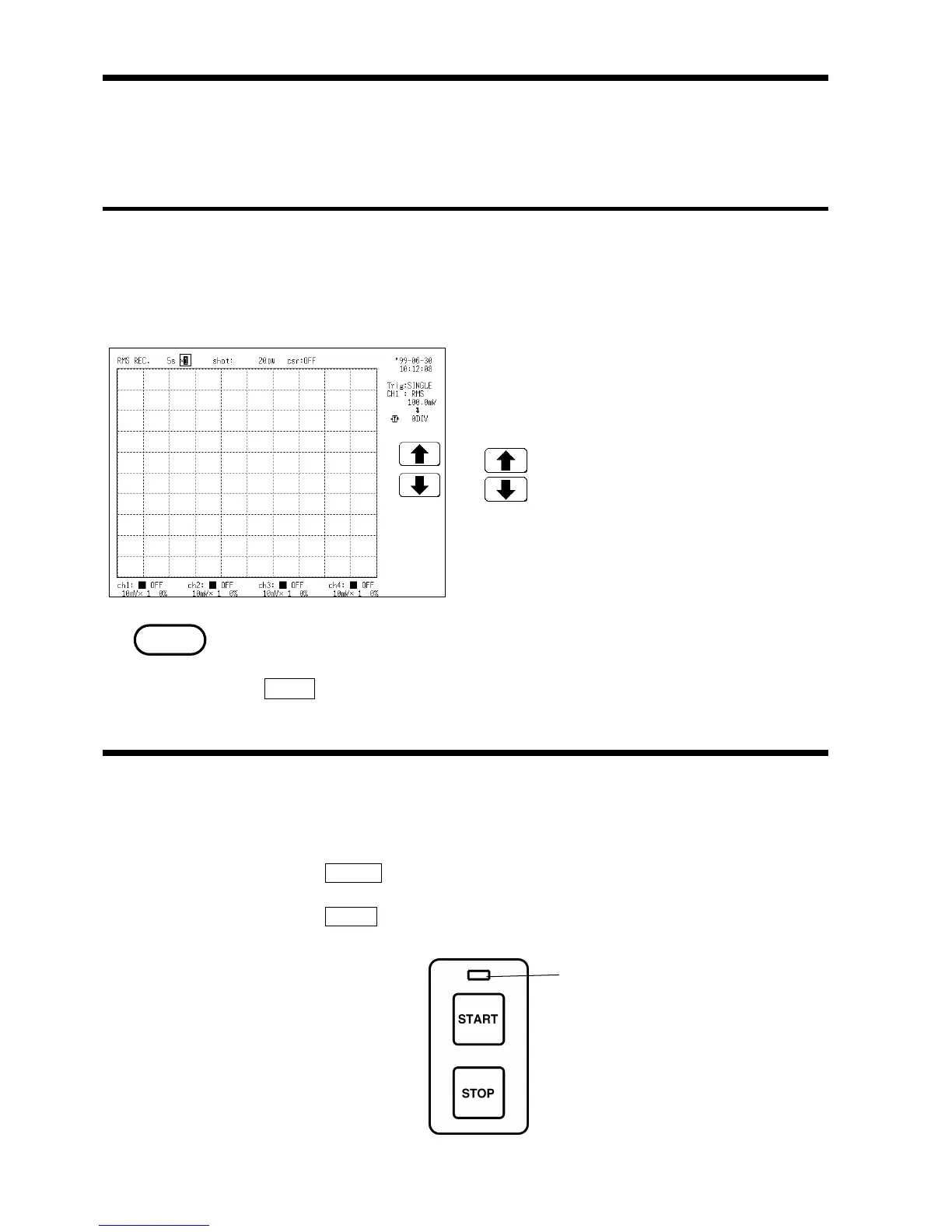

6.3 Settings on the Display Screen
────────────────────────────────────────────────────
6
.3.1 Setting Compression Along the Time Axis
NOTE
LED
Lights during measuremen
t
6
.3 Settings on the Display Screen
6
.4 Start and Stop Measurement Operation
Explains the setting items on the Display screen.
・The compression ratio along the time axis can be set.
・By compressing the waveform, an entire change can be promptly apprehended.
Method 6-19
1. Move the flashing cursor to the position
shown in the figure on the left.
2. Use the function keys to select the
compression ratio.
: Ratio up
: Ratio down
The compression factor can be changed also after measurement is completed.
Reference The HELP key can be used to check which position within the entire
recording length is occupied by the currently shown waveform (see Section
3.1.7).
Method
1. Press the START key to initiate measurement or set the unit to trigger
standby.
2. Press the
STOP key during measurement to stop the measurement.
(see Section 3.1.4.)
