Hioki 8835-01 - 8939 Strain Unit

22
────────────────────────────────────────────────────
2.4 Probe Connection
────────────────────────────────────────────────────
2
.4.3 8939 STRAIN UNIT
CAUTIO
N
・Connect only the sensor to the conversion cable supplied with the 8939
STRAIN UNIT.
・To disconnect the conversion cable, always unlock the plug and pull out the
cable.

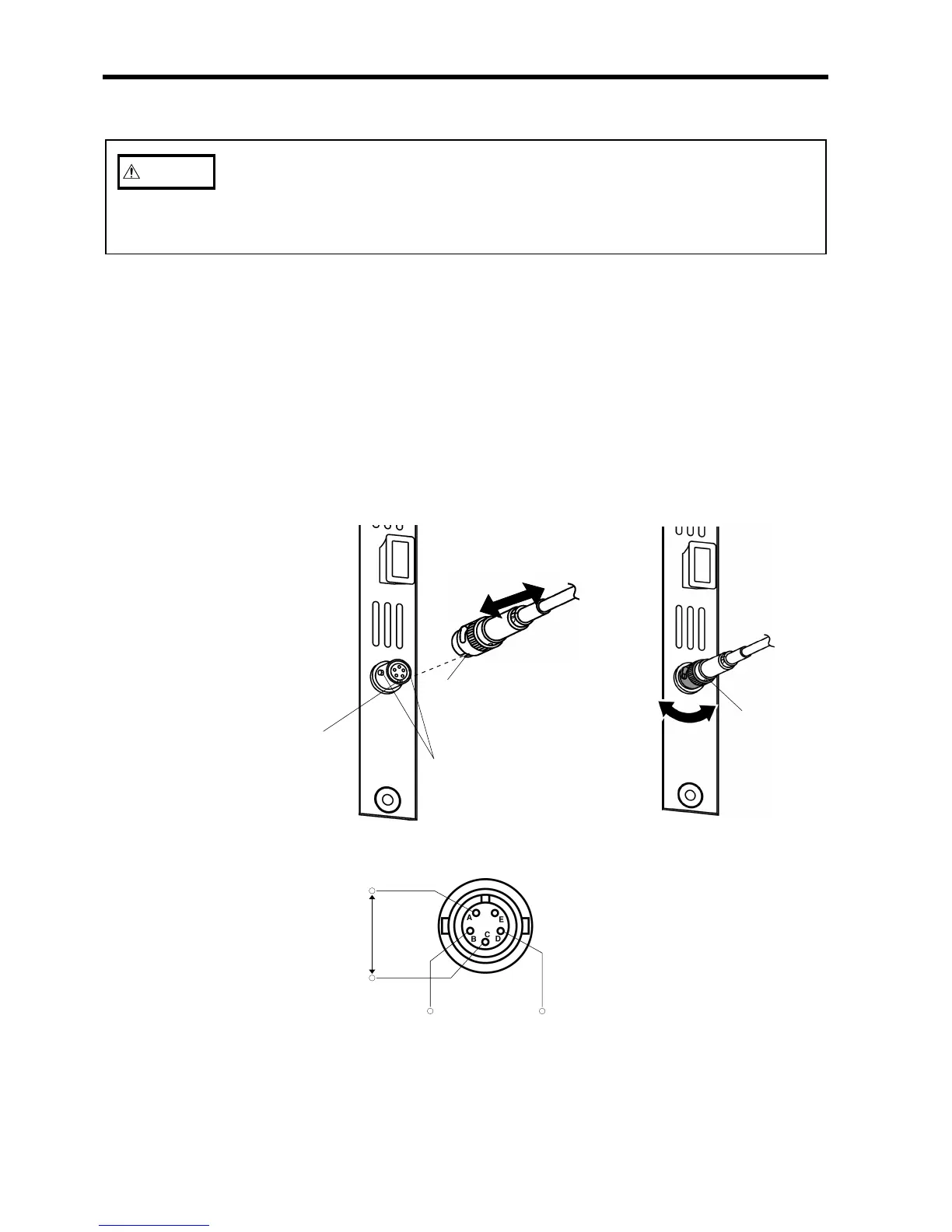

Projection on the unit connector
Cutout on the conversion cable
Fixing guide
Connector ridge
B
ridge voltage：2
V
(Apply voltage)
−
＋
＋
−
Input voltage
Connecting to the main unit
1. Align the projection on the unit connector with the cutout on the conversion
cable, and insert the plug into the connector.
2. Turn the fixing guide (the colored area in the figure below) so that it engages
with the connector guides on the unit, fully insert the fixing guide, and turn it
clockwise to lock the plug.
3. To remove the conversion cable from the unit, turn the fixing guide (the
colored area in the figure below) counterclockwise to unlock the plug, and pull
out the plug.
Connector
