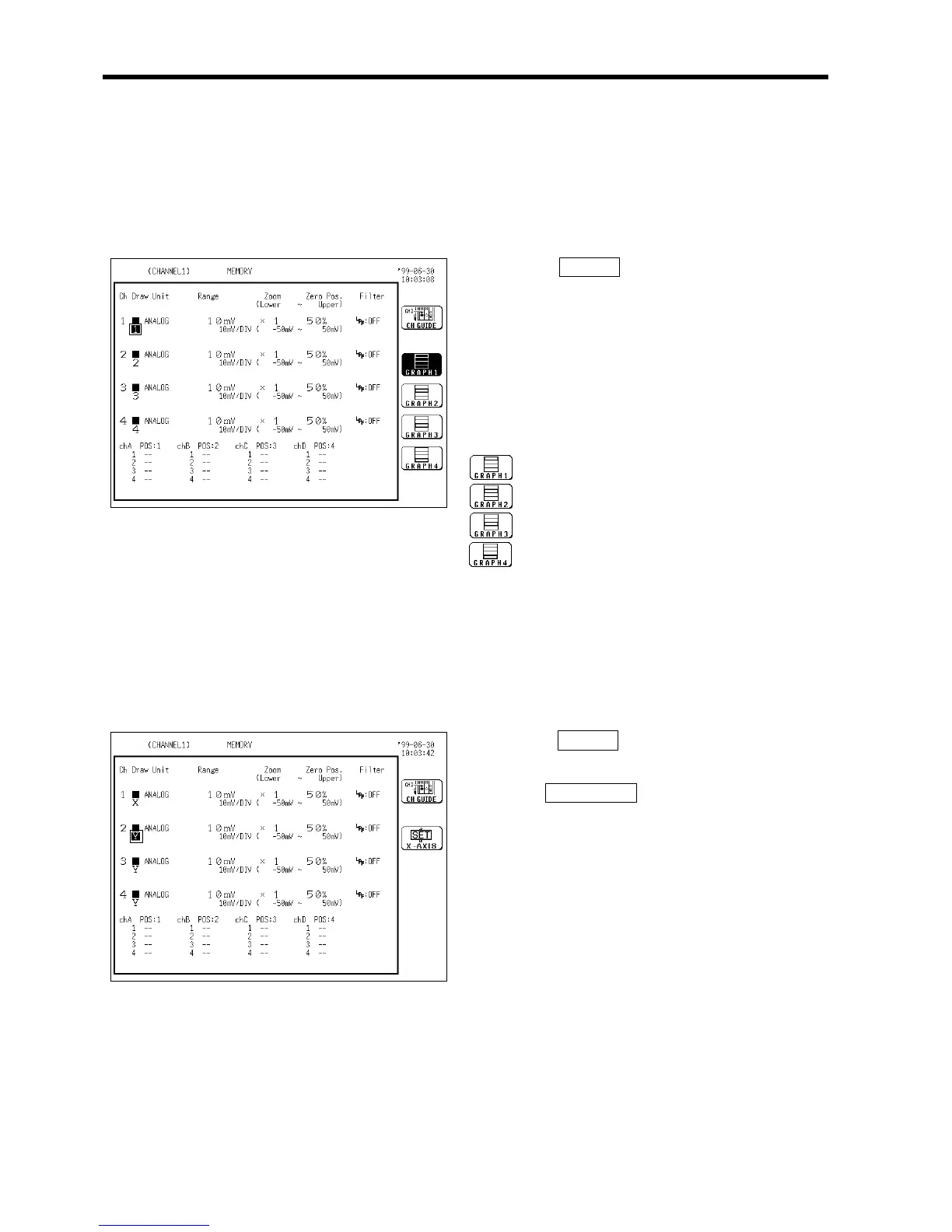

.3.2 Setting the Waveform Display Graph Type
Set which graph type to use when display format has been set to DUAL or
QUAD screen display on the STATUS 1 screen.
(1) DUAL or QUAD screen display
Method
1. Press the CHAN key to call up the
CHANNEL 1 screen.
2. Move the flashing cursor to the point shown
in the illustration at left.
・The illustration shows the setting for CH1.
・Settings for CH2 - CH8 should be made in
the same way.
3. Use the function keys to select the graph.
: Display the waveform on graph 1.
: Display the waveform on graph 2.
: Display the waveform on graph 3. (*)
: Display the waveform on graph 4. (*)
*: when the quad screen display is selected
(2) X-Y combined plotting
Set the channel to be used as X axis when display format has been set to X-Y
(dot) or X-Y (line) display on the STATUS 1 screen.
Method
1. Press the CHAN key to call up the
CHANNEL 1 screen.
2. Use the CH SELECT key to open selected
channel screen.
3. Move the cursor to the channel to be used as
X axis, as shown at left.
4. Use the function keys to select X axis.
The channels other than the channel
assigned to the X axis are automatically
assigned to the Y axis.
