Hioki 8835-01 - Scaling Setting Example

221
────────────────────────────────────────────────────
9.4 Scaling Function [ SCALING ]
────────────────────────────────────────────────────
9
.4.5 Scaling Setting Example

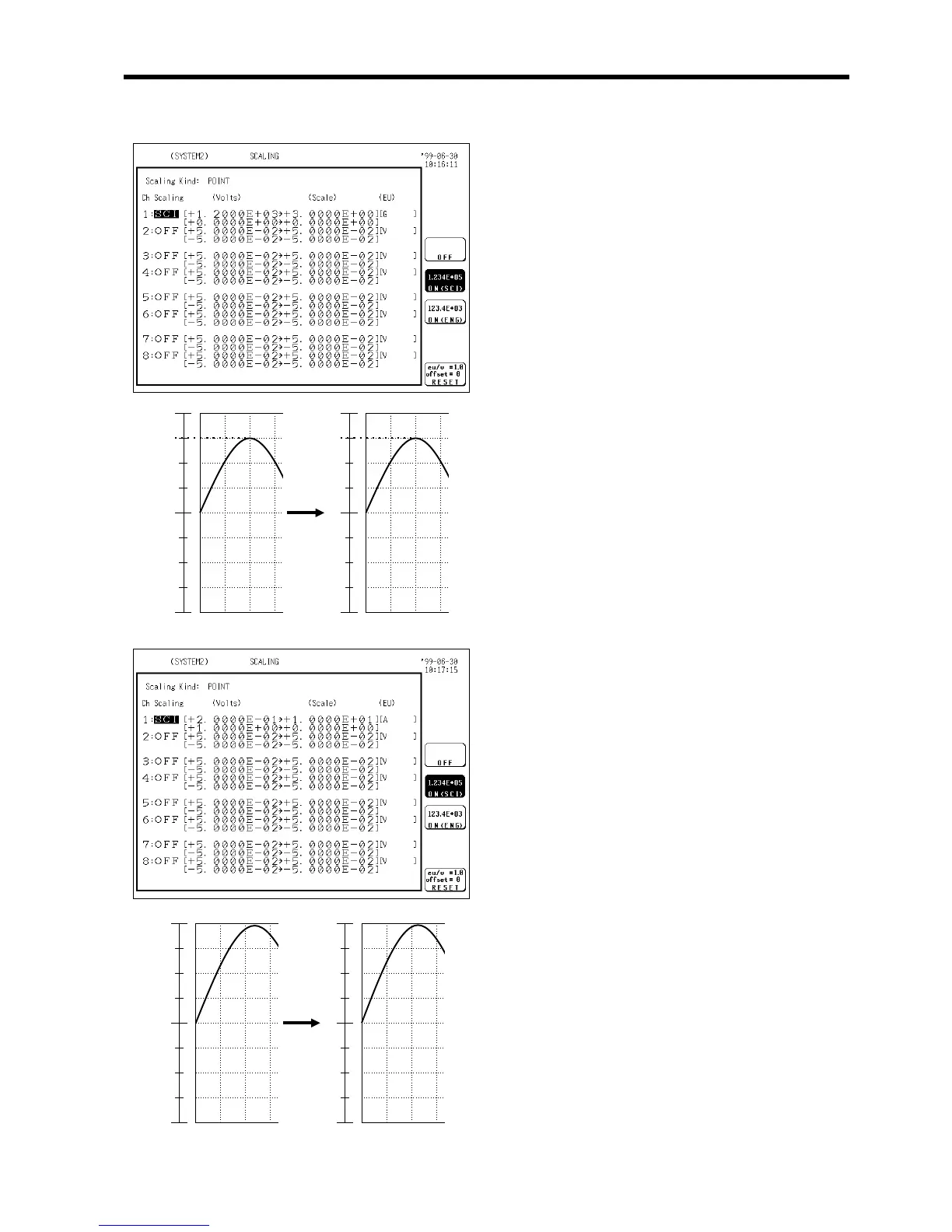

The example below shows the scaling functio
n
of the strain unit.
When a sensor having a gage ratio of 2 (the
conversion ratio is characterized as "3G =
1200 με(micro strain)") is used:
Scaling method：2-point scaling
Setting：SCI or ENG
Converting value：1200（με） →3（scale）
0（με） →0（scale）
unit (eu)：G
Through the use of the scaling function, the
signal from the sensor can be obtained in the
form of a physical quantity.
・Cursor values A and B, respectively, show
the physical quantities.
・If the gage is turned on before the printout
is made, the gage is output in a physical
quantity.
1200
1600
800
-800
-1600
2
3
4
-2
-4
［V］
［ G ］
0
0
0.2
0.1
-0.1
-0.2
5.0
10
-5.0
-10
［ V ］
［ A ］
0
0
The example below shows the type of scaling
when the measurement range is set to 10 A
using the 9018 CLAMP ON PROBE.
Through the use of the scaling function, the
signal from the sensor can be obtained in the
form of a current value.
・Cursor values A and B, respectively, show
the current values.
・If the gage is turned on before the printout
is made, the gage is output in a currnt
value.
Scaling method：2-point scaling
Setting：SCI or ENG
Converting value：0.2（V） →10（scale）
0（V）→10（scale）
unit (eu)：A
