Hioki 8835-01 - Setting the Recording Length

53
────────────────────────────────────────────────────
4.2 Making Settings
────────────────────────────────────────────────────
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
4
.2.3 Setting the Recording Length
Shows the measurement time in the se
t
time axis range and recording length.
Data points per division are set when external sampling is selected.

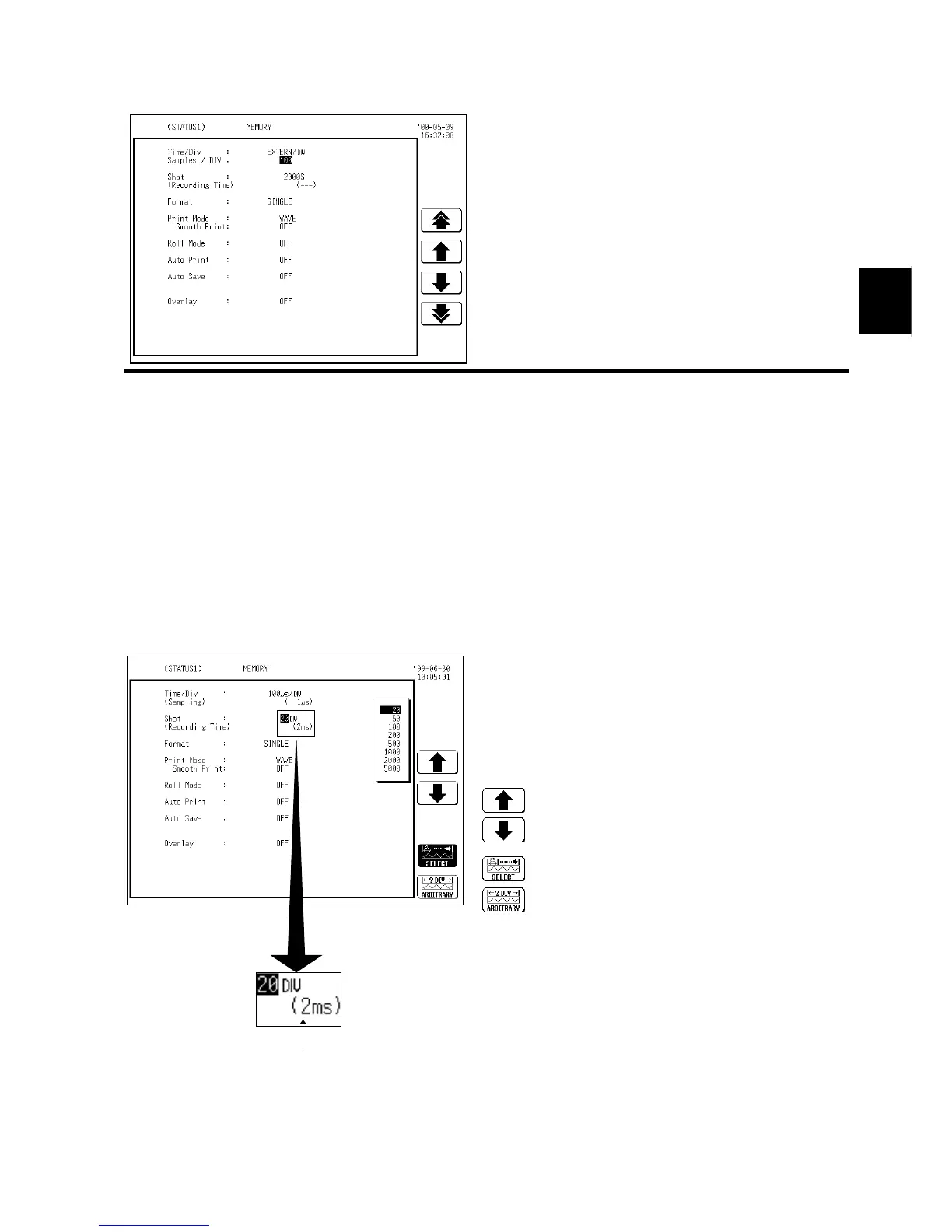

1. Move the flashing cursor to the samples/DIV
item, as shown in the figure on the left.
2. Use the
JOG/SHUTTLE control or the function
keys to make the selection.
Setting range is 10 to 1000.
・The length of recording for one measurement operation (number of DIV) can
be set.
・Two types of recording length can be set.
Fixed recording length mode: Select the desired recording length from among
types 1, 2, and 5.
Any recording length mode: Any recording length can be selected by the user.
The recording length can be changed in intervals
of 1 DIV.
Method 1 (Fixed recording length mode)
Screen: STATUS 1, DISPLAY
1. Call up the STATUS 1 or DISPLAY screen.
2. Move the flashing cursor to the shot item, as
shown in the figure on the left.
3. Use the
JOG control or the function keys to
make the selection.
: Move the cursor up in the selection window.
: Move the cursor down in the selection
window.
: Set the fixed recording length mode.
: Set the any recording length mode.
