3.2 Basic Measurement and Setting Procedures
────────────────────────────────────────────────────
3
.2.2 Measuring and Recording a Voltage (Memory Recorder
Function)
Example A2V
p-p
1 kHz sine wave input is measured.
(1) Input connection
Connect a signal generator to the 8835-01.
(2) Set the signal generator so that it outputs a 2 Vp-p 1 kHz sine wave.

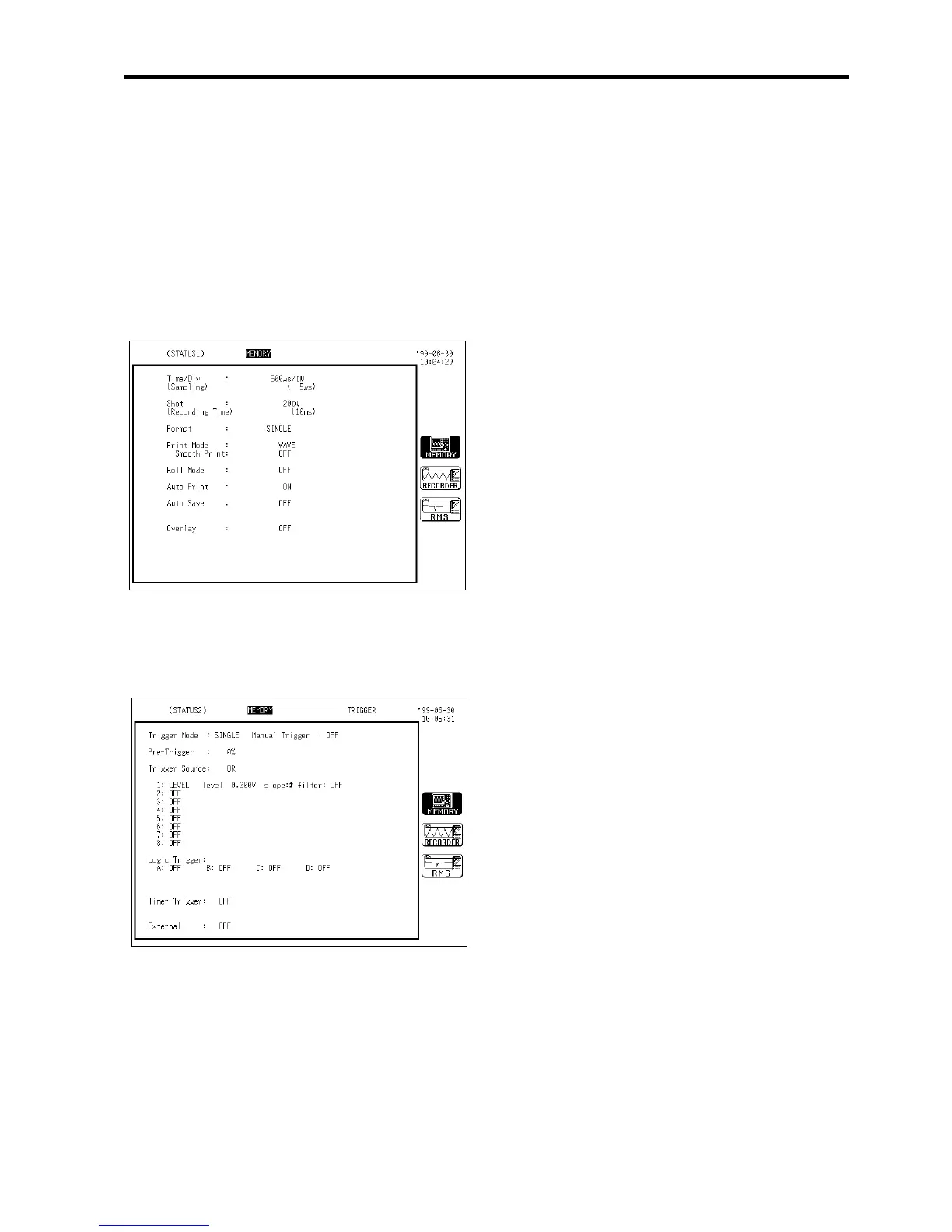

(3) Settings on the STATUS 1 screen
Make the following settings with the CURSOR keys and function keys.
time/div: 500 μs/DIV
shot: 20 DIV
format: SINGLE
print mode: WAVE
smooth print: OFF
roll mode: OFF
auto print: ON
auto save: OFF
overlay: OFF
(4) Settings on the STATUS 2 screen
Make the following settings with the CURSOR keys and function keys.
trigger mode: SINGLE
pre-trigger: 0%
trigger source: OR
manual trigger: OFF
analog trigger: level trigger
trigger level: 0.000 V
trigger direction (slope): rising
trigger filter: OFF
Logic Trigger: OFF
timer trigger: OFF
external trigger: OFF
