1.3 Identification of Controls and Indicators
────────────────────────────────────────────────────
17
16
7
4
1
2
3
5
6
8
9
10
11
12
13
18
19
20
21
15
14
22
23

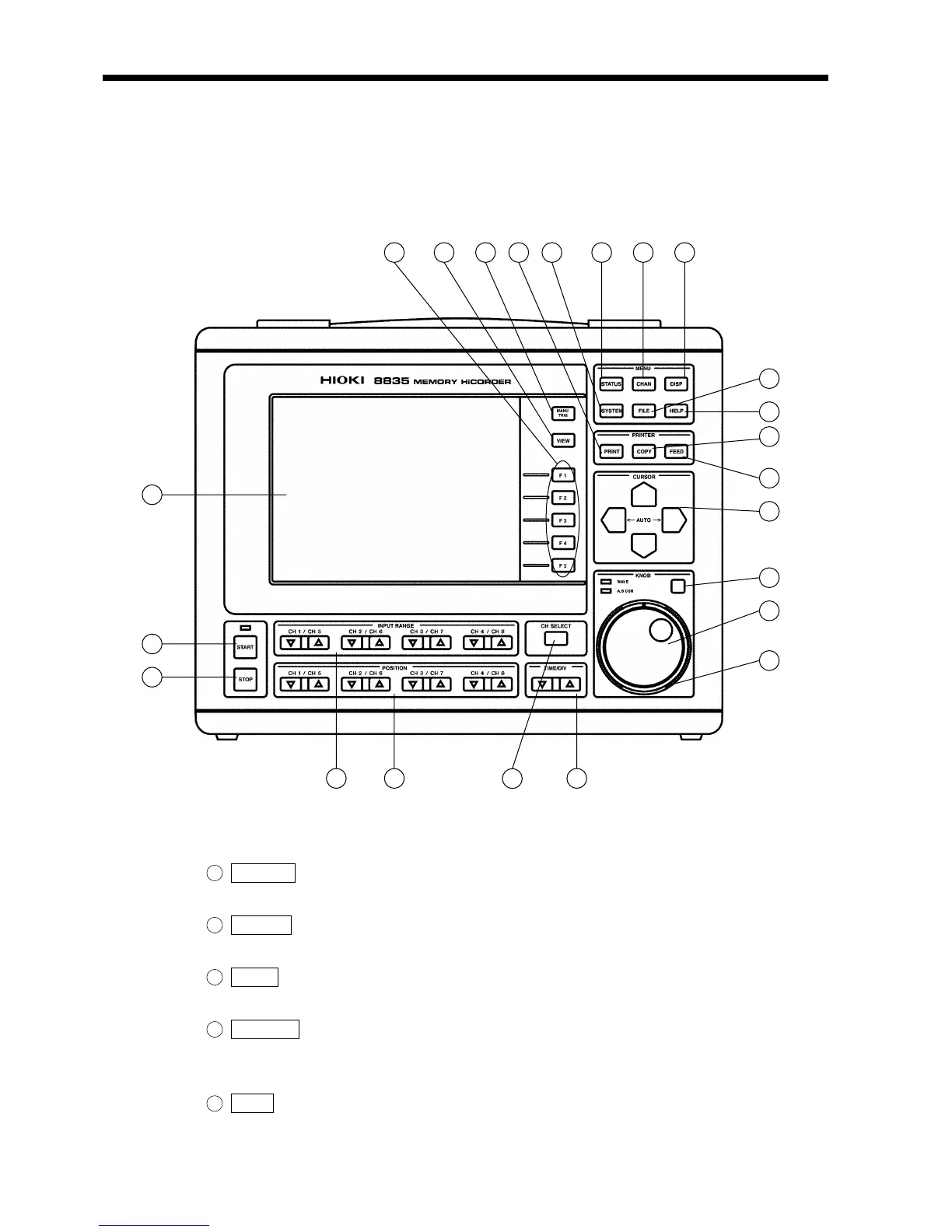

Front panel
1
2
3
4
5
1
.3 Identification of Controls and Indicators
Controls and indicators of the unit are listed on the following pages, along
with a simple explanation of their function.
STATUS key Causes the display to show the STATUS screen which
serves for setting most measurement parameters.
CHAN key Causes the display to show the CHANNEL screen which
serves for making input channel settings.
DISP key Causes the display to show measurement and analysis
results.
SYSTEM key Causes the display to show the SYSTEM screen which
serves for making system-wide settings such as for the
scaling function.
FILE key Causes the display to show the FILE screen which
serves for reading, storing, etc. the waveform data etc.
