9.3 Special Function Settings [ SETUP ]
────────────────────────────────────────────────────
9
.3.5 Displaying the Time from the Trigger Point (Time Display
)
NOTE
9
.3.6 List and Gauge Functions
The time from the trigger point and other information can be printed.

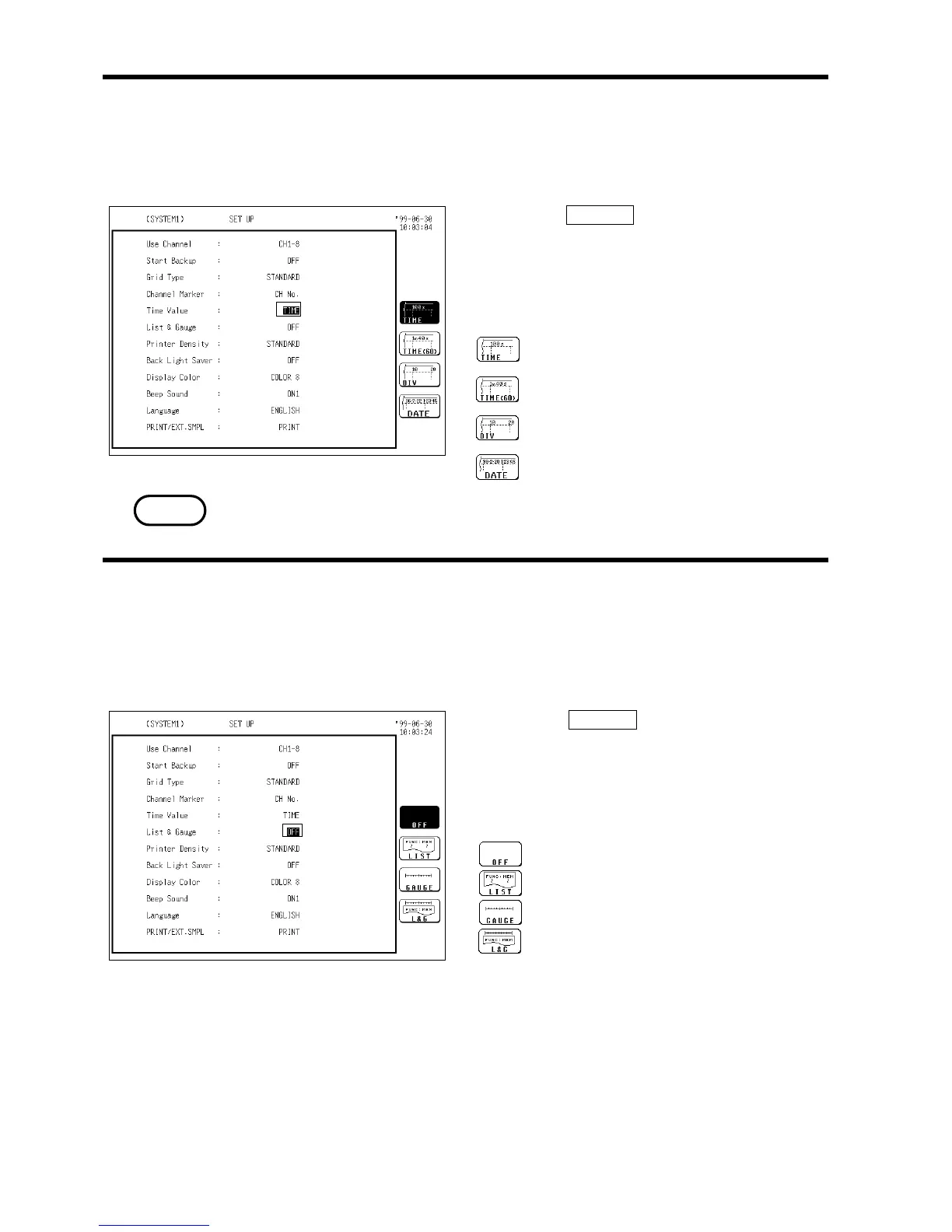

Method Screen: SYSTEM 1 (SET UP)
1. Press the SYSTEM key to call up the SET
UP screen.
2. Move the flashing cursor to the position
shown in the figure on the left.
3. Use the function keys to make the selection.
: Displays the time from the trigger point
(unit: fixed).
: Displays the time from the trigger point
(unit: base 60).
: Displays the number of DIV from trigger
point.
: Displays the time when a waveform is
captured.
This function cannot be used in FFT function (advanced version).
When a waveform is printed (except for screen hard copies), the gauge can be
printed out at the beginning, and a listing can be printed out at the end.
Method Screen: SYSTEM 1 (SET UP) 11-12
1. Press the SYSTEM key to call up the SET
UP screen.
2. Move the flashing cursor to the position
shown in the figure on the left.
3. Use the function keys to make the selection.
: No gauges or listing
: Print listing only
: Print gauges only
: Print both gauges and listing
