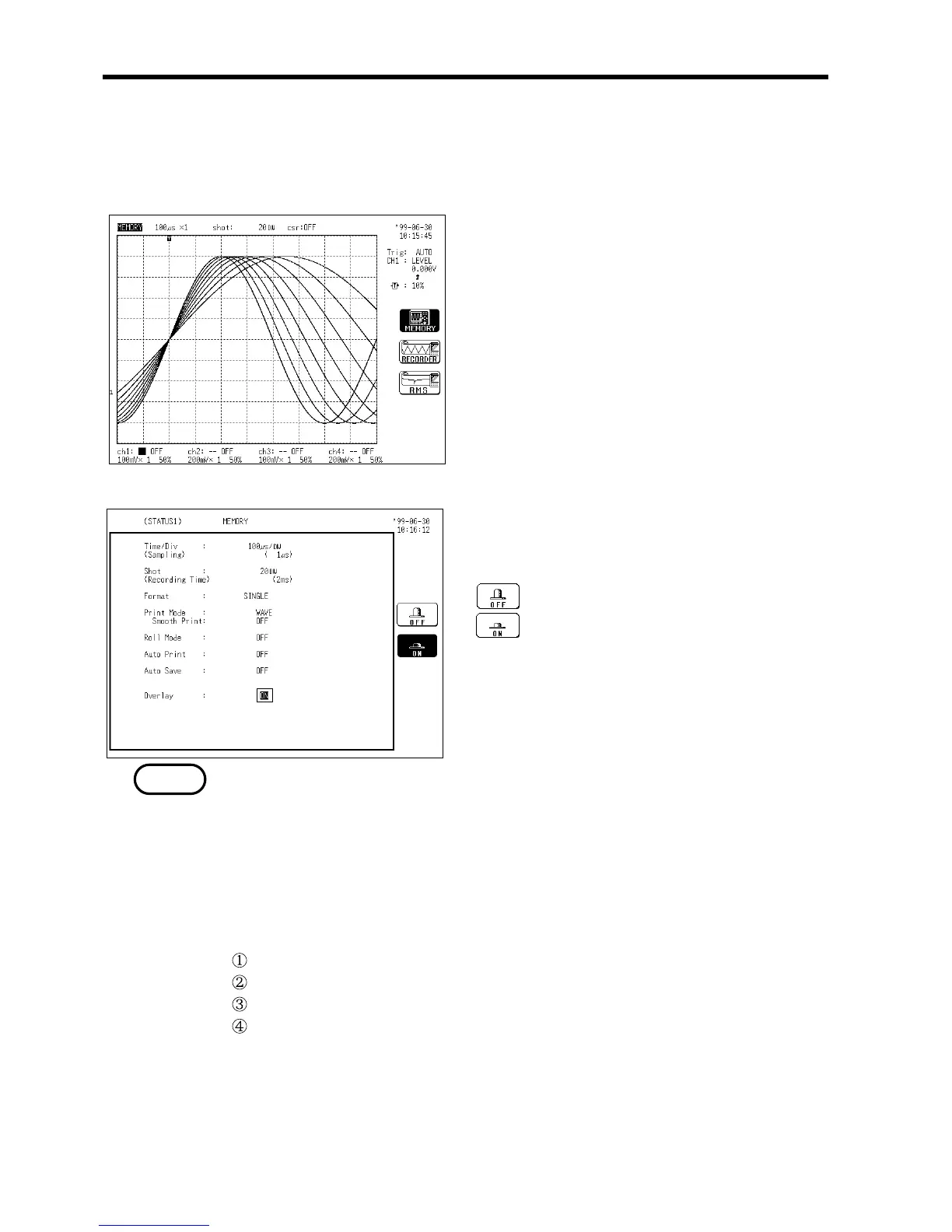

.2.10 Overlay
NOTE
・Overlay is performed without clearing the currently displayed waveform (if
trigger mode is REPEAT or AUTO).
・This allows comparison to the immediately preceding waveform.
0
Method Screen: STATUS 1
1. Move the flashing cursor to the overlay item.
2. Use the function keys to make the
selection.
: Overlay is not performed.
: Overlay is performed.
･ If trigger mode is SINGLE, measurement terminates after one set of data has
been collected. Therefore overlay is impossible.
･ While the overlay function is being used, waveform scrolling cannot be carried out.
･ When manual printing (see Section 10.7.1) is carried out, only the last waveform
will be printed. Use Report Print to print overlaid waveforms. (see Section 10.7.7)
･ If one of the following settings is changed, the overlay waveform display
terminates and only the last waveform is shown (the settings cannot be
changed on the DISPLAY screen):
Screen zoom ratio (along time axis or voltage axis)
Display format
Waveform display or store channel
X axis or Y axis during X-Y display
･ For dark waveform colors (the six lower-half colors), the most recently used
colors are indistinguishable from previous ones.
･ The overlay function cannot be set together with roll mode. (When the display
format is set to "X-Y," you can turn ON Overlay with Roll Mode ON.)
