Hioki 8835-01 - Setting the Format

55
────────────────────────────────────────────────────
4.2 Making Settings
────────────────────────────────────────────────────
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
4
.2.4 Setting the Format
Input waveform
Input waveform
Graph
1
Graph
2
Input waveform
Graph
1
Graph
2
Graph
3
Graph
4

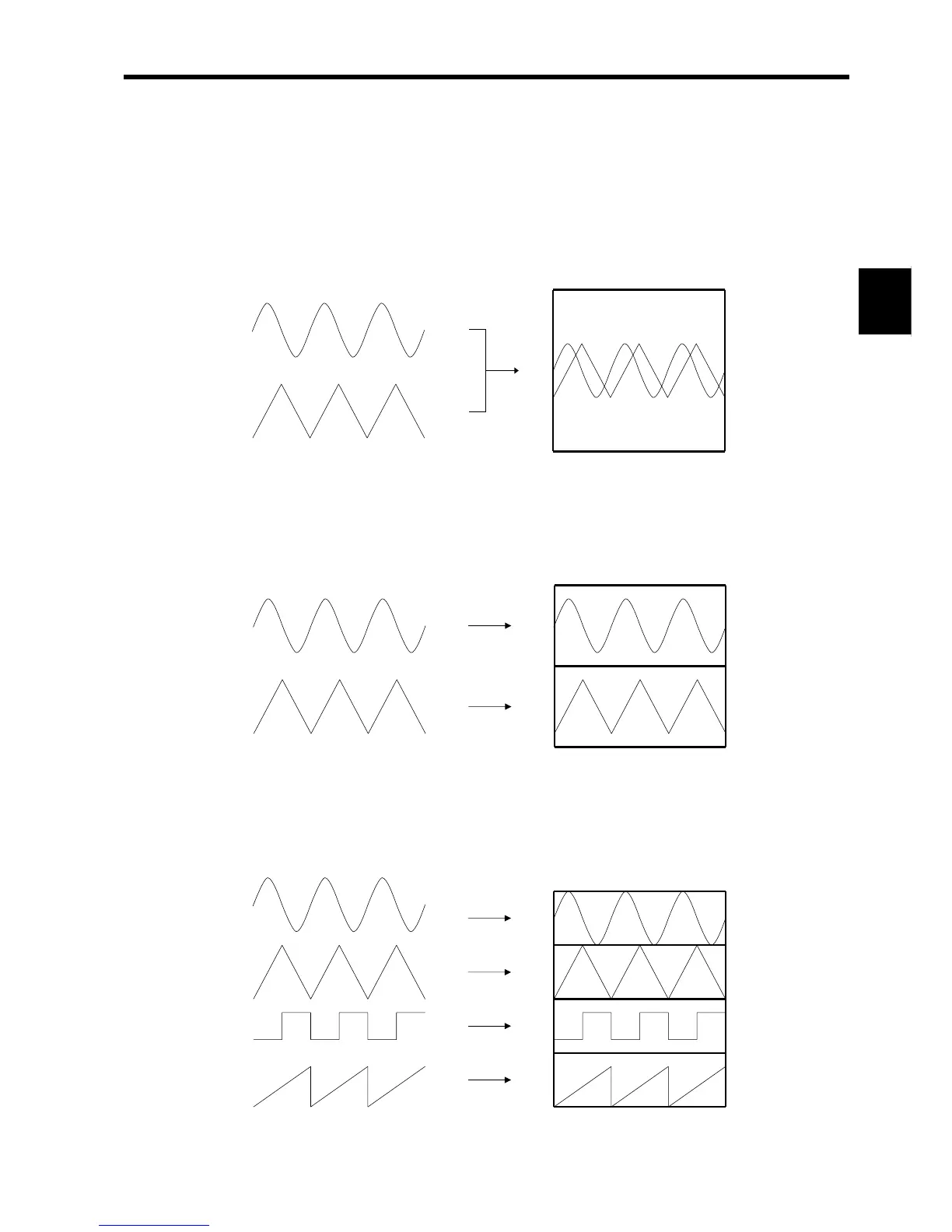

・The style can be set for showing input signals on the screen display and
recording them on the printer.
・The styles single, dual, quad, X-Y (dot), and X-Y (line) are available.
(1) Single
Display and record as one graph. (At the most, 8 analog + 16 logic signals)
(2) Dual
・Display and record as two graphs. (At the most, 8 analog + 16 logic signals)
・Specify which input channel to use for waveform graph display and recording.
(3) Quad
・Display and record as four graphs. (At the most, 8 analog + 16 logic signals)
・Specify which input channel to use for waveform graph display and recording.
