7.14 Channel Guide
────────────────────────────────────────────────────
1
2
5
6
3
4
7
8
7
.14 Channel Guide
Views collation of input unit terminals to channels.

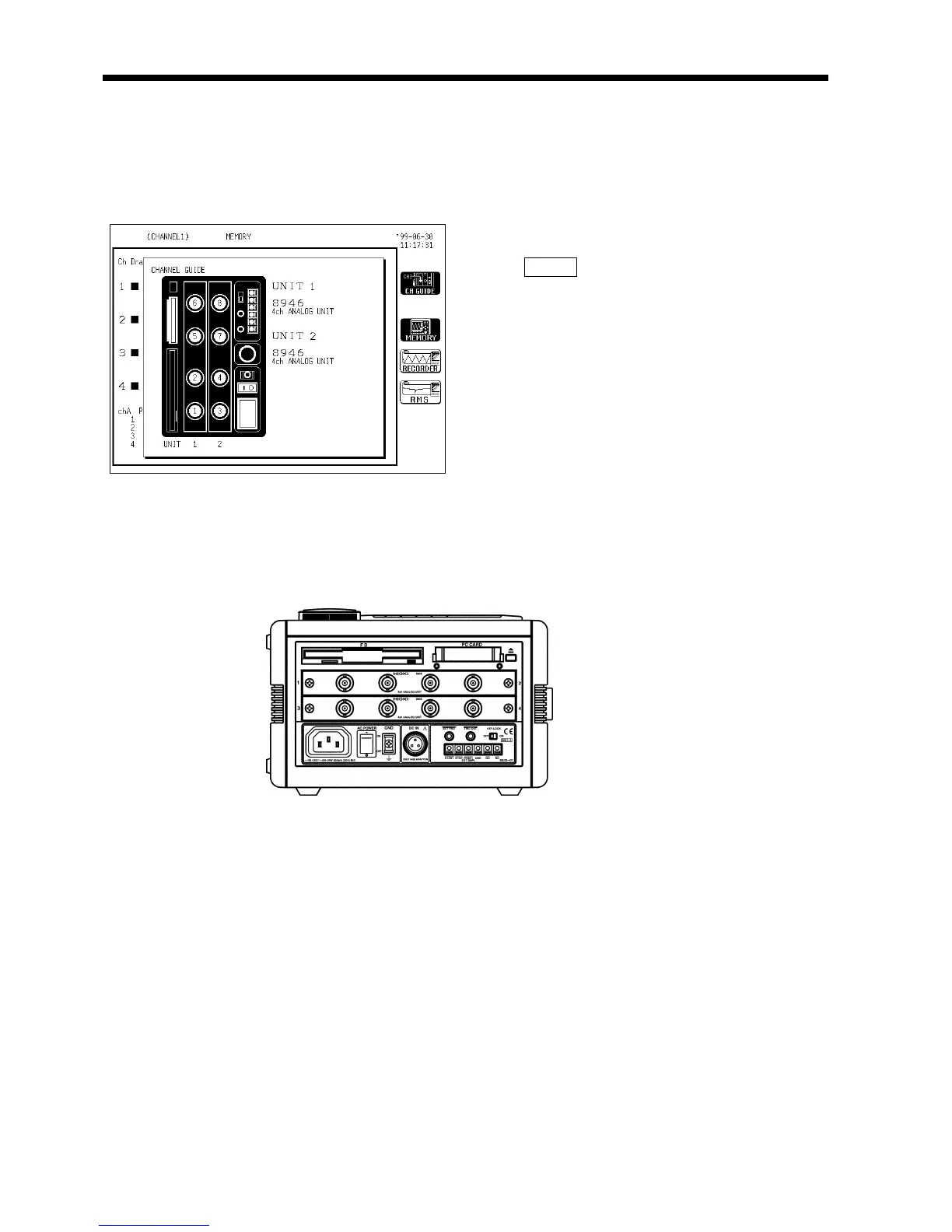

Method Screen: CHANNEL 1
1. Call up the CHANNEL 1 screen.
2. Press
VIEW key (CH guide) to display
channel guide window.
3. Use any key to close window.
Setting Channels in 8946 4 ch ANALOG UNIT
When using 8946 4 ch ANALOG UNIT, input channels are not numbered in
numeric order as 1,2,3,4. Channel number is determined by connection to
units. (See below.) To verify position of channels, see Channel Guide.
