Hioki 8835-01 - Setting the Low-Pass Filter

129
────────────────────────────────────────────────────
7.3 Making the Settings of the 8936 ANALOG UNIT
────────────────────────────────────────────────────
7
.3.9 Setting the Low-Pass Filter
NOTE
Unit Low-pass filter
８９３６ OFF, 5, 500, 5 k, 100 kHz
８９３７
Voltage
OFF, 5, 500, 5 k, 100 kHz
Temperature
OFF, 5, 500 Hz
８９３８ OFF, 5, 500, 5 k, 100 kHz
８９３９ OFF, 10, 30, 300, 3 kHz
８９４０ OFF, 5, 500, 5 k, 100 kHz
８９４６ OFF, 5, 500, 5 k, 50 kHz
８９４７
Voltage
OFF, 5, 500, 5 k, 100 kHz
Acceleration
OFF, 500, 5 kHz
・Low-pass filters internal to the input units are set.
・Effective for removing unneeded high-frequency components.

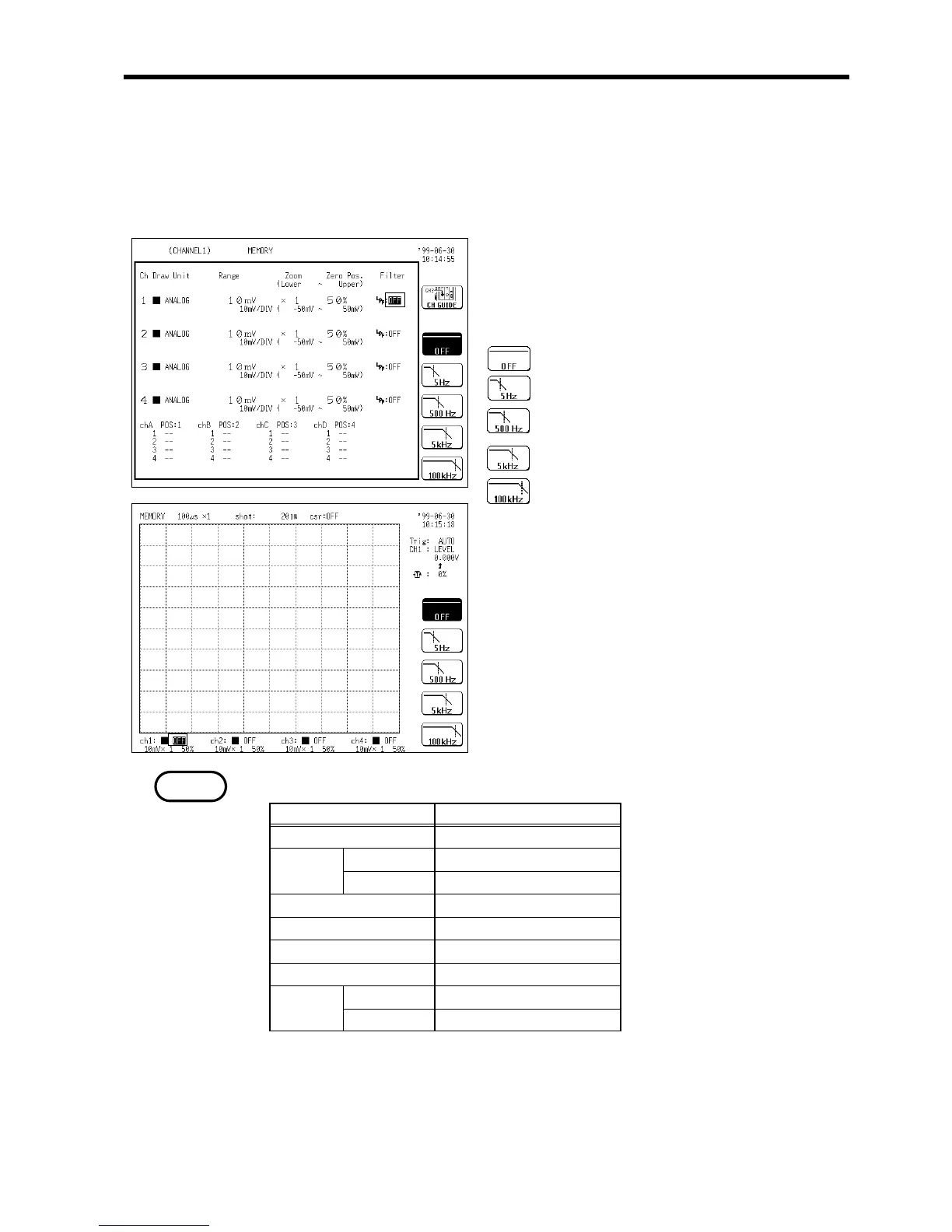

Method Screen: CHANNEL 1, DISPLAY
1. Call up the CHANNEL 1 or DISPLAY screen.
2. Move the flashing cursor to the point shown
in the figure on the left.
3. Use the function keys to make the selection.
: No low-pass filter is connected.
: Connect a filter with a cutoff frequency of 5
Hz
: Connect a filter with a cutoff frequency of
500 Hz
: Connect a filter with a cutoff frequency of 5
kHz
: Connect a filter with a cutoff frequency of
100 kHz
Cutoff frequency of low-pass filter is determined by type of input unit.
