63
────────────────────────────────────────────────────
4.2 Making Settings
────────────────────────────────────────────────────
NOTE
NOTE

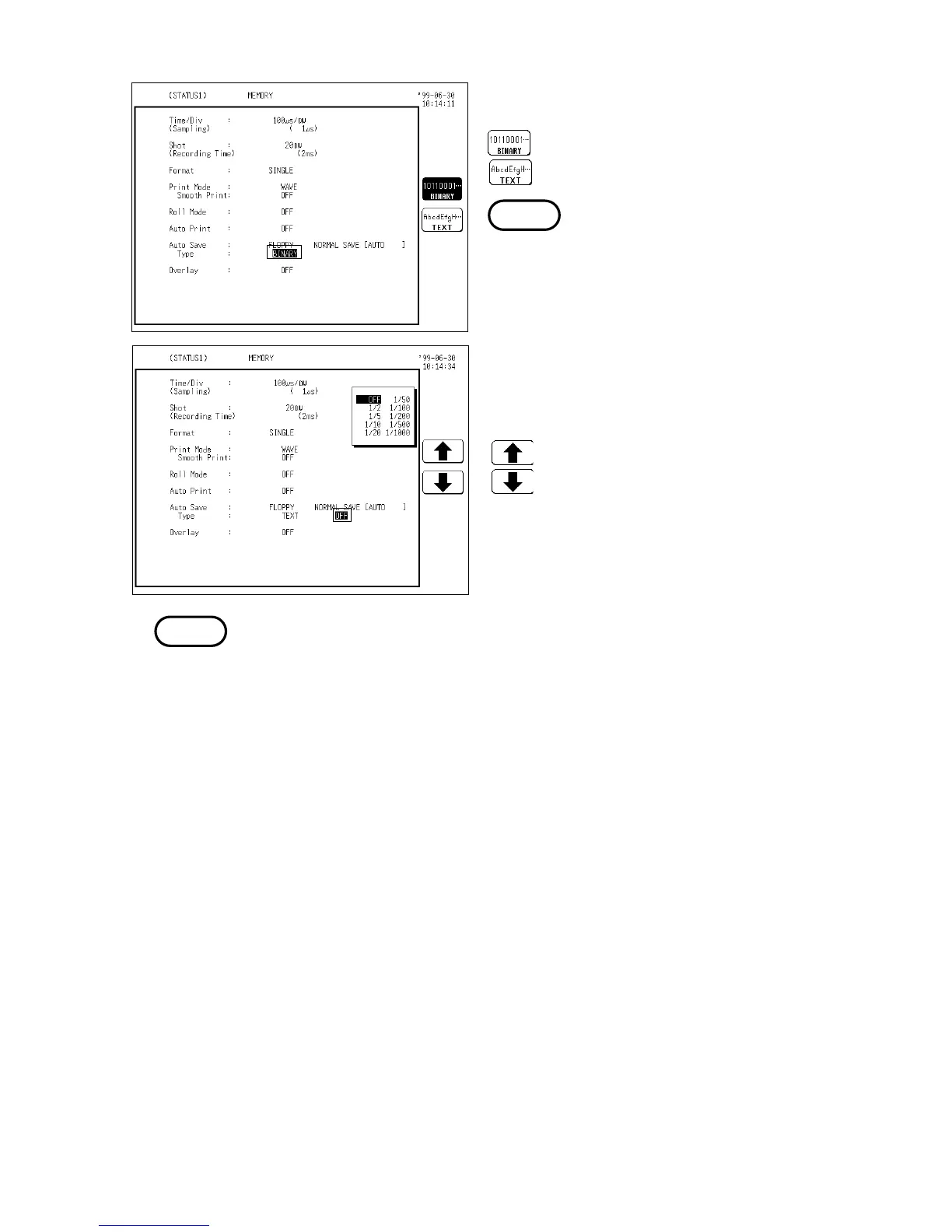

6. Use the function keys to select the data store
principle.
: Data are stored as binary data.
: Data are stored as text data.
The TEXT format is intended for reading by a
PC. Select BINARY for reading by the 8835-01.
7. Selected TEXT in save options opens
Thinning.
Use the
JOG control or the function keys to
make the selection.
: Move the cursor up in the selection window.
: Move the cursor down in the selection
window.
・In automatic save channels cannot be selected. Only current channel
displaying waveform is saved.
・A file is stored in the directory currently selected on the file screen.
・Only a limited number of directories and files can be stored in the directory.
Use Report Print to print overlaid waveforms. (see Section 10.7.7)
・If the A/B cursors are used, partical save is applied (see Section 13.4.5
Detailed Explanation of the Commands 1. SAVE).
・If the data quantity is too large, it may not fit on a floppy diskette or PC
Card. For the size of a file, see Section Appendix 4. (When the display
format is set to "X-Y," you can turn ON Overlay with Roll Mode ON.)
To Next Page
