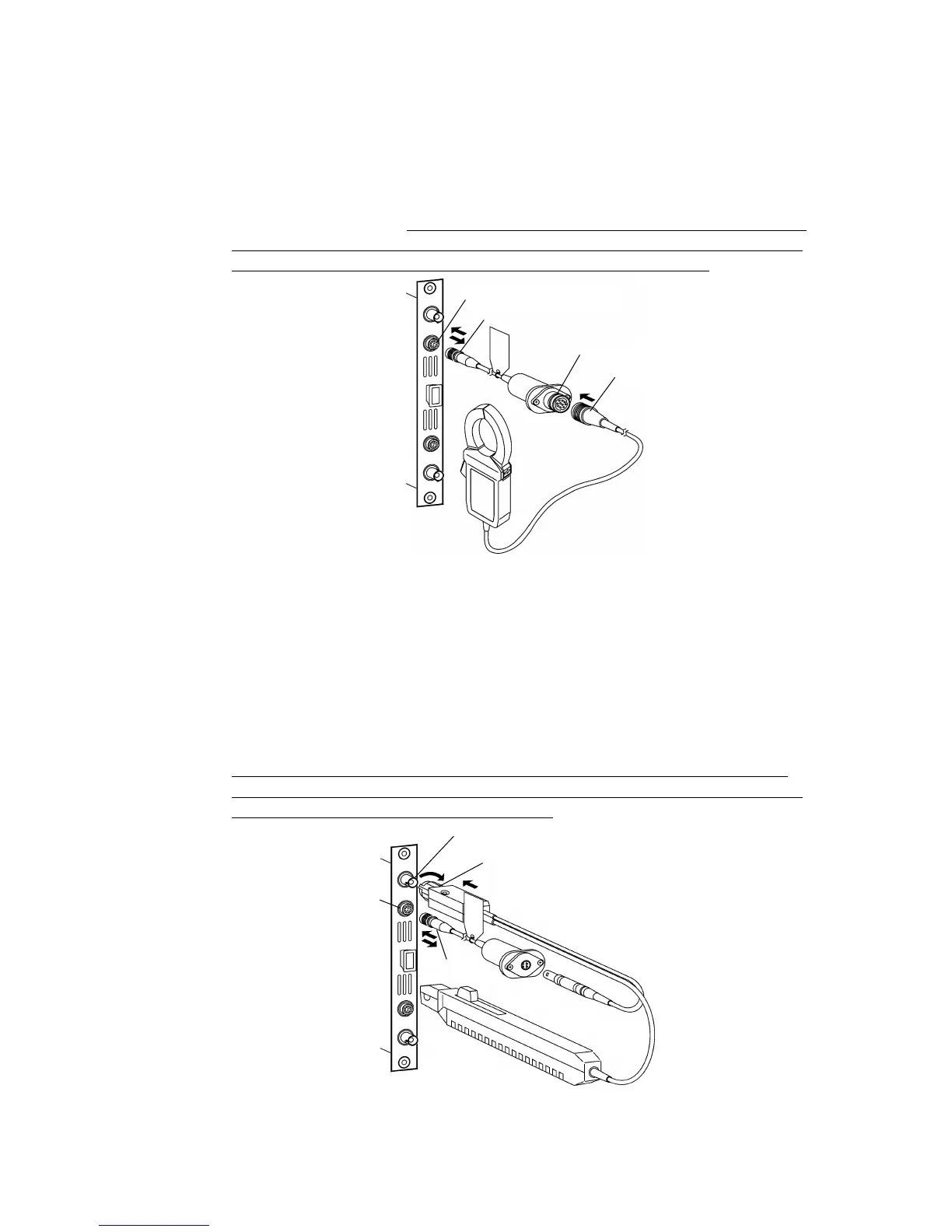

Connecting to 9318 CONVERSION CABLE
1. Align the groove on the conversion cable plug with the sensor connector on the
F/V unit and push inward until the connector locks into place.
2. Align the groove on the conversion cable connector with the adapted clamp on
sensor plug and push inward until the connector locks into place.
3. To unplug the cables, slide the lock ring on each plug outward to unlock it,
then pull out the plug. When disconnecting the connector and the plug, hold
the connector or the plug, and pull carefully. Pulling on the cable instead of
the connector or the plug may damage the connector and cable.
Connecting to 9319 CONVERSION CABLE
1. Align the groove on the 3273 or 3273-50
*1
CLAMP ON PROBE’s termination
connector with the pin on the BNC connector on the F/V unit, then slide the
termination connector over the BNC connector and turn to lock it in place.
2. Align the groove on the conversion cable plug with the sensor connector on the
F/V unit and push inward until the connector locks into place.
3. To unplug the cables, unlock the conversion cable connector and the power
plug on the 3273 or 3273-50
*1
before unplugging the cable.
4. Slide the lock ring on each plug outward to unlock it, then pull out the plug.
When disconnecting the connector and the plug, hold the connector or the
plug, and pull carefully. Pulling on the cable instead of the connector or the
plug may damage the connector and cable.
*1: When using the Model 3273-50 with the 8940, bear in mind that the maximum
input of the 3273-50 is 15 Arms.
