To configure static members by interface:
1.
Click VLAN, Static.
2.
Select Edit Member by Interface from the Action list.
3.
Select a port or trunk configure.
4.
Modify the settings for any interface as required.
5.
Click Apply.

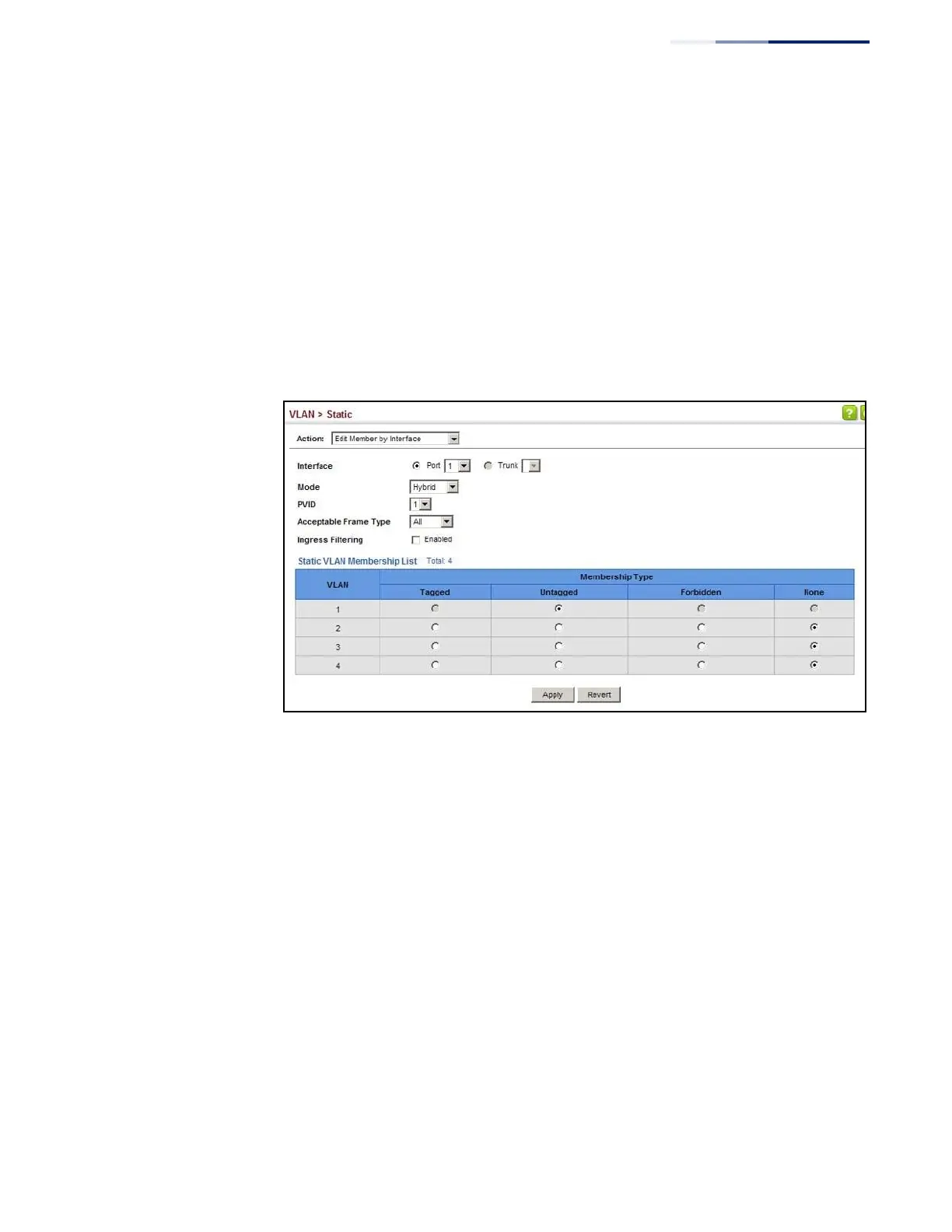

Figure 79: Configuring Static VLAN Members by Interface
To configure static members by interface range:
1.
Click VLAN, Static.
2.
Select Edit Member by Interface Range from the Action list.
3.
Set the Interface type to display as Port or Trunk.
4.
Enter an interface range.
5.
Modify the VLAN parameters as required. Remember that the PVID, acceptable
frame type, and ingress filtering parameters for each interface within the
specified range must be configured on either the Edit Member by VLAN or Edit
Member by Interface page.
6.
Click Apply.
