Chapter 7 | Spanning Tree Algorithm
Configuring Multiple Spanning Trees
– 200 –
Web Interface
To create instances for MSTP:
1. Click Spanning Tree, MSTP.
2. Select Configure Global from the Step list.
3. Select Add from the Action list.
4. Specify the MST instance identifier and the initial VLAN member. Additional
member can be added using the Spanning Tree > MSTP (Configure Global -
Add Member) page. If the priority is not specified, the default value 32768 is
used.
5. Click Apply.

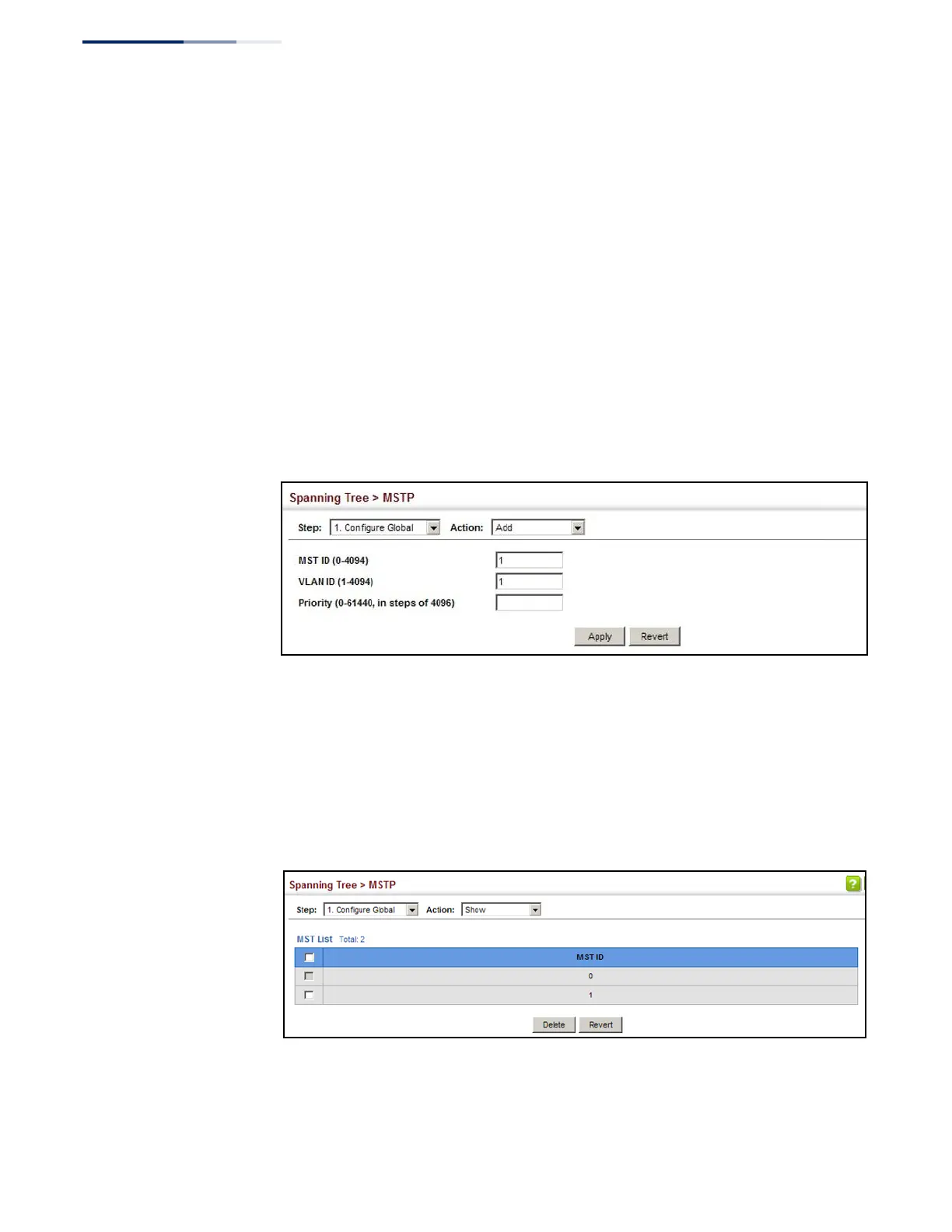

Figure 112: Creating an MST Instance
To show the MSTP instances:
1. Click Spanning Tree, MSTP.
2. Select Configure Global from the Step list.
3. Select Show from the Action list.
Figure 113: Displaying MST Instances
