Chapter 5 | VLAN Configuration
IEEE 802.1Q VLANs
– 151 –

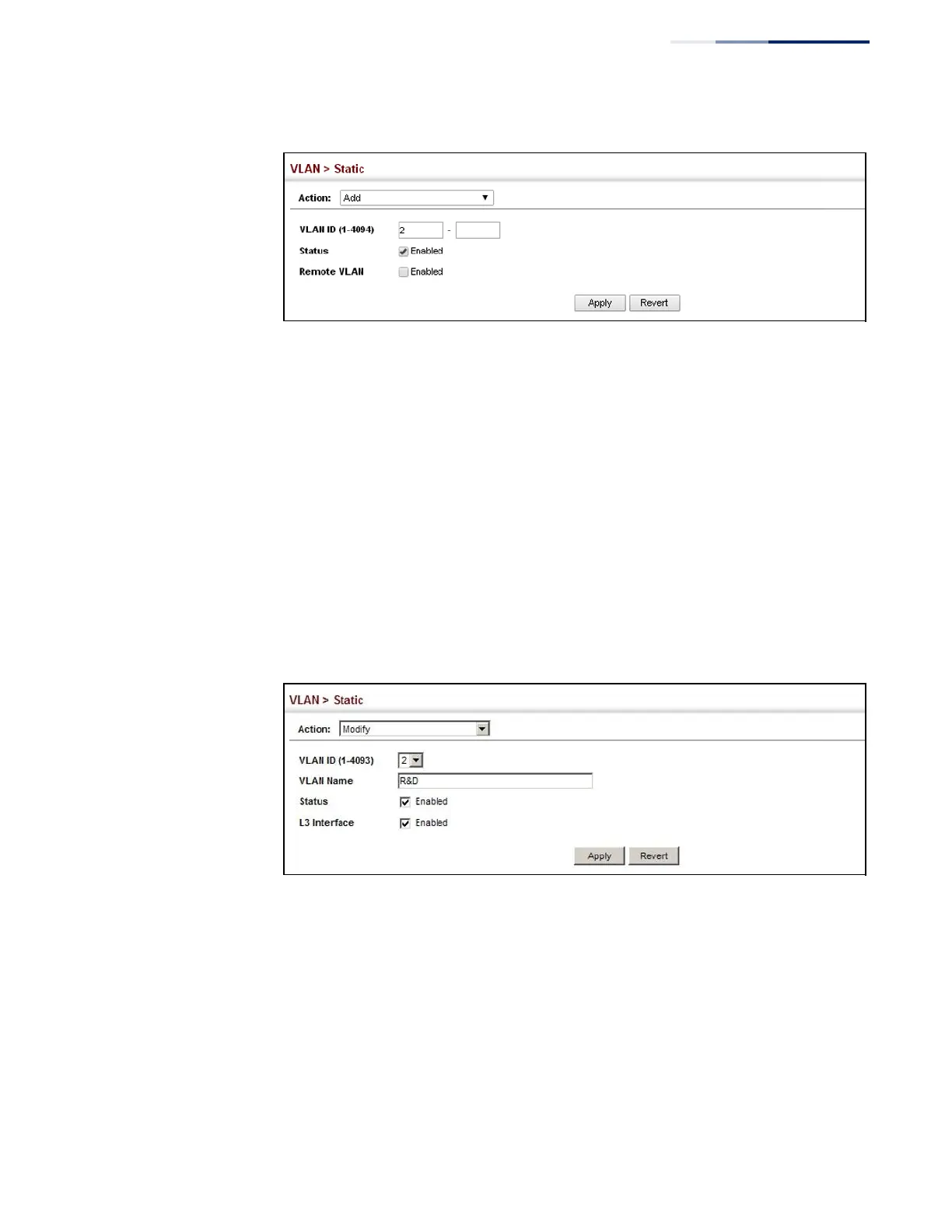

Figure 75: Creating Static VLANs
To modify the configuration settings for VLAN groups:
1. Click VLAN, Static.
2. Select Modify from the Action list.
3. Select the identifier of a configured VLAN.
4. Modify the VLAN name or operational status as required.
5. Enable the L3 Interface field to specify that a VLAN will be used as a Layer 3
interface.
6. Click Apply.
Figure 76: Modifying Settings for Static VLANs
