Multicast IP – The IP address for a specific multicast service.
Web Interface
To statically assign an interface to a multicast service:
1.
Click Multicast, IGMP Snooping, IGMP Member.
2.
Select Add Static Member from the Action list.
3.
Select the VLAN that will propagate the multicast service, specify the interface
attached to a multicast service (through an IGMP-enabled switch or multicast
router), and enter the multicast IP address.
4.
Click Apply.

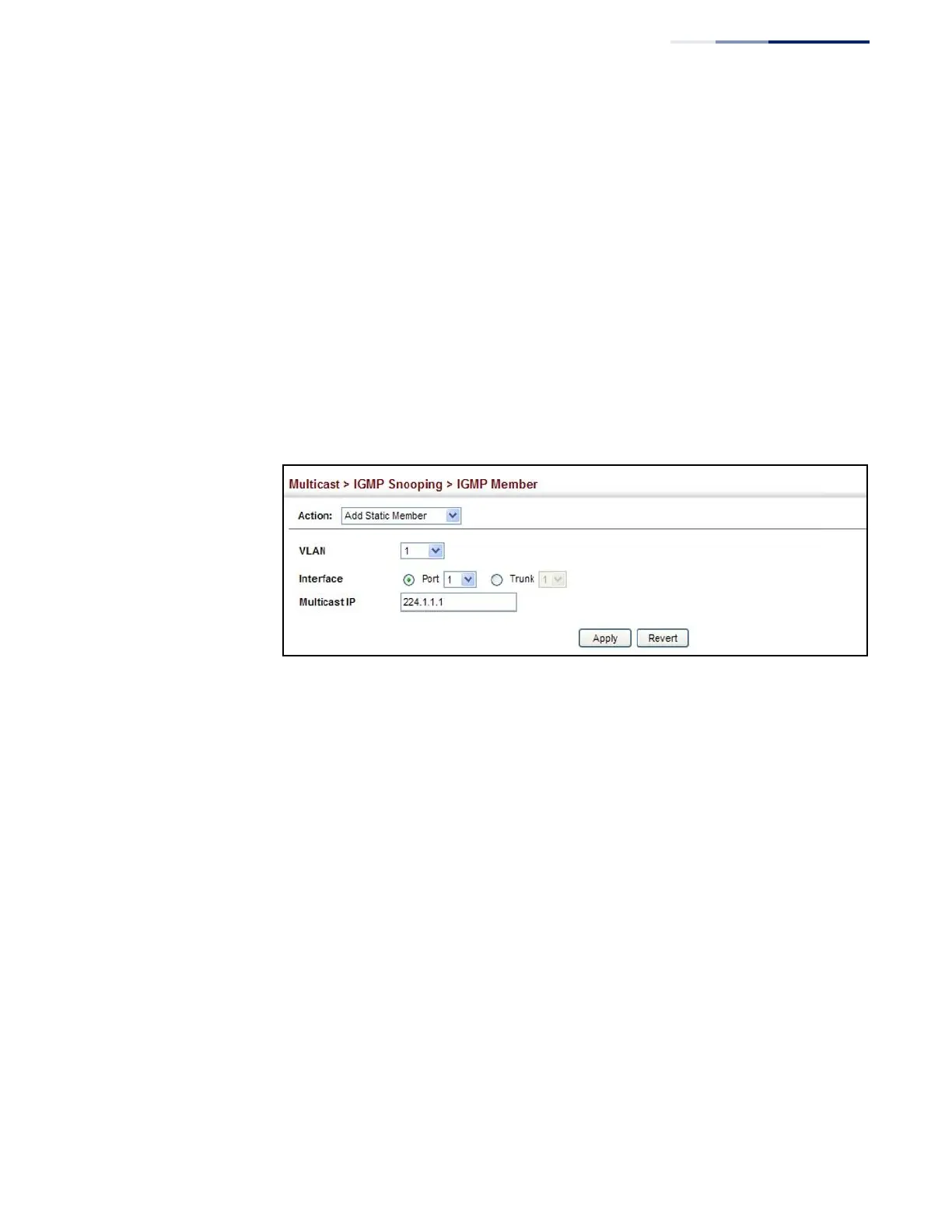

Figure 284: Assigning an Interface to a Multicast Service
To show the static interfaces assigned to a multicast service:
1.
Click Multicast, IGMP Snooping, IGMP Member.
2.
Select Show Static Member from the Action list.
3.
Select the VLAN for which to display this information.
