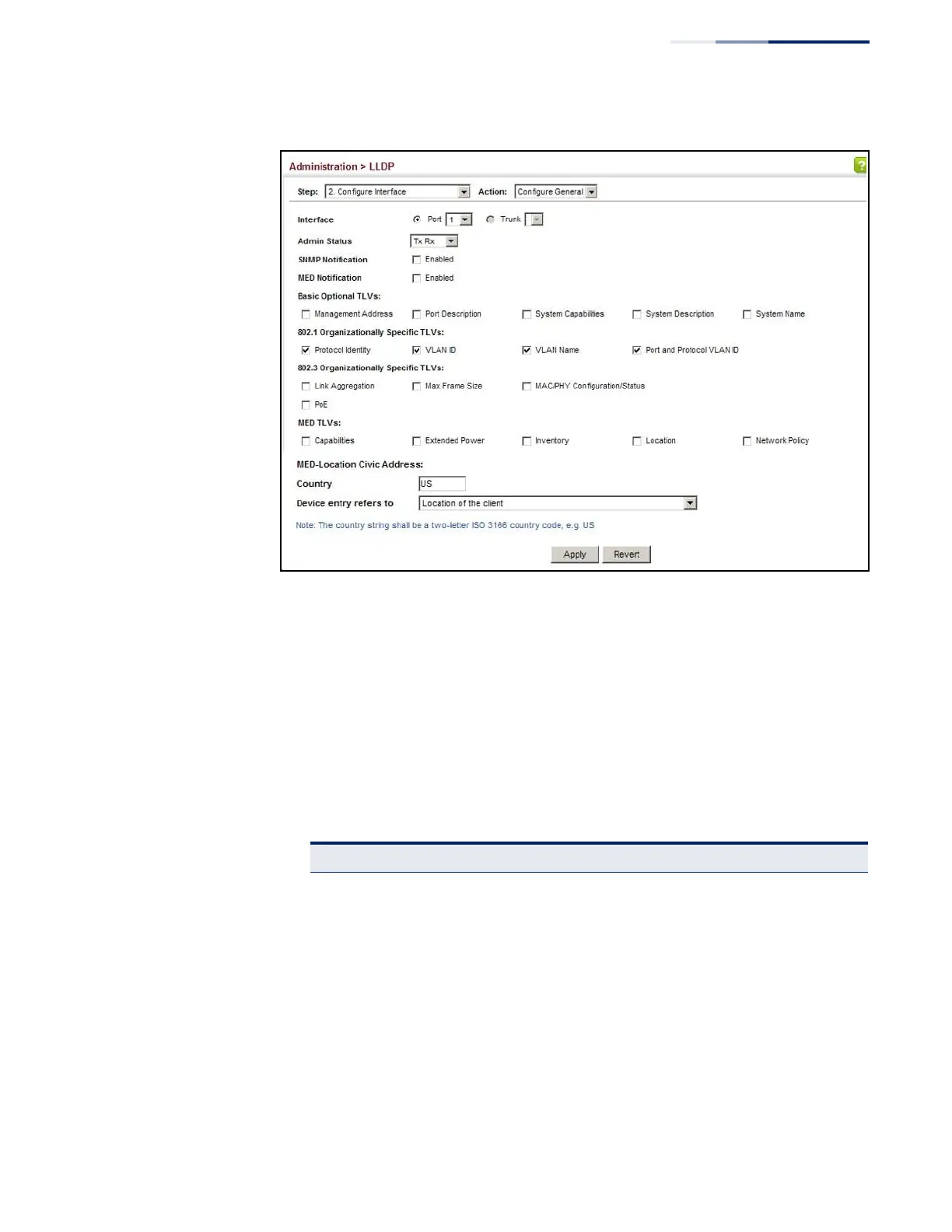

Figure 213: Configuring LLDP Interface Attributes
Configuring
LLDP Interface
Civic-Address
Use the Administration > LLDP (Configure Interface – Add CA-Type) page to specify
the physical location of the device attached to an interface.
Command Usage
◆ Use the Civic Address type (CA-Type) to advertise the physical location of the
device attached to an interface, including items such as the city, street number,
building and room information. The address location is specified as a type and
value pair, with the civic address type defined in RFC 4776. The following table
describes some of the CA type numbers and provides examples.
Table 21: LLDP MED Location CA Types
CA Type
Description
CA Value Example
1
National subdivisions (state, canton, province)
California
2
County, parish
Orange
3
City, township
Irvine
4
City division, borough, city district
West Irvine
5
Neighborhood, block
Riverside
6
Group of streets below the neighborhood level
Exchange
18
Street suffix or type
Avenue
19
House number
320
20
House number suffix
A
