Additional information displayed by an end-point device which advertises LLDP-
MED TLVs is shown in the following figure.

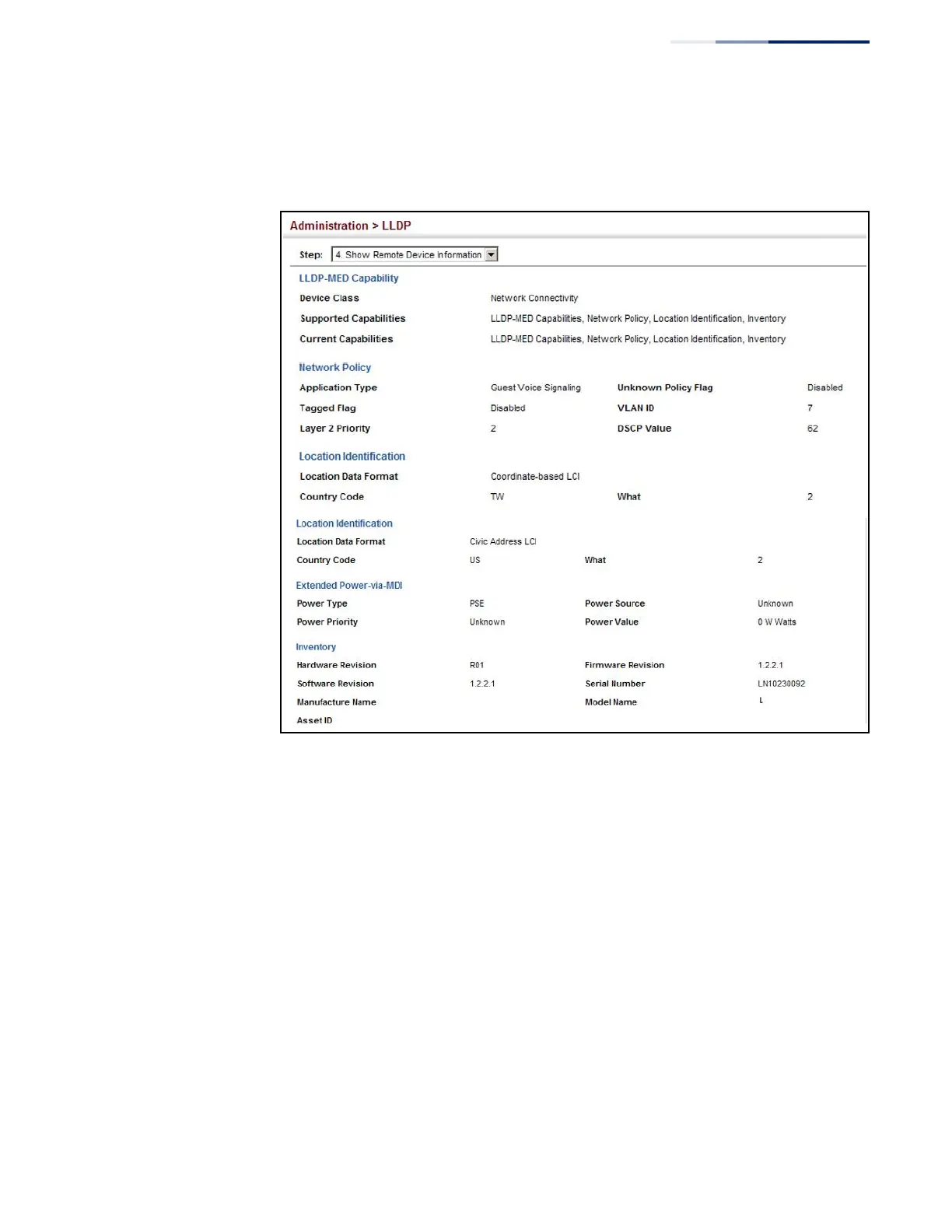

Figure 221: Displaying Remote Device Information for LLDP
(End Node)
Displaying
Device Statistics
Use the Administration > LLDP (Show Device Statistics) page to display statistics for
LLDP-capable devices attached to the switch, and for LLDP protocol messages
transmitted or received on all local interfaces.
Parameters
These parameters are displayed:
General Statistics on Remote Devices
◆
Neighbor Entries List Last Updated
– The time the LLDP neighbor entry list
was last updated.
◆
New Neighbor Entries Count
– The number of LLDP neighbors for which the
remote TTL has not yet expired.
◆
Neighbor Entries Deleted Count
– The number of LLDP neighbors which have
been removed from the LLDP remote systems MIB for any reason.
