Matrix ETERNITY NE System Manual 71
Attach the second DSS Extender
• To attach the second DSS Extender,
• Place another inverted DSS532 adjacent to the existing assembly.

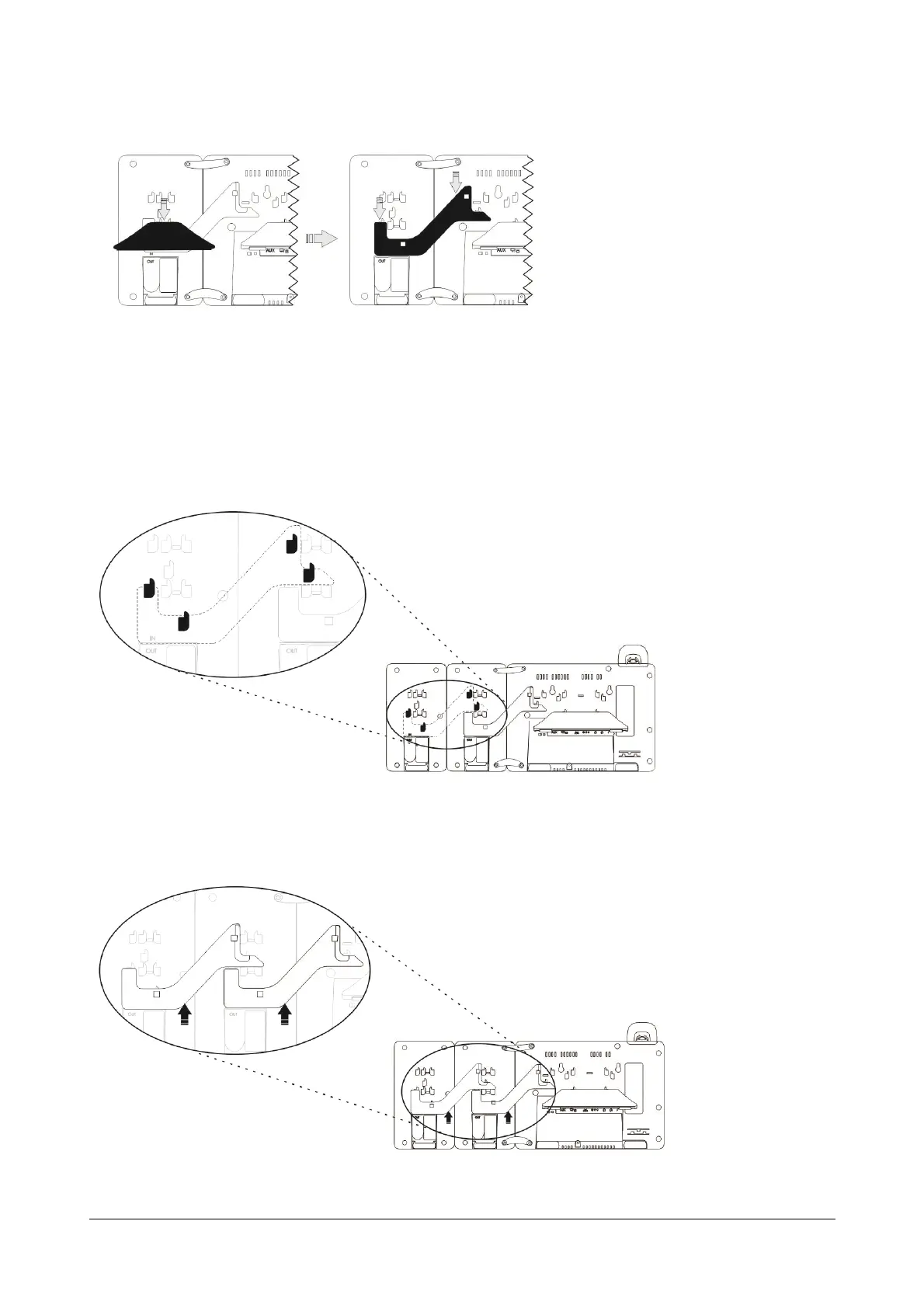

• Place the DSS Extender as illustrated in the diagram below.
• Insert the hooks on the Extender into the slots provided on both the DSS532.
• Firmly slide both the DSS Extenders upward consecutively (attach the second extender first followed by
the existing one attached to the phone) and lock them in place.
