Retentive memory vs. recipes storage
Recipe data is saved in flash memory (except forPC Runtime) while retentive data is saved in a FRAM. Flash
memory is not suitable for a high number of write operations, while FRAM supports a virtually unlimited number
of write operations and should be preferred when frequent write operations are required.
Protocol Editor Settings
From PLCModel list of Protocol Editor dialog, select RetentiveMemory.
Tag Editor Settings
Path: ProjectView> Config > double-click Tags
108
HMWIN Studio |User Manual|v206 (2017-06-30) |EN|© 2014-2017 Panasonic Electric Works Europe AG

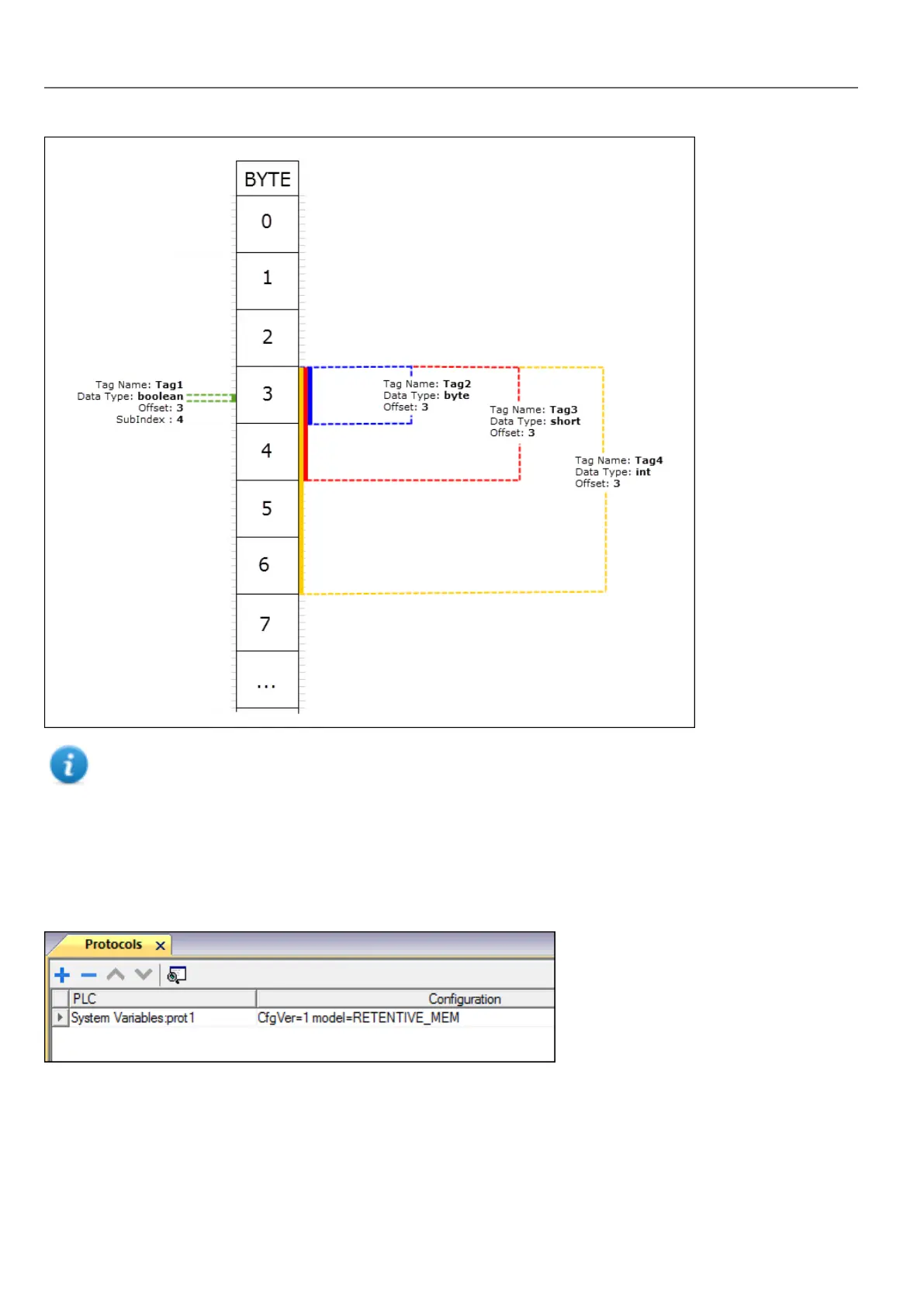

Retentive Memory variables
