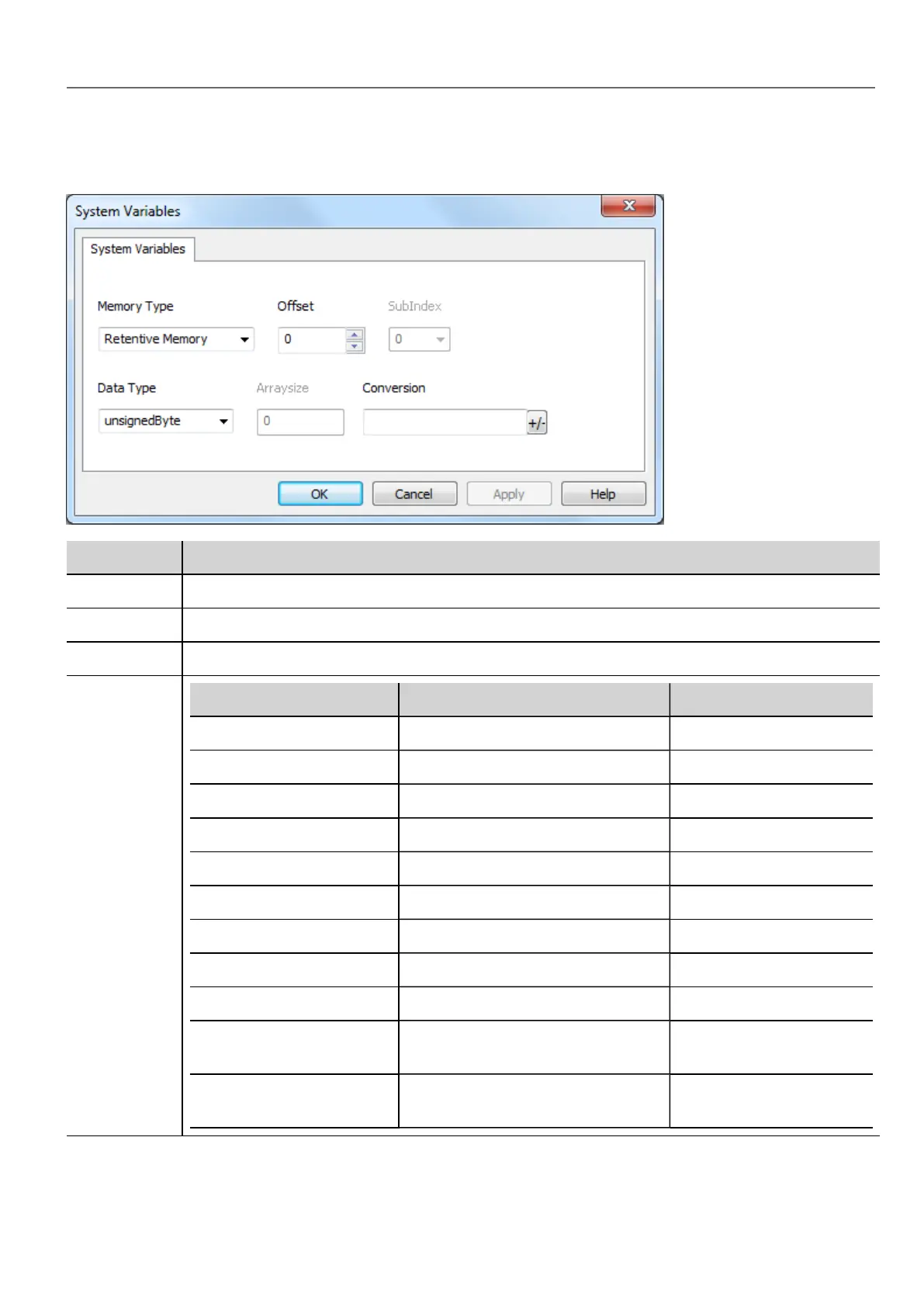

1. To add a tag, click +: a new line is added.
2. Select System Variables from the Driver list: tag definition dialog is displayed.
Element Description
Memory Type Fixed to Retentive Memory
Offset Offset address where tag is located.Range:0-16383
SubIndex This parameter allows resource offset selection based on selected Data Type
Data Type
Data Type Memory Space Limits
boolean 1-bit data 0 ... 1
byte 8-bit data -128 ... 127
short 16-bit data -32768 ... 32767
int 32-bit data -2.1e9 ... 2.1e9
int64 64-bit data -9.2e18 ... 9.2e18
unsignedByte 8-bit data 0 ... 255
unsignedShort 16-bit data 0 ... 65535
unsignedInt 32-bit data 0 ... 4.2e9
uint64 64-bit data 0 ... 1.8e19
float IEEE single-precision 32-bit floating
point type
1.17e-38 ... 3.4e38
double IEEE double-precision 64-bit floating
point type
2.2e-308 ... 1.79e308
