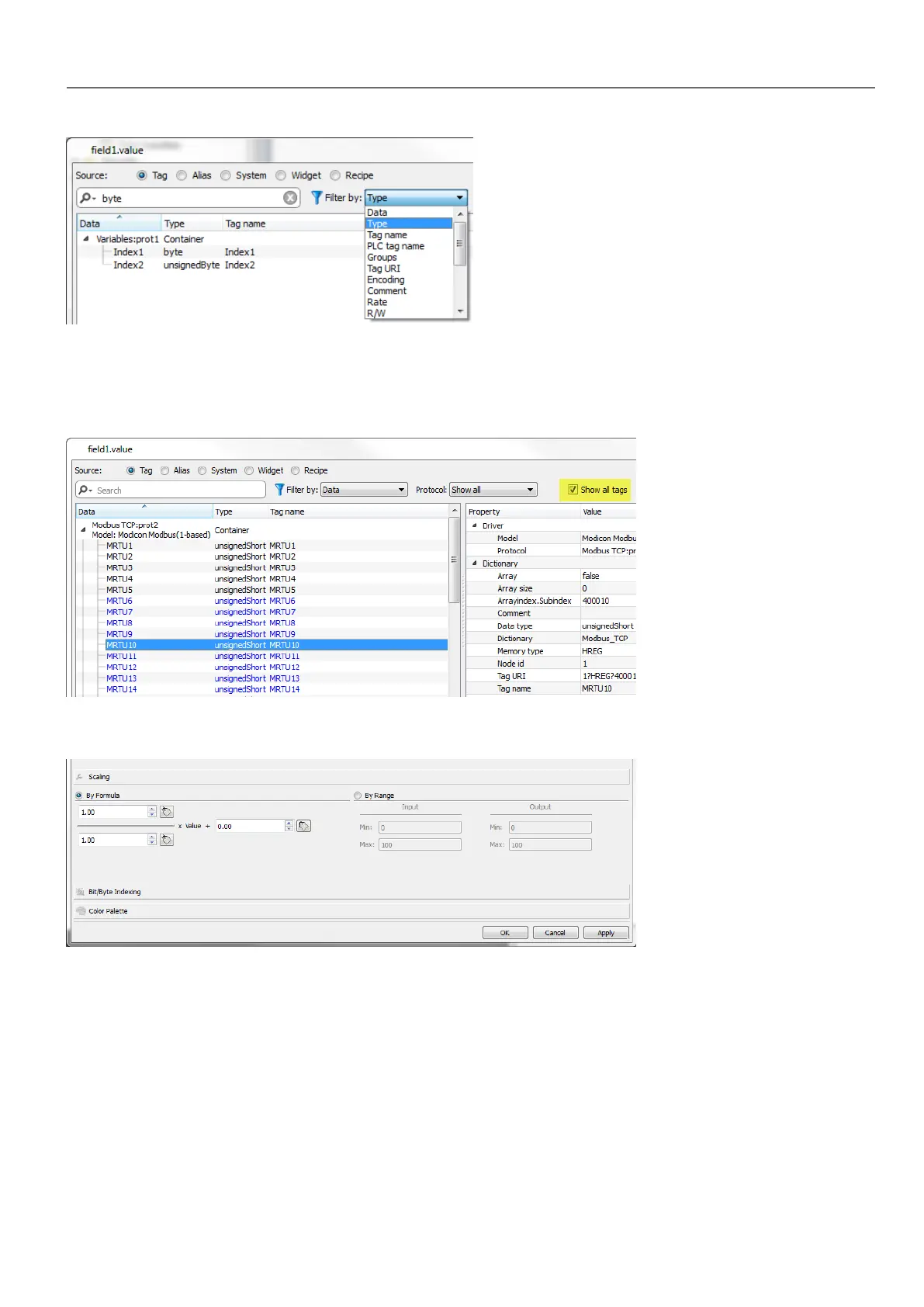

Showing dictionary tags
When Show all tags is checked, tags that belong to one dictionary but have not been imported yet, appear in blue color.
You can select and double-click a tag to import it into the project.
Converting tag value
Scaling tab converts the tag value. In By Range section set the input and output range: the system will automatically
calculate the scaling factors.
Extract tag bit/byte based on index
Allows extracting a single bit or byte content from a word depending on the specified bit or byte number
HMWIN Studio |User Manual| v206 (2017-06-30) | EN| © 2014-2017 Panasonic Electric Works Europe AG
33
4 Programming concepts
