Plate Information Window
Use the Plate Information window to view, add, or change plate
names and measurements. To open the Plate Information window,
select Tools Plate Editor on the LabChip GX Main Window.

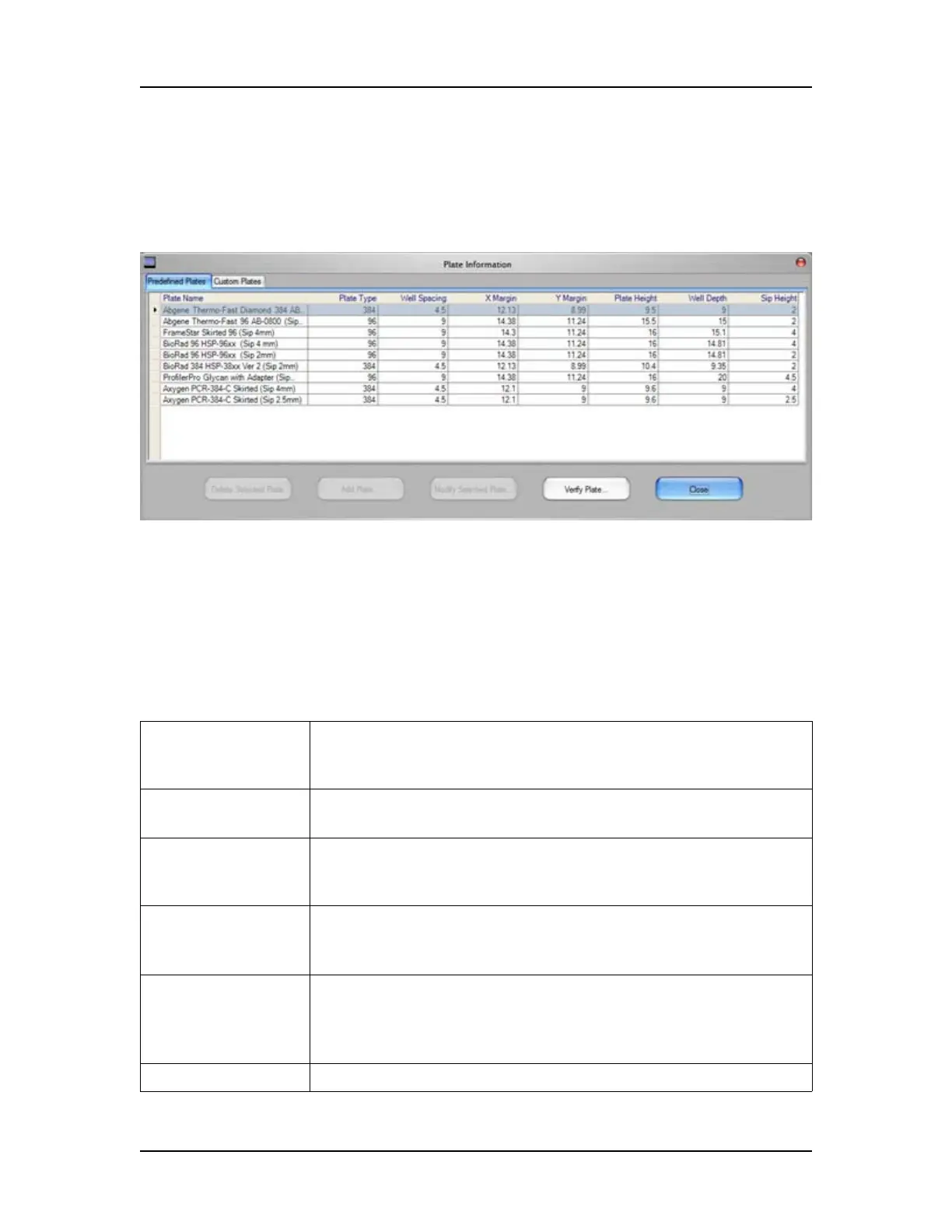

Figure 98. Plate Information Window
The Plate Information window contains the following tabs:
• Predefined Plates - Displays Caliper-defined plates. These
plates are read-only and cannot be edited or deleted.
• Custom Plates - Displays all user-created plates. Plates can be
added, deleted, and modified.
The Plate Information window contains the following options and
buttons:
Plate Information
table
Displays the plate information for each plate defined for use in
the system. (See “Add Plate Window” on page 185 for a
description of each column.)
Delete Selected
Plate
Deletes the selected plate from the system. (Only available
when the Custom Plates tab is selected.)
Add Plate Opens the Add Plate Window to enter the information for a
new plate. (Only available when the Custom Plates tab is
selected.)
Modify Selected
Plate
Opens the Add Plate Window to edit the information for the
selected plate. (Only available when the Custom Plates tab is
selected.)
Verify Plate Opens the Verify Plate window to perform a puncture test
using the selected plate information. Follow the instructions in
the Verify Plate window to test the settings for the selected
plate.
Close button Closes the Plate Information window.
