Operation 40
V4.2 LabChip GX User Manual PerkinElmer
Placing the Barcode on the Plate

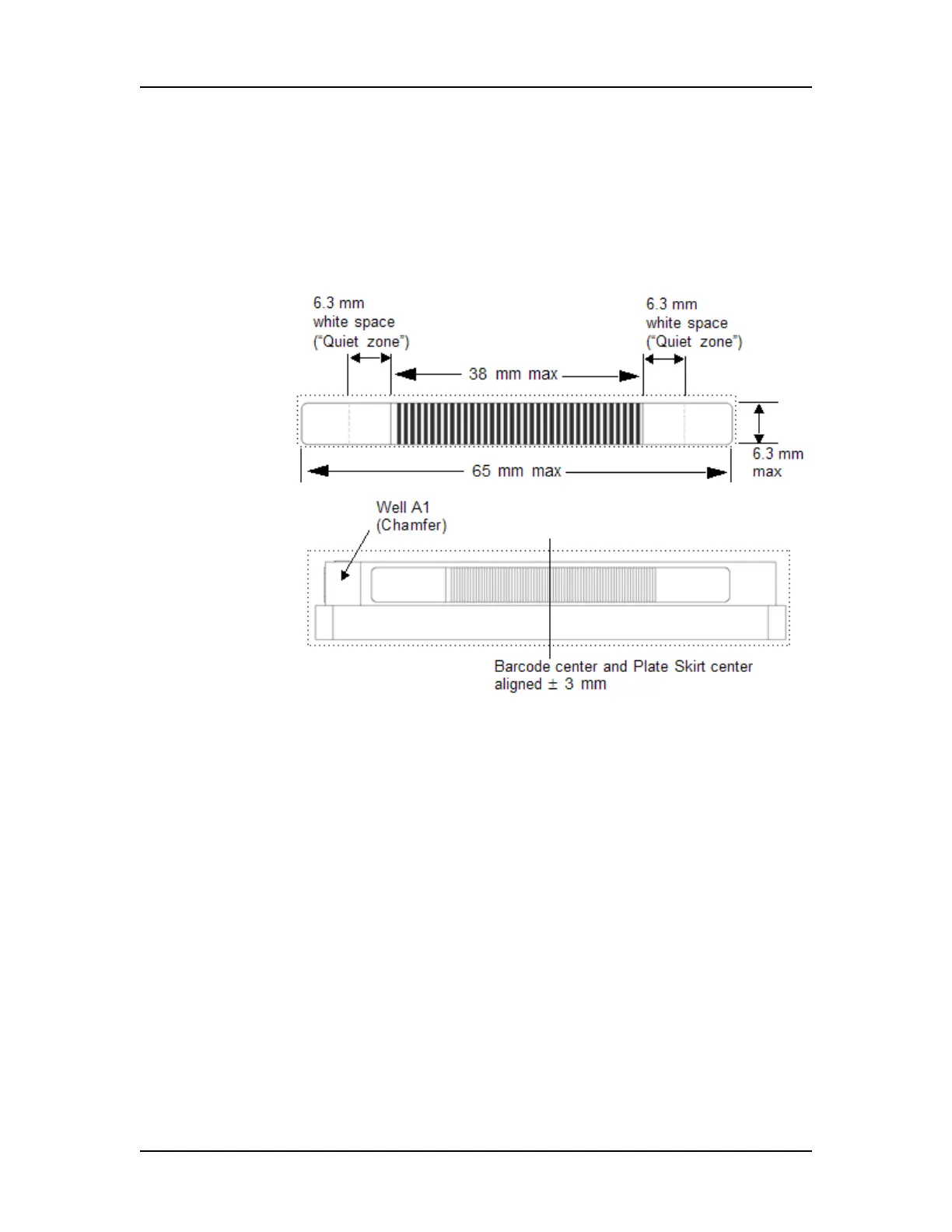

Figure 7 shows the size limits for the barcode label and the location
on the microplate where the label should be placed. The barcode
must be located on the short (portrait) end of the microplate, closest
to well A1. If the barcode is not positioned properly, the barcode
reader will not be able to read the barcode.
Figure 7. Barcode Label Position
