Software Reference 180
V4.2 LabChip GX User Manual PerkinElmer
Filter View
The Filter view in the Collection Pane is used to define criteria to
select wells for a collection automatically. The filter types available
depend on the type of assay that was used to create the data. Each
filter can be assigned a different color to determine which filter
applies to each well. See Example: Expected Peaks Filter for an
example of a filter.

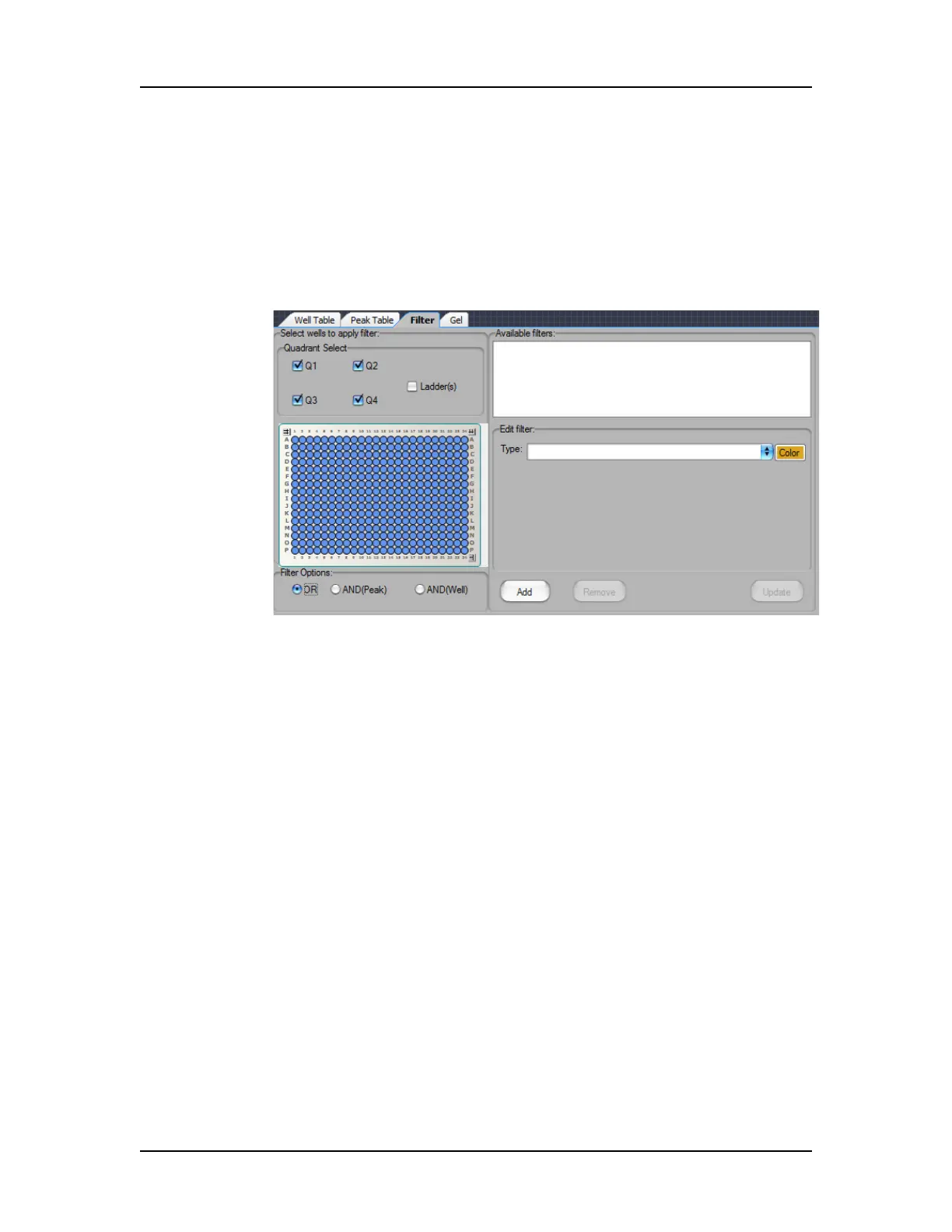

Figure 69. Filter View
One or more filters can be defined independently by selecting the
appropriate filter type, range mode, and range values, and then
clicking the Add button. The Available Filters list box displays all
of the filters that are part of the current collection. The check box
next to each filter in the list is used to include or exclude that filter
from the analysis.
The Filter Options selection determines how multiple filters are
logically combined. The options available are OR, AND(Peak), and
AND(Well).
• OR - Selects any well that contains a peak that matches any of
the filters selected in the Available Filters list.
• AND(Peak) - Selects any well that contains a single peak that
matches all of the filters selected in the Available Filters list.
• AND(Well) - Selects any well that contains peaks that match all
of the filters selected in the Available Filters list. Different peaks
in the same well can match different filters, as long as all filter
conditions are met in the same well.
