Microplate Carrier
The LabChip GX instruments contain a stepper motor driven robot
that moves the microplate to be accessed by the LabChip.

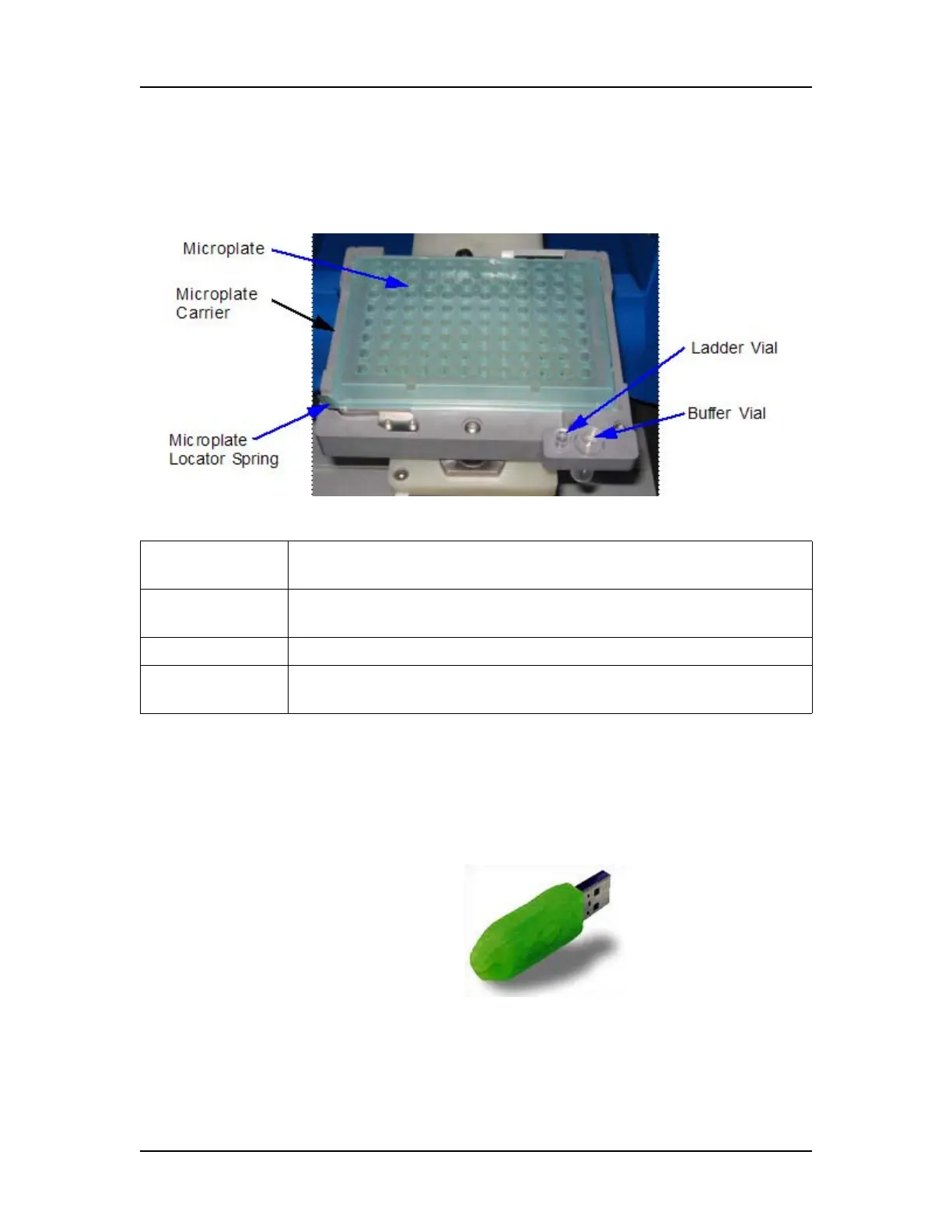

Figure 137. Microplate Carrier Parts
USB Key for 21 CFR Part 11 Option
If the 21 CFR Part 11 option is installed, the USB Key must be
plugged into a USB port on the LabChip GX computer. If the USB
key is not plugged in, the LabChip GX software displays an error
message when starting and then shuts down.
Figure 138. USB Key for 21 CFR Part 11 Option
Microplate
Carrier
Holds the microplate.
Microplate
Locator Spring
Positions the microplate correctly for access by the sipper on the
chip.
Buffer Vial Contains buffer to be accessed by the sipper on the chip.
Ladder Vial Contains ladder standards to be accessed by the sipper on the
chip.
