PerkinElmer LabChip GX User Manual

LabChip GX Instrument Description 270
V4.2 LabChip GX User Manual PerkinElmer
LabChip GX Instrument
Description
This section identifies and describes the hardware components of
the LabChip GX and GX II instruments. All of the components
described in this section are the same for the GX and GX II
instruments. The LabChip GX runs DNA and RNA assays. The
LabChip GX II runs DNA, RNA, Protein, Glycan, and Protein
Charge Variant assays.
This section includes the following topics:
• Front View
• Front Panel
• Rear Connectors
• Optics
• Chip Pressure System
• Barcode Reader
• DNA, RNA, and Protein Chips
• Chip Cartridge
• Microplate Carrier
• USB Key for 21 CFR Part 11 Option
• Specifications
Front View
Figure 129 shows the front view of the LabChip GX and identifies
the parts on the front of the instrument.

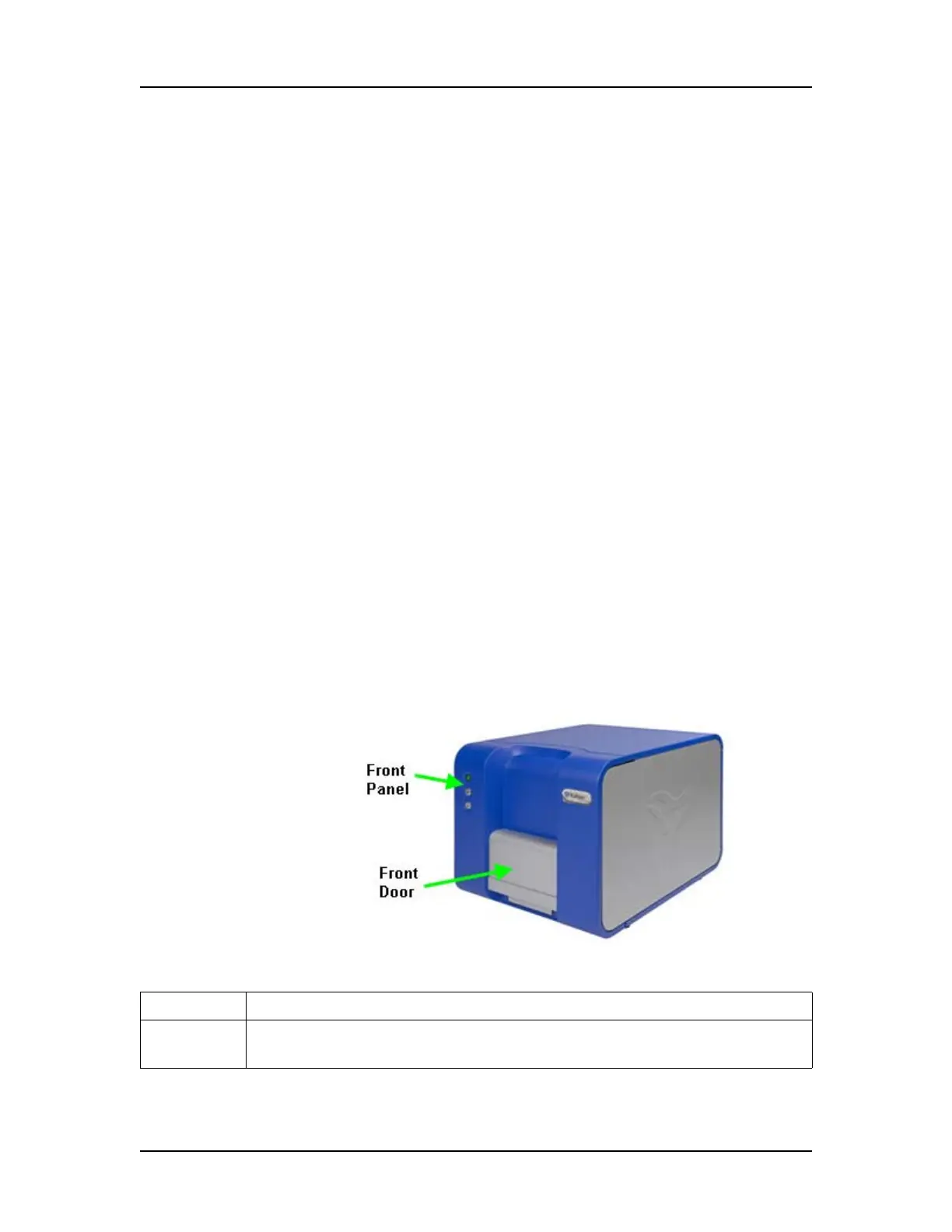

Figure 129. Front View
Front Panel Buttons and indicator light. See “Front Panel” on page 271.
Front Door Opens automatically to provide access to the microplate, chip, buffer
vial, and ladder vial.
