PerkinElmer LabChip GX - DNA, RNA, and Protein Chips

LabChip GX Instrument Description 274
V4.2 LabChip GX User Manual PerkinElmer
DNA, RNA, and Protein Chips
The figures below show the format and parts of the microfluidic
chips used in the LabChip GX instruments to perform DNA, Protein,
RNA, and Glycan sizing and quantitation. (Protein, Glycan, and
Protein Charge Variant assays are only supported on LabChip GX II
instruments.)

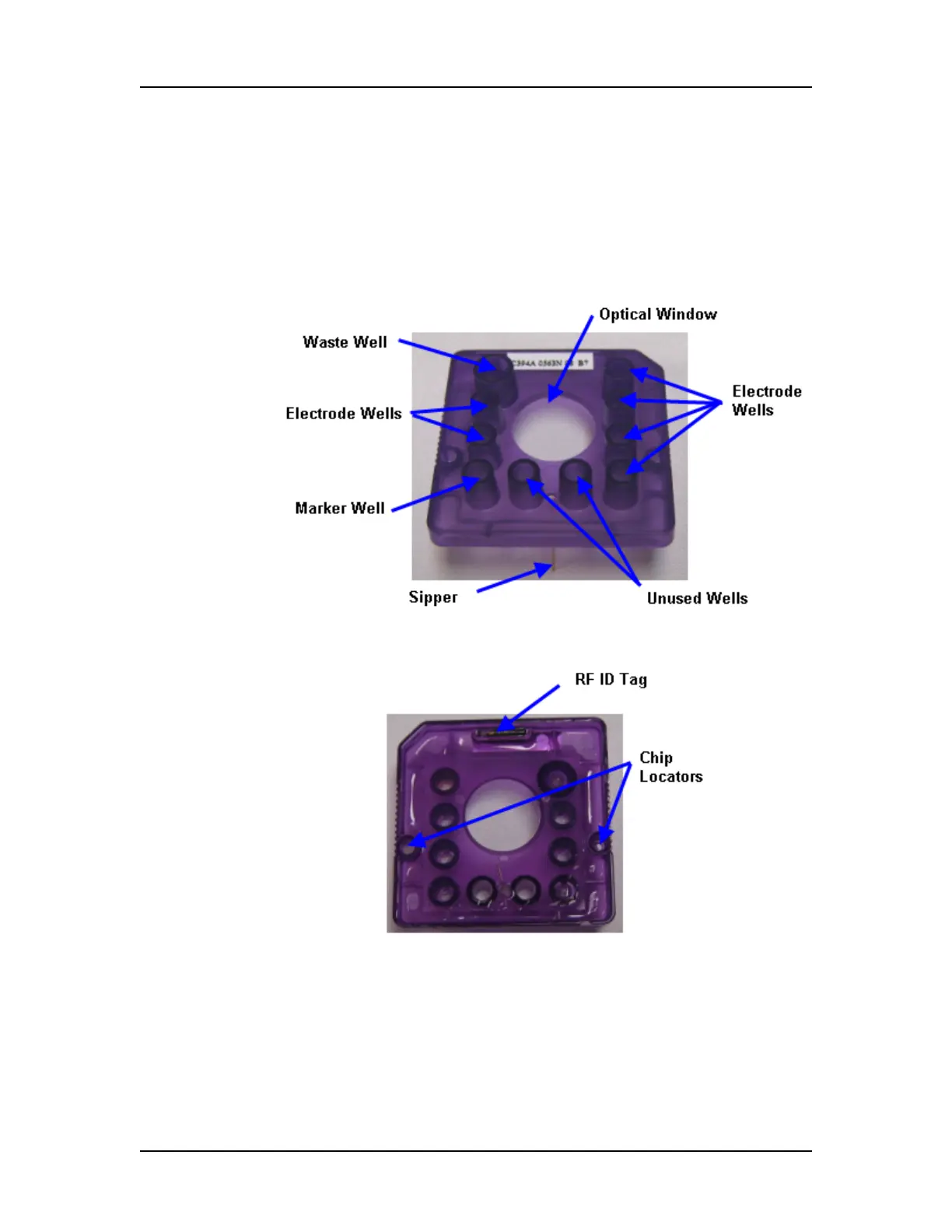

Figure 132. Top of Chip
Figure 133. Bottom of Chip
