Expected Fragments/Proteins/Glycans Tab
Use the Expected Fragments/ Proteins/Glycans tab on the Assay
Analysis Window to enter Expected Fragments for DNA or gDNA
assays, Expected Proteins for Protein assays, Expected Glycans
for Glycan assays, or Expected Peaks for Protein Charge Variant
assays. (See “Using Expected Fragments/ Expected Proteins/
Expected Glycans” on page 67 for more information.) After the data
is analyzed, any peaks matching the expected fragments, proteins,
or glycans are shown in the Peak Table View, Well Table View, Gel
View, and Graph View (if Type is selected as an Annotation in the
Graph View Properties). (Protein, Glycan, and Protein Charge
Variant assays are only supported on LabChip GXII instruments.)

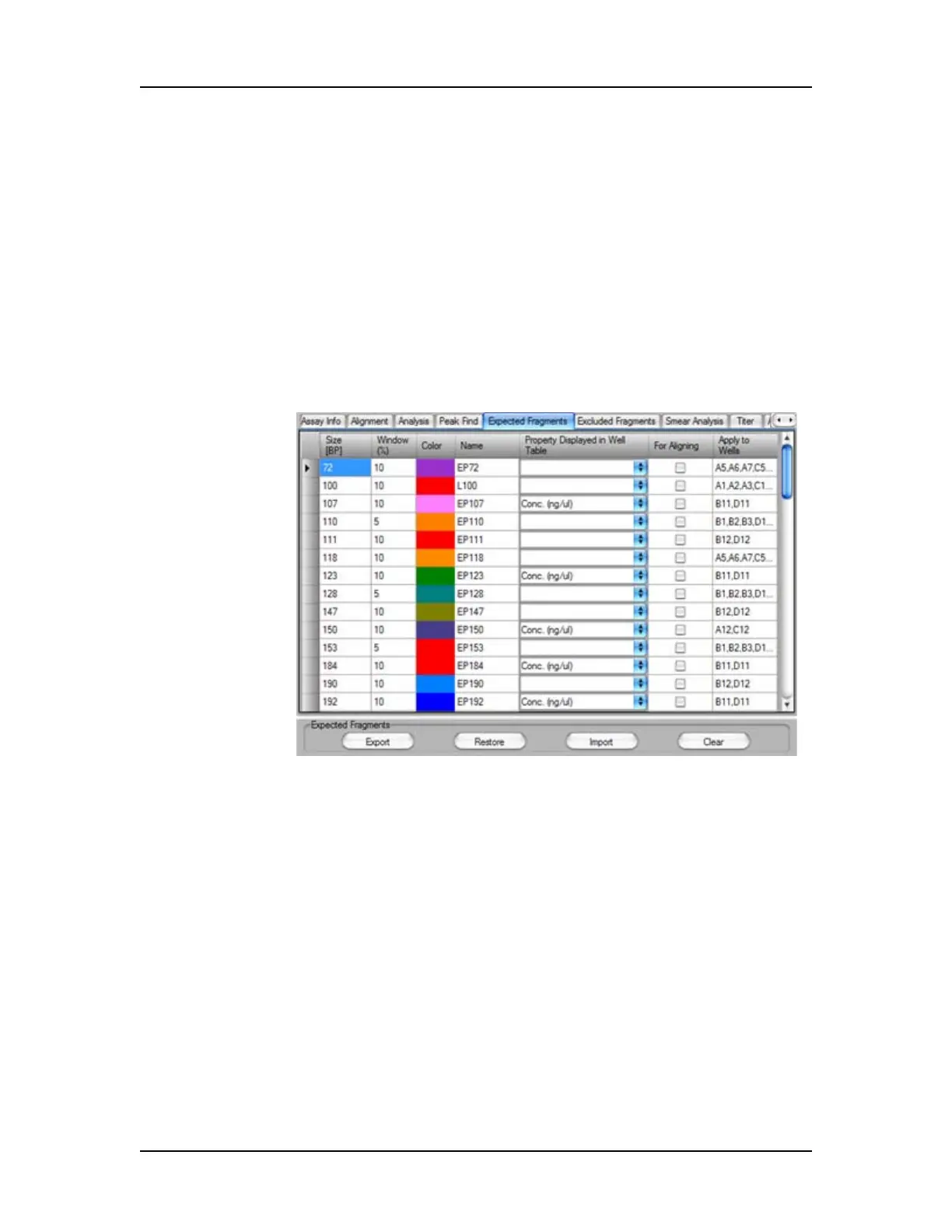

Figure 77. Assay Analysis Window - Expected Fragments Tab
The Expected Fragments/Proteins/Glycan tab contains the
following options and buttons:
Expected Peak Table - Lists the expected peaks for the assay
analysis.
• Size - Specifies the expected size of the peak in BP (DNA), kb
(gDNA), kDa (Protein), or CGU (Glycan).
• Time - Specifies the expected time of the peak (Protein Charge
Variant only).
• Window (%) - Specifies the tolerance window as a percent of
the expected size for the peak to allow for small variations in
expected peak size.
