Siemens Simatic S7 Series System Manual

Program instructions
7.9 PID
S7-200 SMART
System Manual, 09/2015, A5E03822230-AC
273

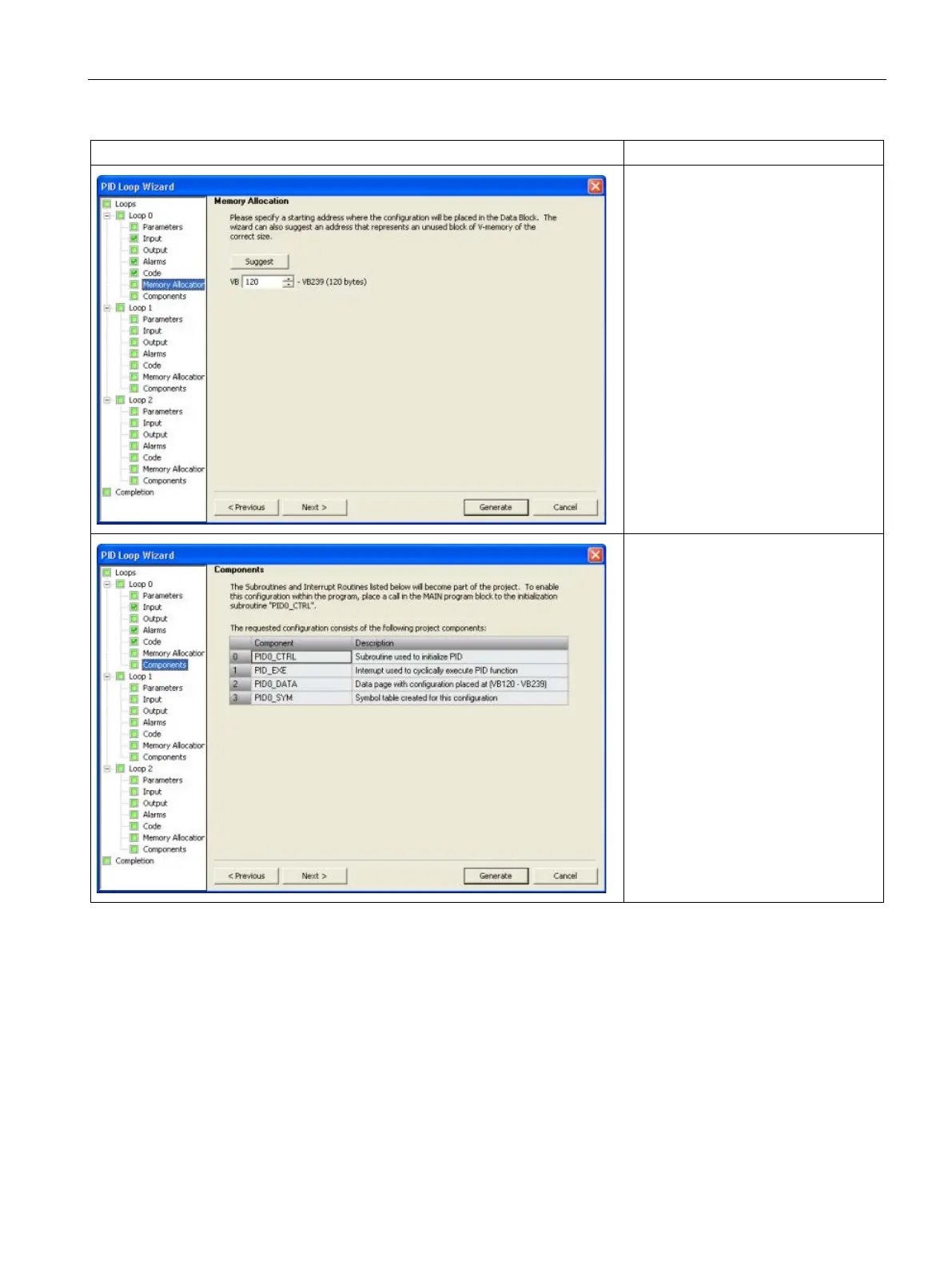

Screen
Description
You can assign the starting address of
the V memory byte where the configu-
ration is placed in the data block. The
wizard can suggest an address that
represents an unused block of
V memory of the correct size.
This screen shows a list of the subrou-
tines and interrupt routines generated
by the PID wizard and gives a brief
description of how these should be
integrated into your program.
STEP 7-Micro/WIN SMART includes a PID tune control panel (Page 476) that allows you to
graphically monitor the behavior of your PID loops. In addition, the control panel allows you
to initiate the auto-tune sequence, abort the sequence, and apply the suggested tuning
values or your own tuning values.
