Program instructions

7.9 PID

S7-200 SMART

272 System Manual, 09/2015, A5E03822230-AC

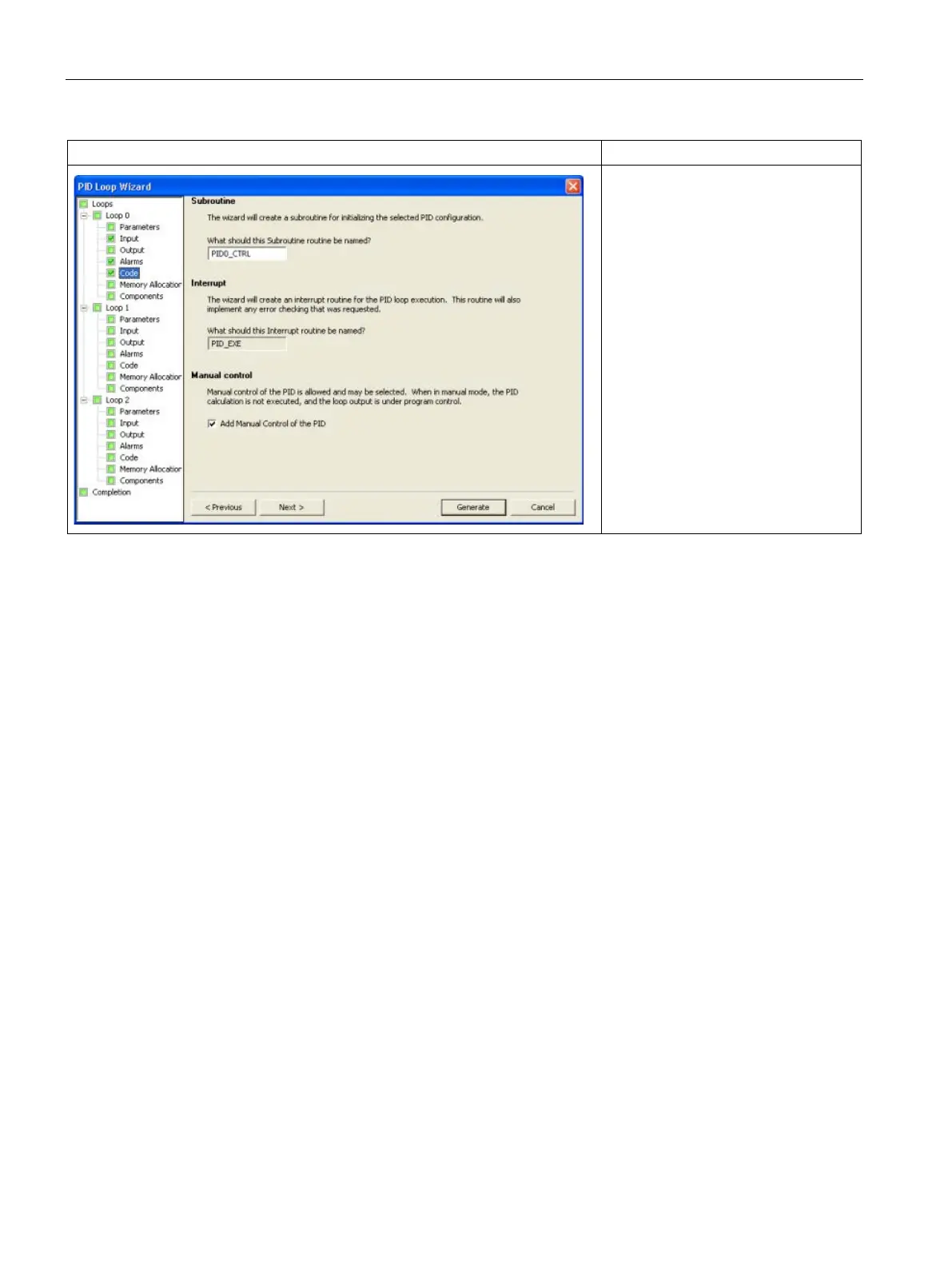

Screen

Description

You can make the following code

selections:

• Subroutine: The PID wizard cre-

ates a subroutine for initializing the

selected PID configuration.

• Interrupt: The PID wizard creates

an interrupt routine for the PID loop

execution.

Note: The wizard assigns a default

name for the subroutine and the in-

terrupt routine; you can edit the de-

fault names.

• Manual control: Use the "Add

Manual Control of the PID" check-

box to allow manual control of your

PID loops.
