Program instructions
7.13 Program control
S7-200 SMART
308 System Manual, 09/2015, A5E03822230-AC
LAD
STL
End of SCR region for state 2.
Network 9
SCRE

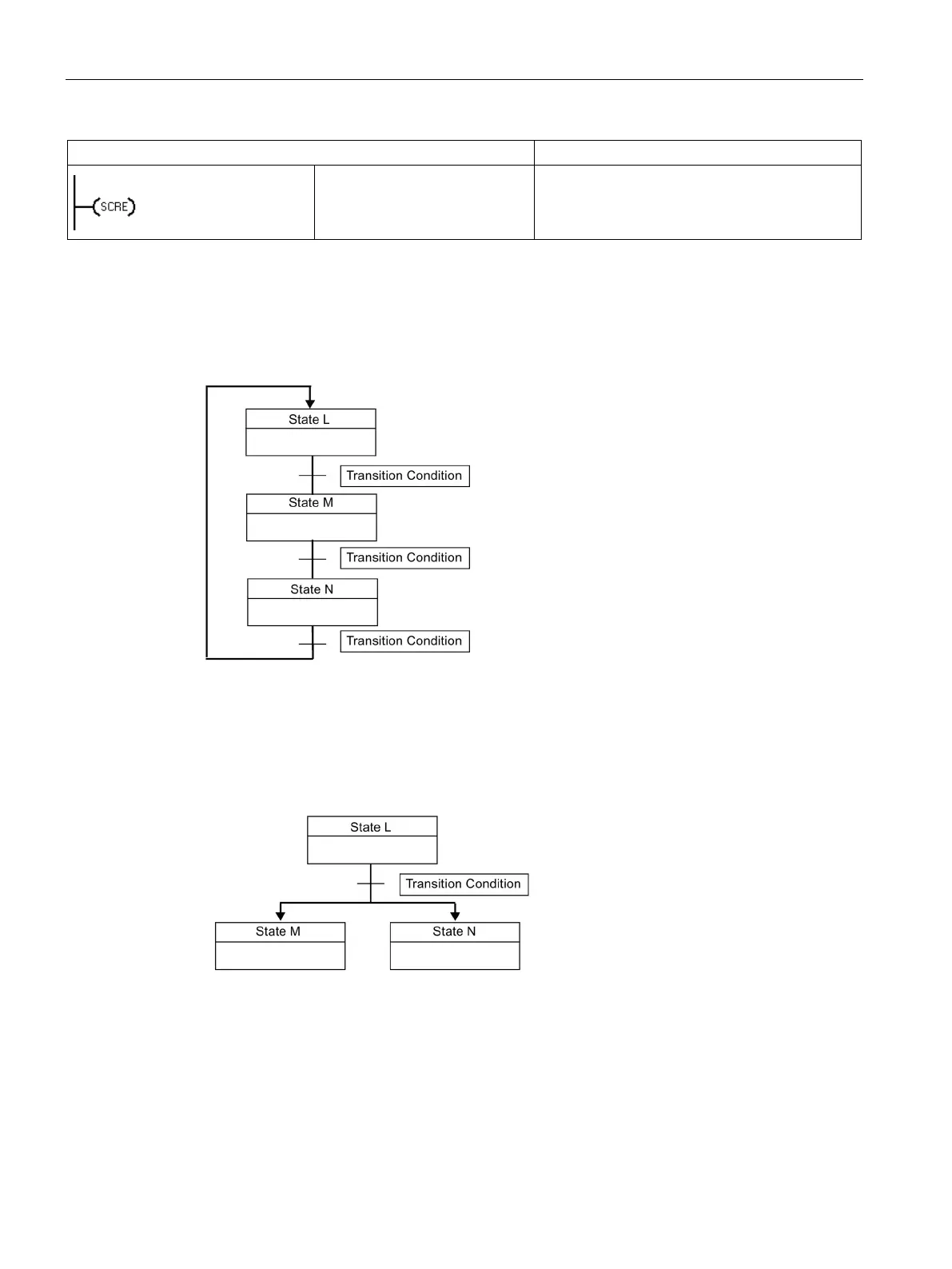

Sequential control flow
A process with a well-defined sequence of steps is easy to model with SCR segments. For
example, consider a cyclical process, with 3 steps, that should return to the first step when
the third has completed.
Divergent control flow
In many applications, a single stream of sequential states must be split into two or more
different streams. When a control stream diverges into multiple streams, all outgoing streams
must be activated simultaneously.
