Communication
8.4 Ethernet
S7-200 SMART
364 System Manual, 09/2015, A5E03822230-AC

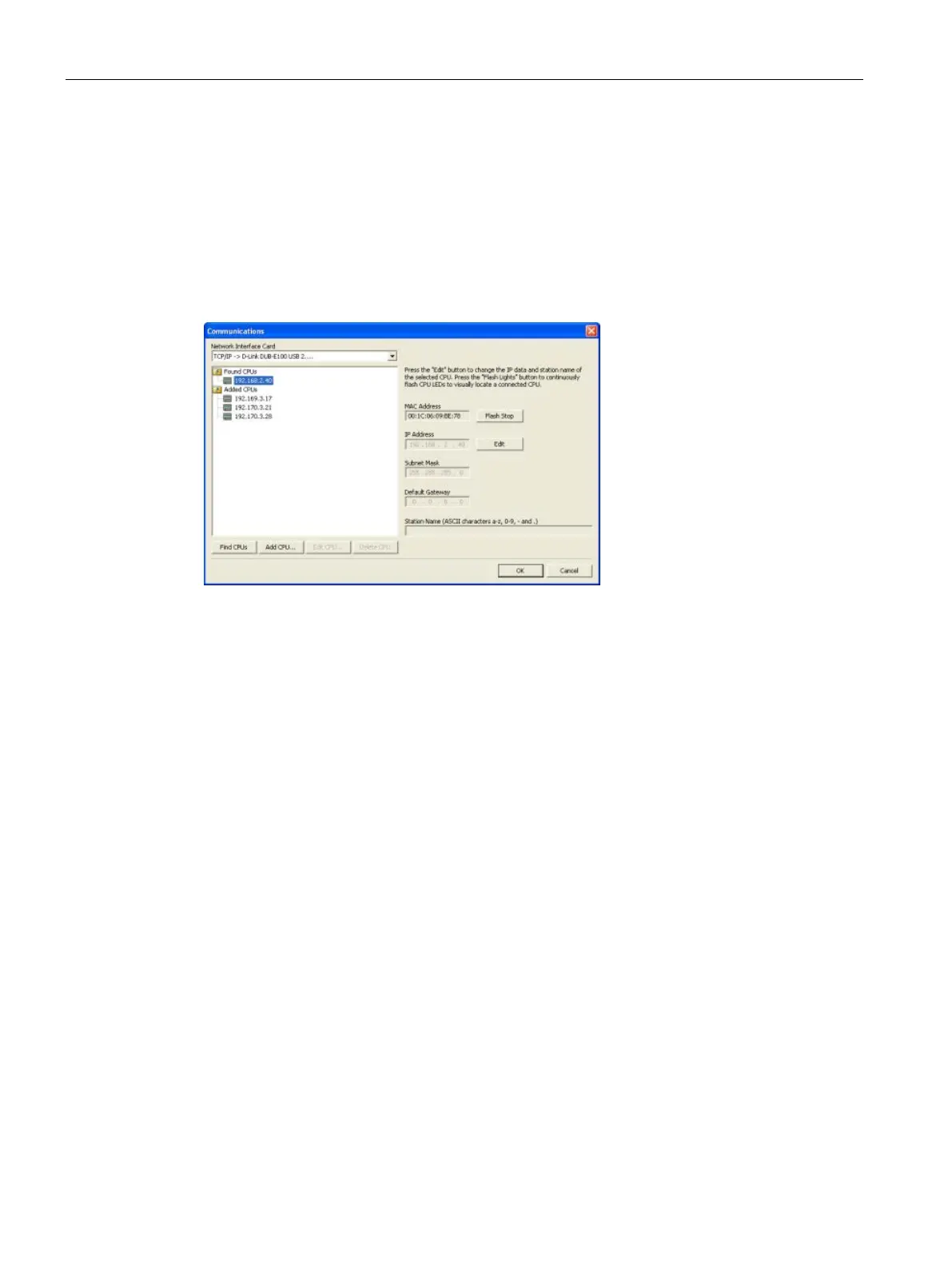

For "Found CPUs" (CPUs located on your local network), use the "Communications dialog"
to connect with your CPU:
● Click the "Network Interface Card" dropdown list, and select the "TCP/IP" Network
Interface Card (NIC) for your programming device.
● Click the "Find CPUs" button to display all operational CPUs ("Found CPUs") on the local
Ethernet network. All CPUs have a default IP address.
● Highlight a CPU, and then click "OK".
For "Added CPUs" (CPUs on the local or remote networks), use the "Communications
dialog" to connect with your CPU:
● Click the "Network Interface Card" dropdown list, and select the "TCP/IP" Network
Interface Card (NIC) for your programming device.
● Click the "Add CPU" button to do one of the following:
– Enter the IP address of a CPU that is accessible from the programming device, but is
not on the local network.
You can add these CPUs, select them as the communication partner in STEP
7-Micro/WIN SMART, and program and operate these CPUs in the same way you
would a CPU on the local network. As long as there is a valid network path through
routers, STEP 7-Micro/WIN SMART can communicate with any S7-200 SMART CPU.
– Enter the IP address of a CPU directly that is on the local network.
You can add multiple CPUs, on the local network and/or remote network. As always,
STEP 7-Micro/WIN SMART communicates with one CPU at a time. All CPUs have a
default IP address.

Siemens Simatic S7 Series Specifications

General

CPU	Varies by model (e.g., S7-300, S7-400, S7-1200, S7-1500)
Communication Interfaces	PROFIBUS, PROFINET, Ethernet, MPI
Programming	TIA Portal, STEP 7
Programming Languages	LAD, FBD, STL, SCL, GRAPH
I/O Modules	Digital, Analog, Specialty modules available
Operating Temperature	0°C to 60°C (standard models)
Mounting	DIN rail mounting
Operating Voltage	24V DC or 120/230V AC (varies by model)
Protection Class	IP20 (standard models)
Memory	Varies depending on the S7 model. Includes work memory (RAM) for program execution, load memory (EEPROM or Flash) for program storage, and system memory for operating system functions. Memory sizes range from kilobytes to megabytes.
