Open loop motion control
12.10 Advanced topics
S7-200 SMART
System Manual, 09/2015, A5E03822230-AC
557
Table 12- 49 Special memory area definition for the Axis of Motion 0
SM address
Description
SMB600 to SMB615
Axis name (16 ASCII characters). SMB600 is the first character: "Axis 0"
SMB616 to SMB619 Reserved
SMW620
Axis 0: Error code (See "Axis of Motion error codes" (Page 544) list.)

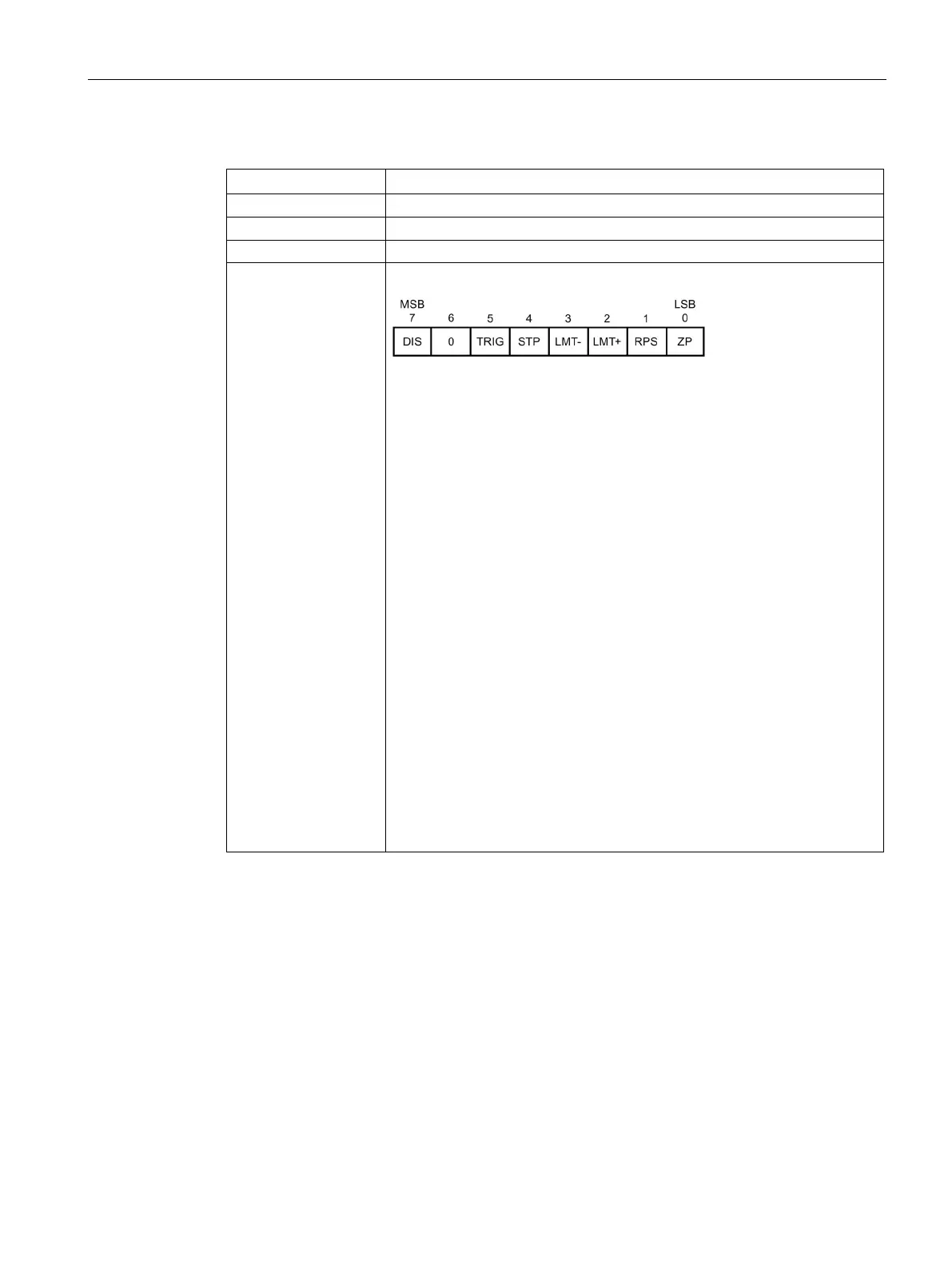

SMB622 Axis 0: Input/output status: Reflects the status of the inputs and outputs
• DIS (Disable outputs):
– 0 = No current flow
– 1 = Current flow
• TRIG (Stop input):
– 0 = No current flow
– 1 = Current flow
• STP (Stop input):
– 0 = No current flow
– 1 = Current flow
• LMT- (Negative travel limit input):
– 0 = No current flow
– 1 = Current flow
• LMT+ (Positive travel limit input):
– 0 = No current flow
– 1 = Current flow
• RPS (Reference point switch input):
– 0 = No current flow
– 1 = Current flow
• ZP (Zero pulse input):
– 0 = No current flow
– 1 = Current flow

Siemens Simatic S7 Series Specifications

General

CPU	Varies by model (e.g., S7-300, S7-400, S7-1200, S7-1500)
Communication Interfaces	PROFIBUS, PROFINET, Ethernet, MPI
Programming	TIA Portal, STEP 7
Programming Languages	LAD, FBD, STL, SCL, GRAPH
I/O Modules	Digital, Analog, Specialty modules available
Operating Temperature	0°C to 60°C (standard models)
Mounting	DIN rail mounting
Operating Voltage	24V DC or 120/230V AC (varies by model)
Protection Class	IP20 (standard models)
Memory	Varies depending on the S7 model. Includes work memory (RAM) for program execution, load memory (EEPROM or Flash) for program storage, and system memory for operating system functions. Memory sizes range from kilobytes to megabytes.
