Wartsila RT-flex50-D - Arrangement of Thrust Bearing Pads for 5;6 Cylinder Engines

Maintenance1224−1/A1 RT-flex50-D
Wärtsilä Switzerland Ltd
4/ 6
PADS FOR ASTERN
ENGINE SIDEDRIVING END
SUPPORT SURFACE
VIEW FROM DRIVING END
PADS ON ENGINE SIDE
VIEW FROM DRIVING END
PADS AT DRIVING END
AHEADASTERN
CLOCKWISE
ROTATING ENGINE

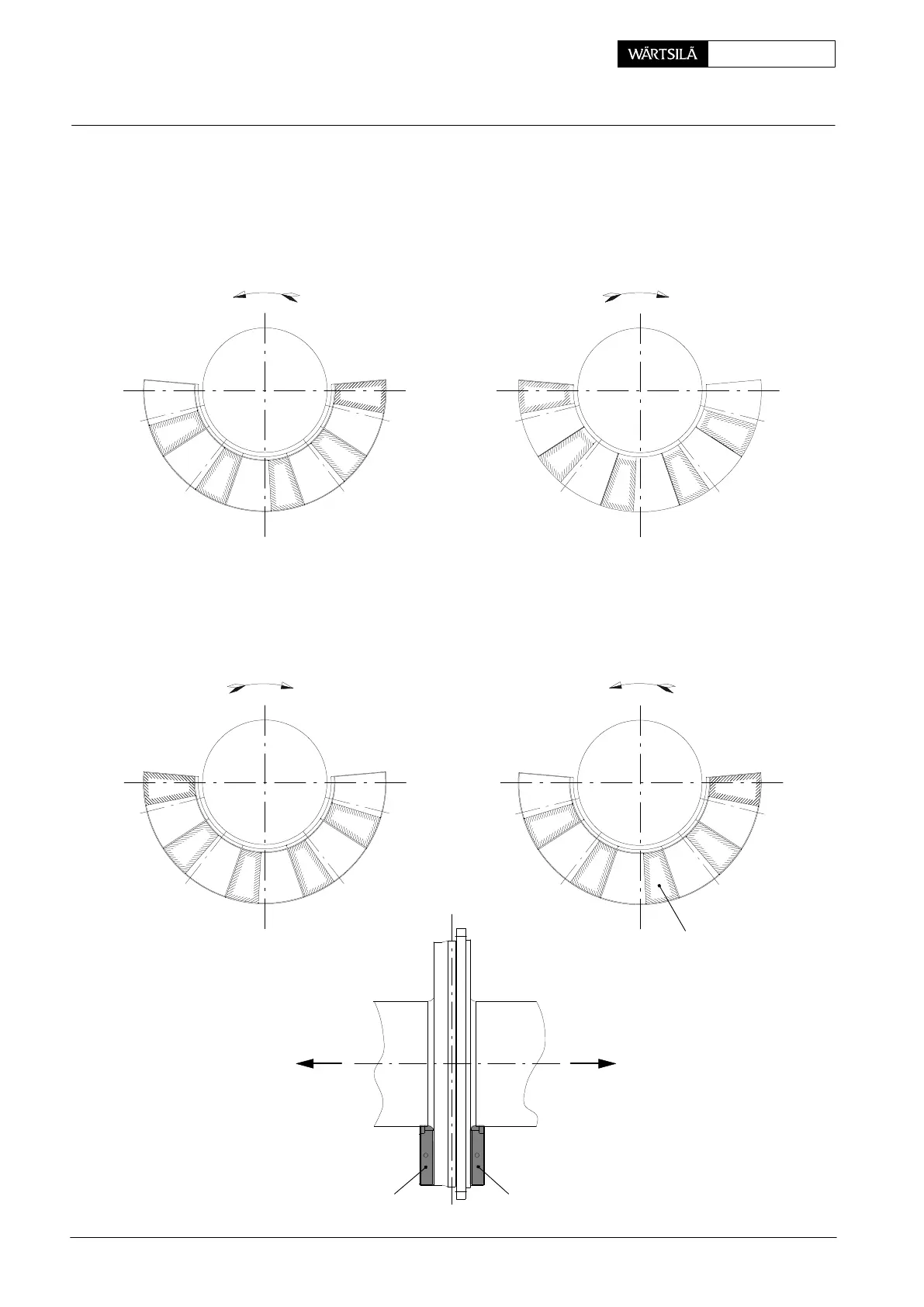

ARRANGEMENT OF THRUST BEARING PADS
COUNTER-CLOCKWISE
ROTATING ENGINE
PADS FOR AHEAD
AHEADASTERN
FOR 5 & 6 CYLINDER ENGINES
WITH FIXED PITCH PROPELLER
012.833/05
PROPELLER THRUST
AHEAD
PROPELLER THRUST
ASTERN
2010
Removal and Fitting the Thrust Bearing Pads
