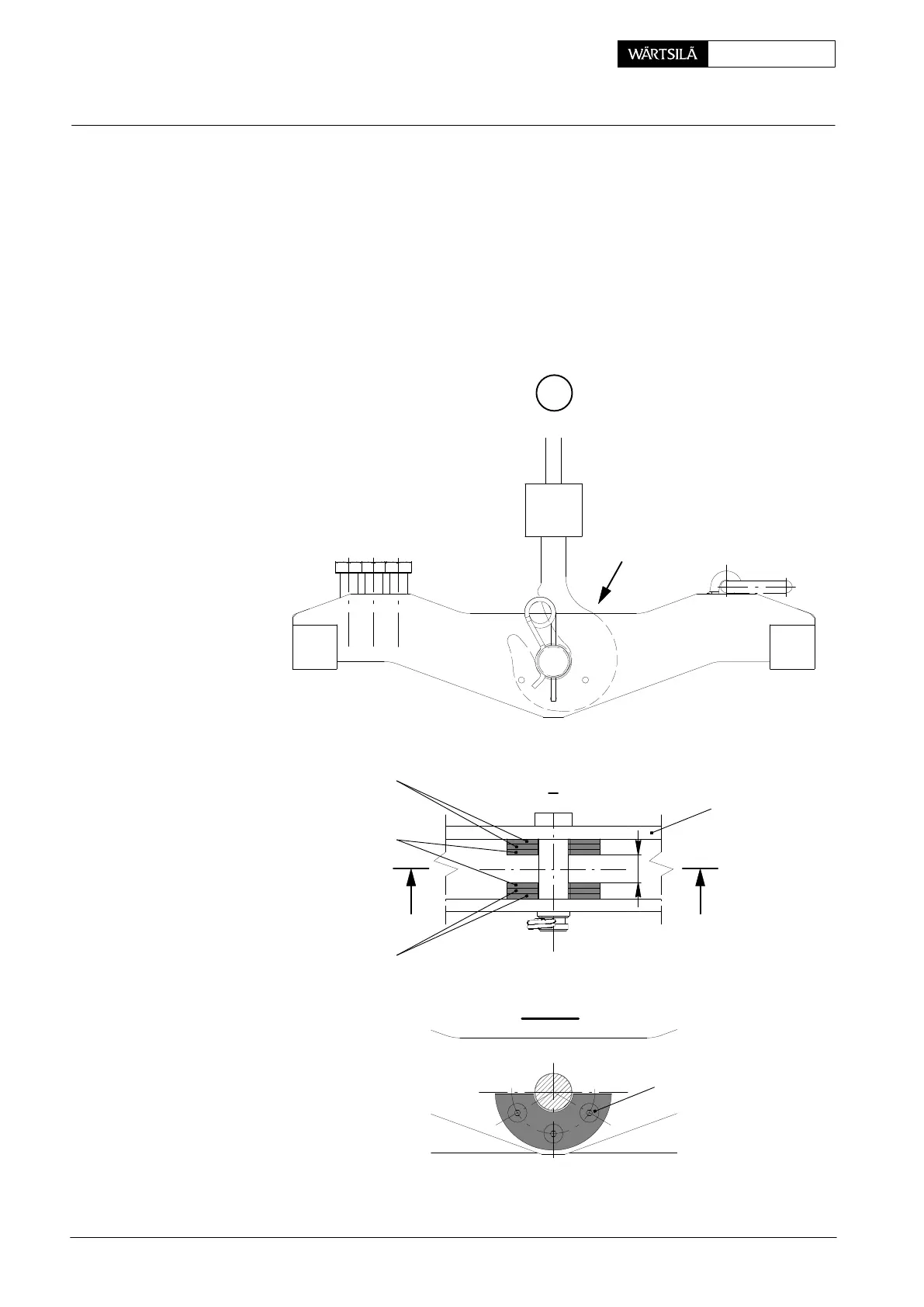

1.1 Adjusting lifting gear to crane hook
Distance ’x’ must be adjusted so that an axial clearance of 2−5 mm results be-
tween the relevant crane hook and distance plates 94202b.
Therefore loosen slotted countersunk-head screws 12 and remove them with dis-
tance plates 94202b and 94202c.
Subsequently distance plates 94202c have to be machined to the determined
thickness and then refitted with distance plates 94202b.
A
I
12
II
II
I
II - II
x
012.886/05
94202c
94202b
94202c
94202
2010
