Wartsila RT-flex50-D - Pre-Tensioning Jack for Waisted Stud to Piston Crown

Maintenance
9403−3/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
9/ 9

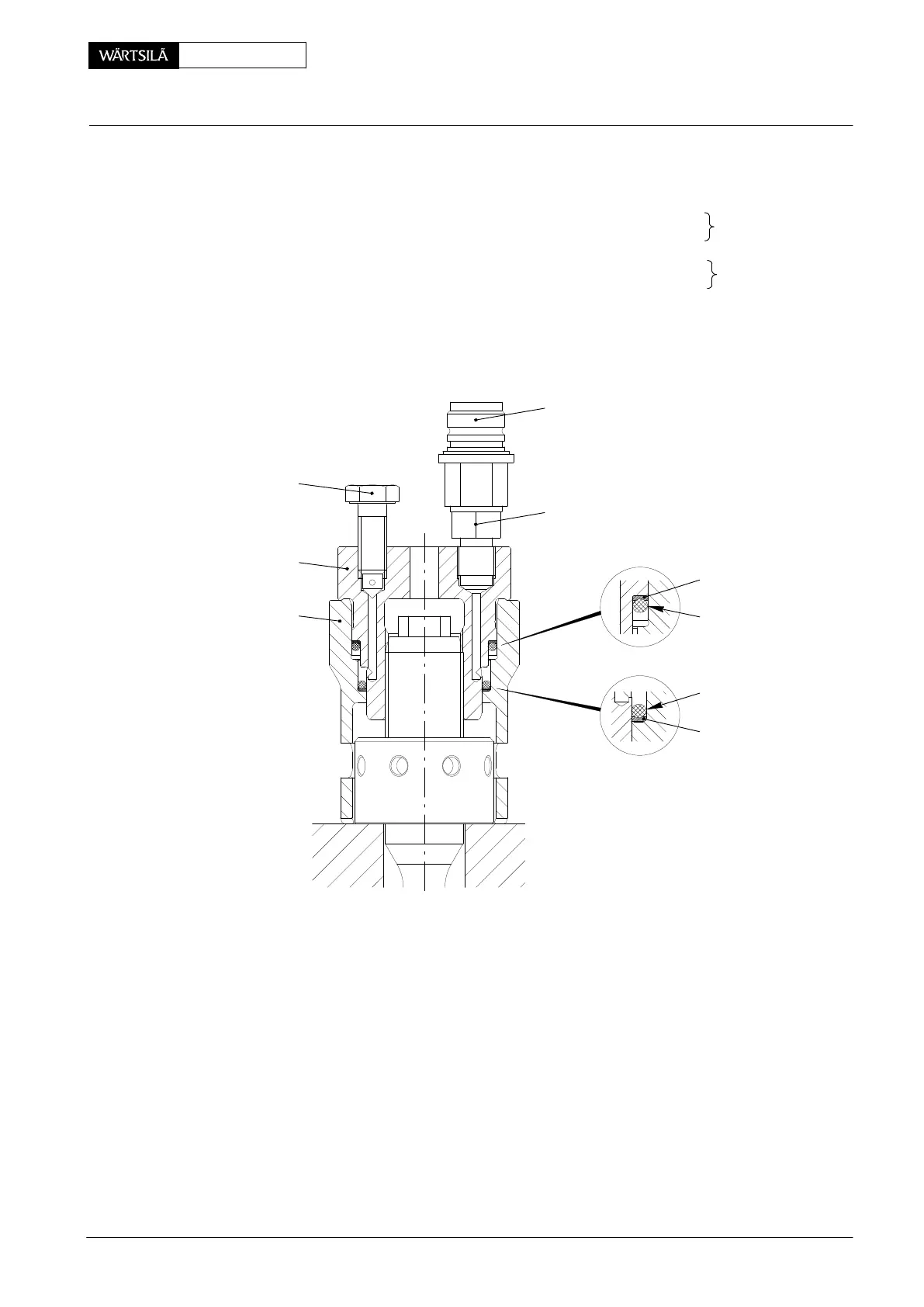

Tool 94346 Pre-tensioning jack
for waisted stud to piston crown
1 Piston 6 Back-up ring
O-ring
Sealing
ring
2 Cylinder 7
3 Vent screw 8 Back-up ring
O-ring
Sealing ring
4 Adapter 9
5 Connection piece
016.651/08
6
7
9
8
3
5
1
2
4
2010
Hydraulic Pre-tensioning Jacks: Storing, Servicing and Maintenance
