4. Removal of piston
4.1 Adjusting suspension device to crane hook

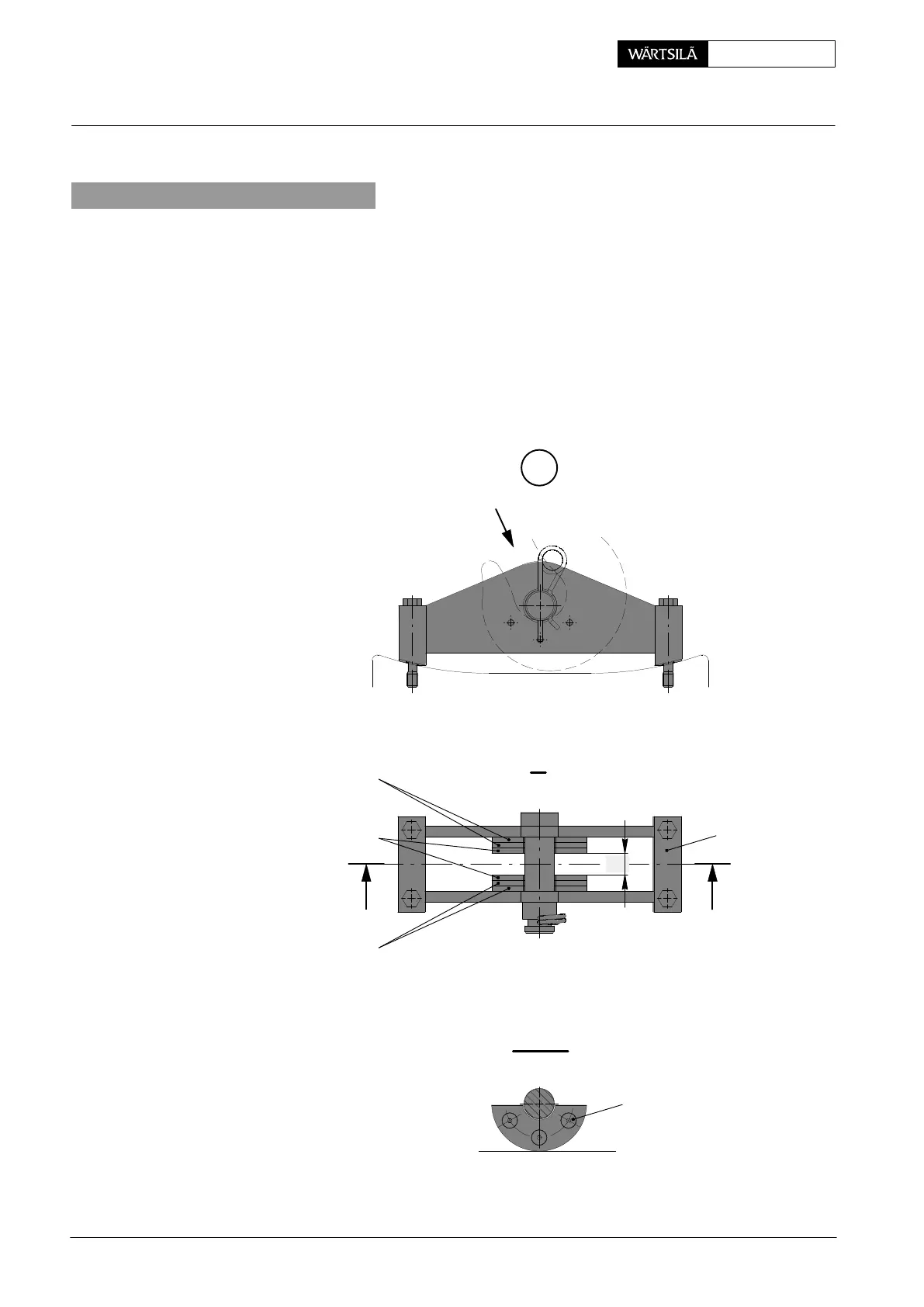

Distance ’x’ must be adjusted so that an axial clearance of 2−5 mm results be-
tween the relevant crane hook and distance plates 94341a.
Therefore loosen slotted countersunk-head screws 19 and remove them with dis-
tance plates 94341a and 94341b.
Subsequently distance plates 94341b have to be machined to the determined
thickness and then refitted with distance plates 94341a.
C
013.255/05
II - II
I
I
II II
94341b
94341a
94341b
19
x
94341
2010
Piston: Removal and Fitting
