Maintenance0012−1/A1 RT-flex50-D
Wärtsilä Switzerland Ltd
2/ 5

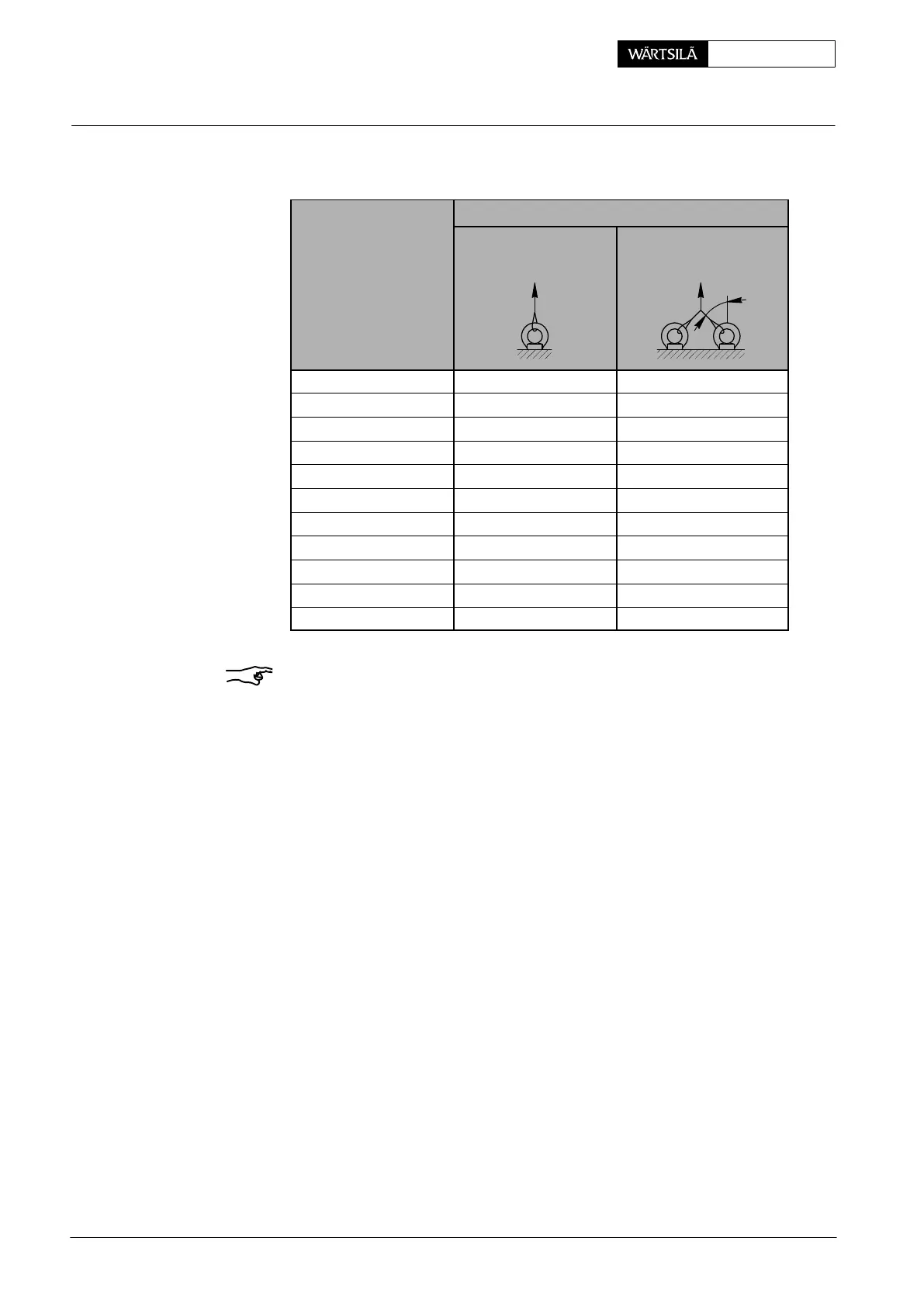

Lifting capacity (for information purposes only):
Eye bolts &
eye nuts,
thread size
Lifting capacity [kg]
single-strand double-strand (45°)
1)
45
_
M8 140 100
M10 230 170
M12 340 240
M16 700 500
M20 1200 860
M24 1800 1290
M30 3200 2300
M36 4600 3300
M42 6300 4500
M48 8600 6100
M56 11 500 8300
Remarks: The details listed in the table above are based on DIN 580 &
582:2003−08, requiring that the eye bolt or the eye nut:
− is completely turned in or screwed down;
− lies flat and fully on the seating surface;
− was checked for visible damages (
e.g. corrosion, deformation) before using it.
−
1)
Full load is only permissible in the direction of the ring, therefore the
eye bolts or eye nuts must be brought to the right position, if necessary by us-
ing distance rings.
D If there are through holes, a washer should be placed from the opposite side
under the nut or screw head.
D Whenever possible, do not apply an angle of inclination bigger than 45° (in all
directions with regard to the ring level), and especially avoid lateral pulling!
D For varying use on different objects to be carried, eye nuts or eye bolts with
thread diameters one size higher should be used.
2.4 RUD-eye bolts and RUD-swivel lugs
Only those RUD-eye bolts & RUD-swivel lugs may be used with a safety factor 4.
Manufacturer:
RUD Ketten
Rieger & Dietz GmbH u. Co
Friedensinsel
D−73432 Aalen
Germany
http://www.rud.com
eneral Guidelines: Wire Rope Slings, Span-sets, Eye Bolts, etc.
