4. Removal and fitting of water guide jacket
4.1 Removal
Risk of accident! Due to tilting risk, only remove water guide jacket 3 from cylinder
liner 2, if the latter is located in the cylinder block!
D Pay attention to instructions in section 1.
D Lifting gear 94202 must be placed according to paragraph 2.1.
⇒ Loosen all screws 13.

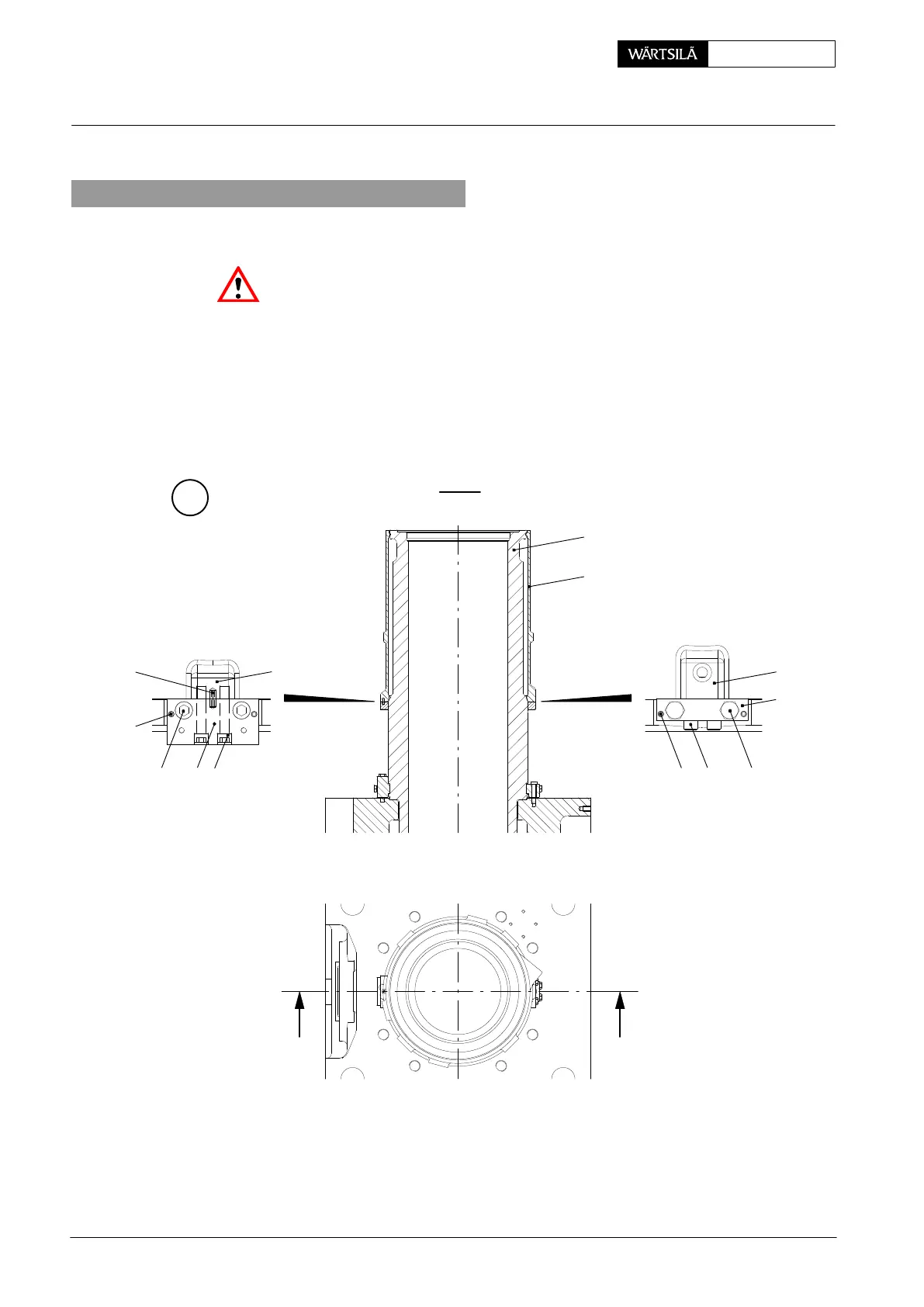

⇒ Carefully lift water guide jacket (Fig. ’G’).
F
016.506/08
FUEL SIDE
I I
I - I
3
15 16a 13
14
14a 3
16
14 13 15
3
2
2010
Removal and Fitting of Cylinder Liner or Water Guide Jacket
