Maintenance
2124−2/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
9/ 9
6. Laying down and raising cylinder liner
⇒ Place lifting gear 94202 according to paragraph 5.1.1.

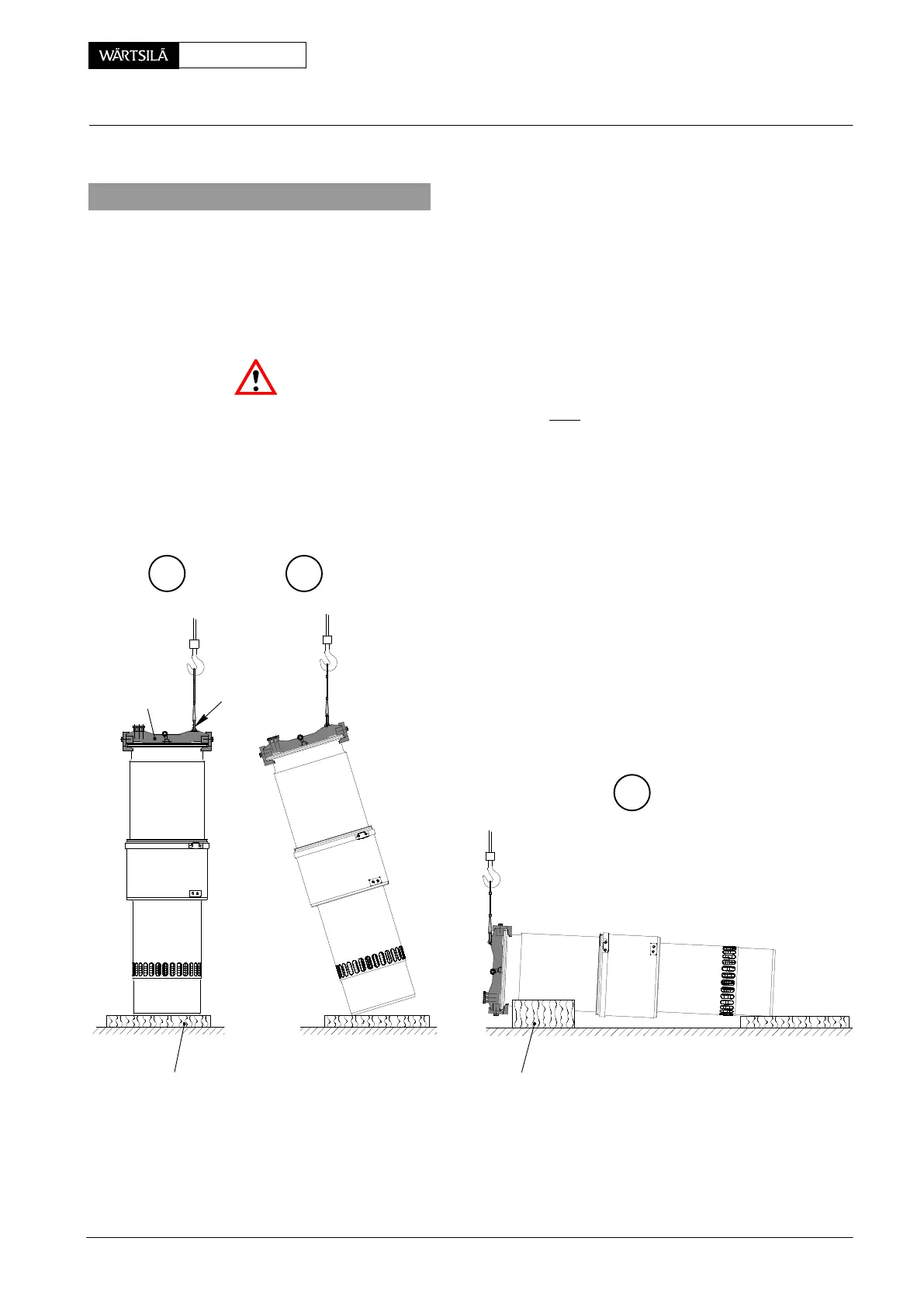

⇒ Connect rope ’a’ (lifting capacity 3000 kg) with crane and lifting ring 17. Lay
down the cylinder liner and secure it against rolling away as shown in the fig-
ures below.
D Raising the cylinder liner is carried out in reversed sequence.
Risk of accident! Laying down and raising a cylinder liner must not be done
in any other way than as shown in the figures!
Never lay down the cylinder liner with
fitted water guide jacket or insulation
bandage!
An insulation bandage can easily be removed from the cylinder liner disengaging
the tension springs by means of tool 94345e.
a
I K
L
012.892/05
HUHU
94202 17
a
2010
Removal and Fitting of Cylinder Liner or Water Guide Jacket
To Next Page
