3. Regrinding of sealing faces ’DF’
3.1 With regrinding device 94870
In order to achieve a clean and smooth sealing face the following regrinding pro-
cess is recommended. For deep notches > 0.1 mm choose emery cloth of medium
to coarse grade. Once the deep notches have been ground off, use a fine or ultra
fine emery cloth.
D
E
016.738/08
016.738/08
94870d
EC
94870b
GRAINED FACE
TIGHTENED
CONDITION

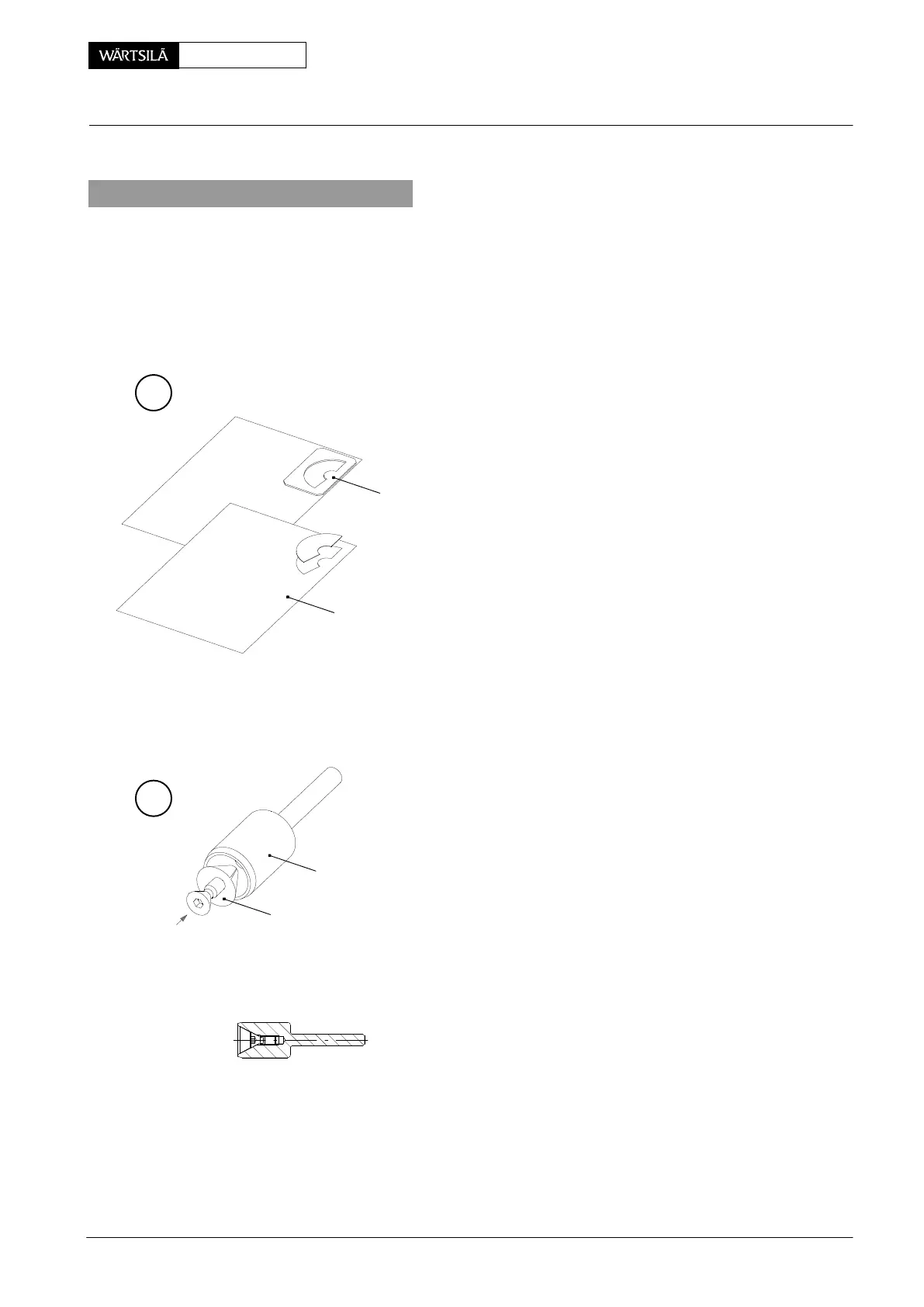

⇒ Place template 94870d on the back of emery clo
th
’EC’ .
⇒ Trace inner contour using a pointed pencil or a ba
ll
pen.
⇒ Cut out precisely the traced contour.
⇒ Shape the cut cloth in a manner to obtain a cone wi
th
the grained face being turned inward.
⇒ Place the emery cloth in the cone of the grinding to
ol
94870b and fix it by means of its countersunk screw
.
2010
Fuel Pressure Piping: Removing, Fitting and Regrinding of Sealing Faces
