Wartsila RT-flex50-D - Pre-Tensioning Jack for Waisted Stud to Cylinder Cover

Maintenance
9403−3/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
3/ 9

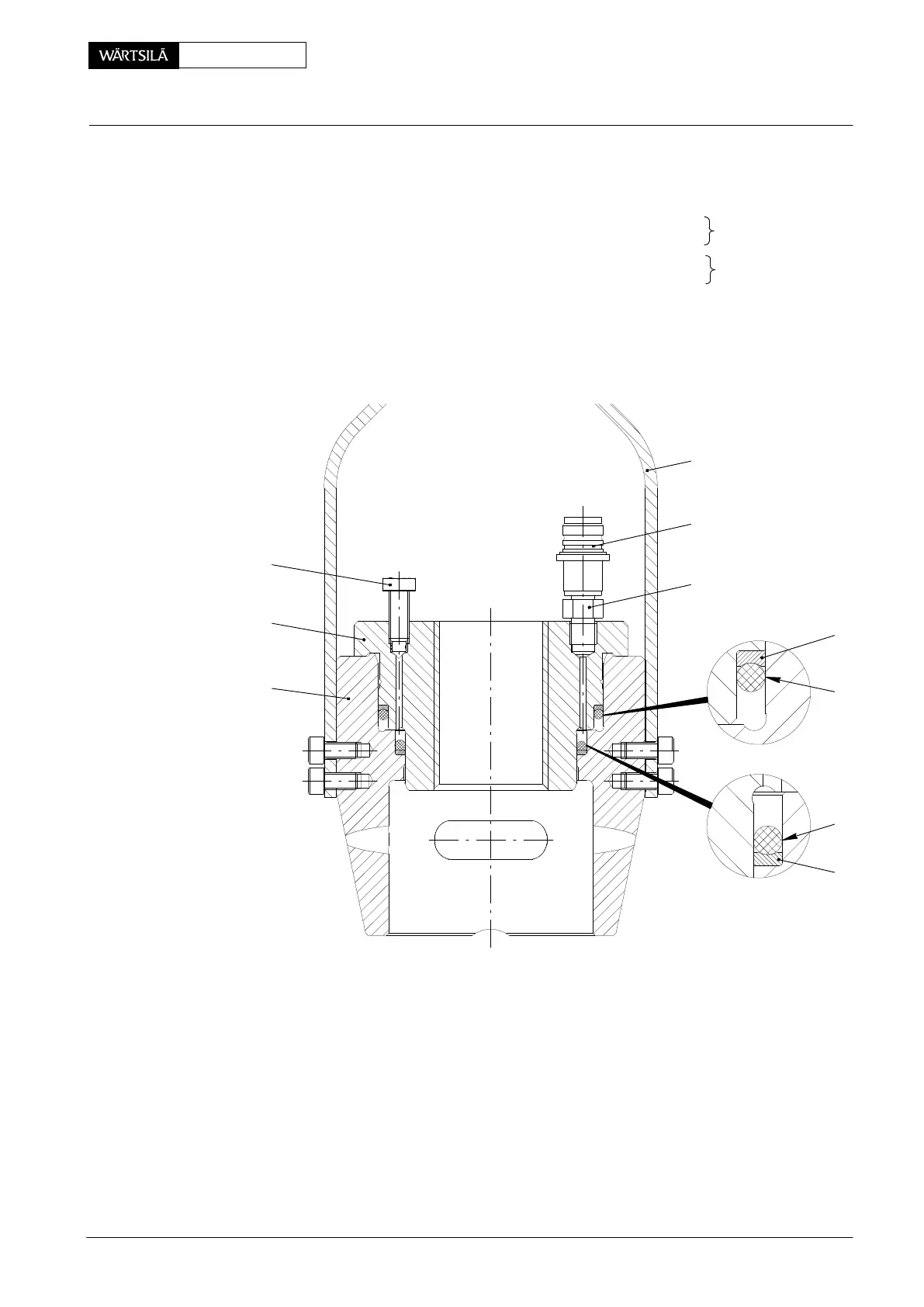

Tool 94215a Pre-tensioning jack
for waisted stud to cylinder cover
1 Piston 6 Back-up ring
O-ring
Sealing ring
2 Cylinder 7
3 Vent screw 8 Back-up ring
O-ring
Sealing ring
4 Adapter 9
5 Connection piece 10 Holder
013.472/05
3
1
2
5
4
10
6
7
9
8
2010
Hydraulic Pre-tensioning Jacks: Storing, Servicing and Maintenance
