Wartsila RT-flex50-D - Removal of Bearing Shells

Maintenance
5552−2/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
3/ 11

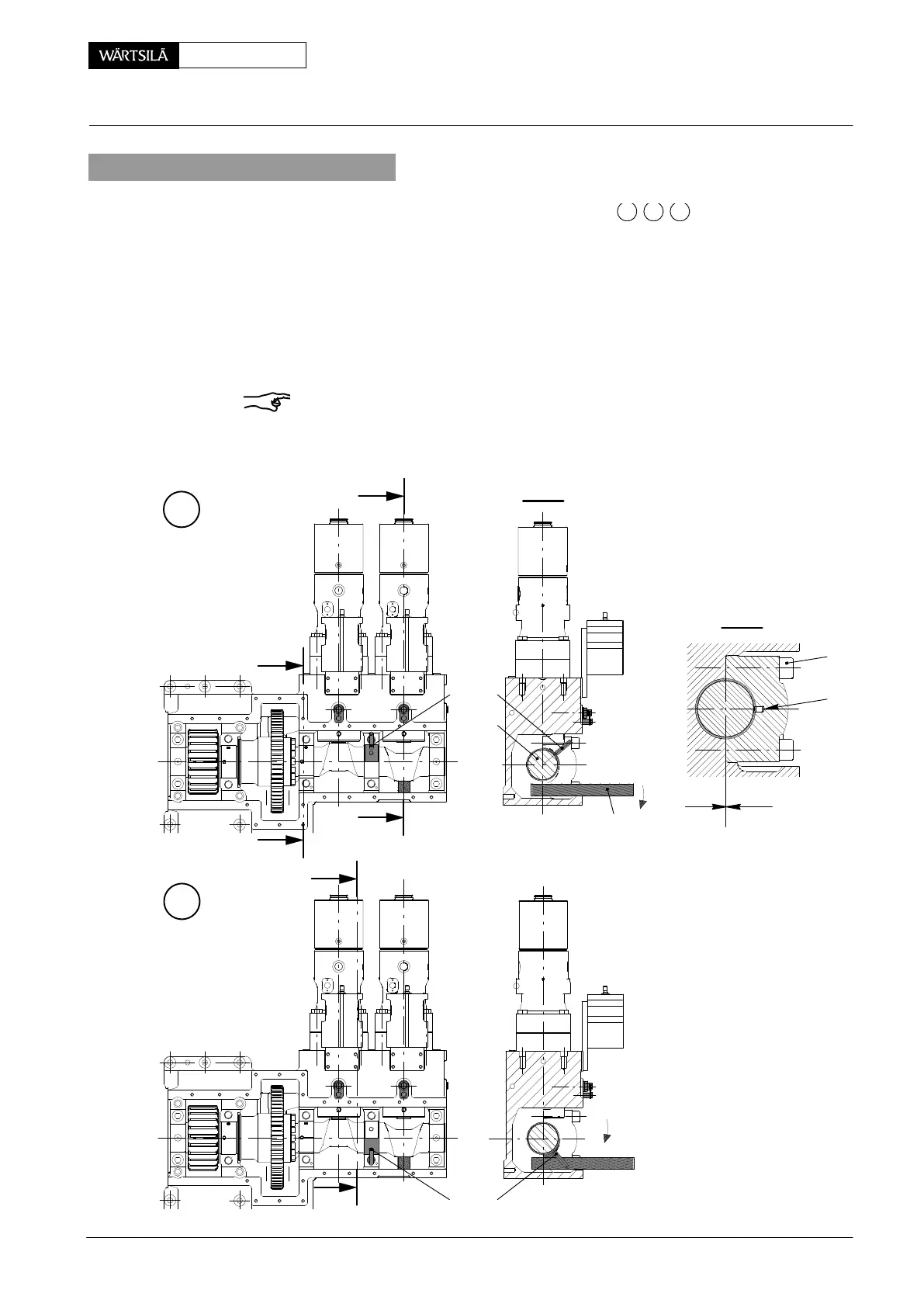

3. Removal of bearing shells
⇒ Loosen waisted screws 7 to bearings No.
2
3
4
and remove the bearing
covers (Fig. ’C’).
⇒ Place assembly template 94567 on an upper bearing shell (Fig. ’D’).
⇒ Press camshaft 12 accordingly by means of wooden underlay ’HU’ so that the
upper bearing shell can be turned downwards with the assembly template at
the same time (Fig. ’E’).
⇒ Remove the assembly template, the relevant bearing shell and then all other
ones.
Remark: Mark bearing shells after removal!
D
012.982/
05
012.983/05
I
I
II
II
I
I
X
94567
HU
I - I
II-II
7
1
7
94567
E
12
2010
S
upply Unit: Removal and Fitting of Camshaft and Bearing Shells
