Maintenance9223−1/A1 RT-flex50-D
Wärtsilä Switzerland Ltd
8/ 22

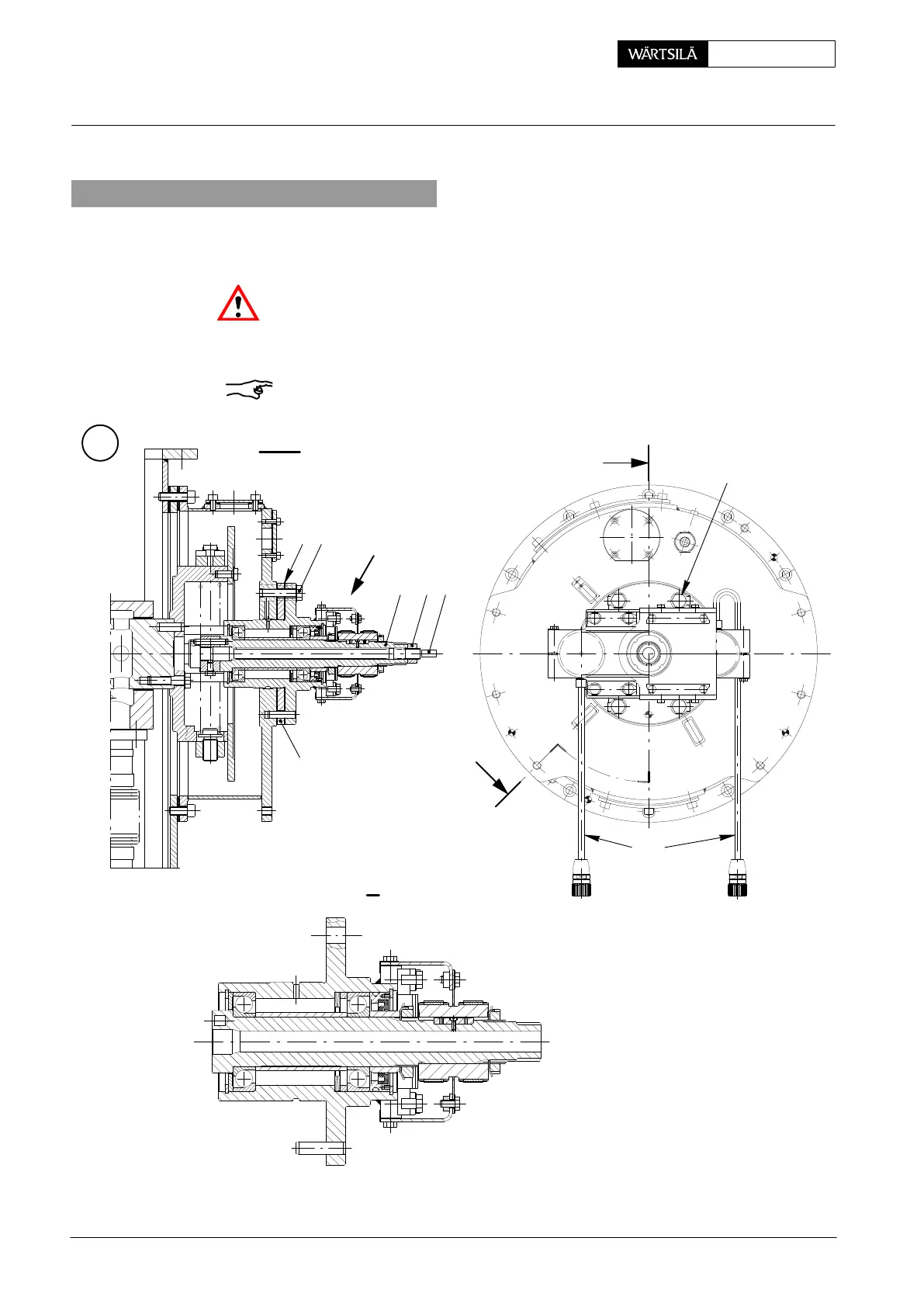

4. Removal of crank angle sensor drive
⇒ Preparation according to paragraph 1.1.
⇒ Loosen and remove nuts 4.
Attention! When loosening nut 4 hold up shaft 5 by means of an open end span-
ner AF27!
⇒ Remove screws 21 and withdraw the crank angle sensor from the waisted
screw 20 (view II).
Remark: Do not unscrew adjusting disc 23.
008.736/01
008.735/01
008.734/01
K
I
I
22
21
54
20
23
21
II
I - I
II
SK
2011
C
rank Angle Sensor Unit: Dismantling, Assembling and Adjusting
